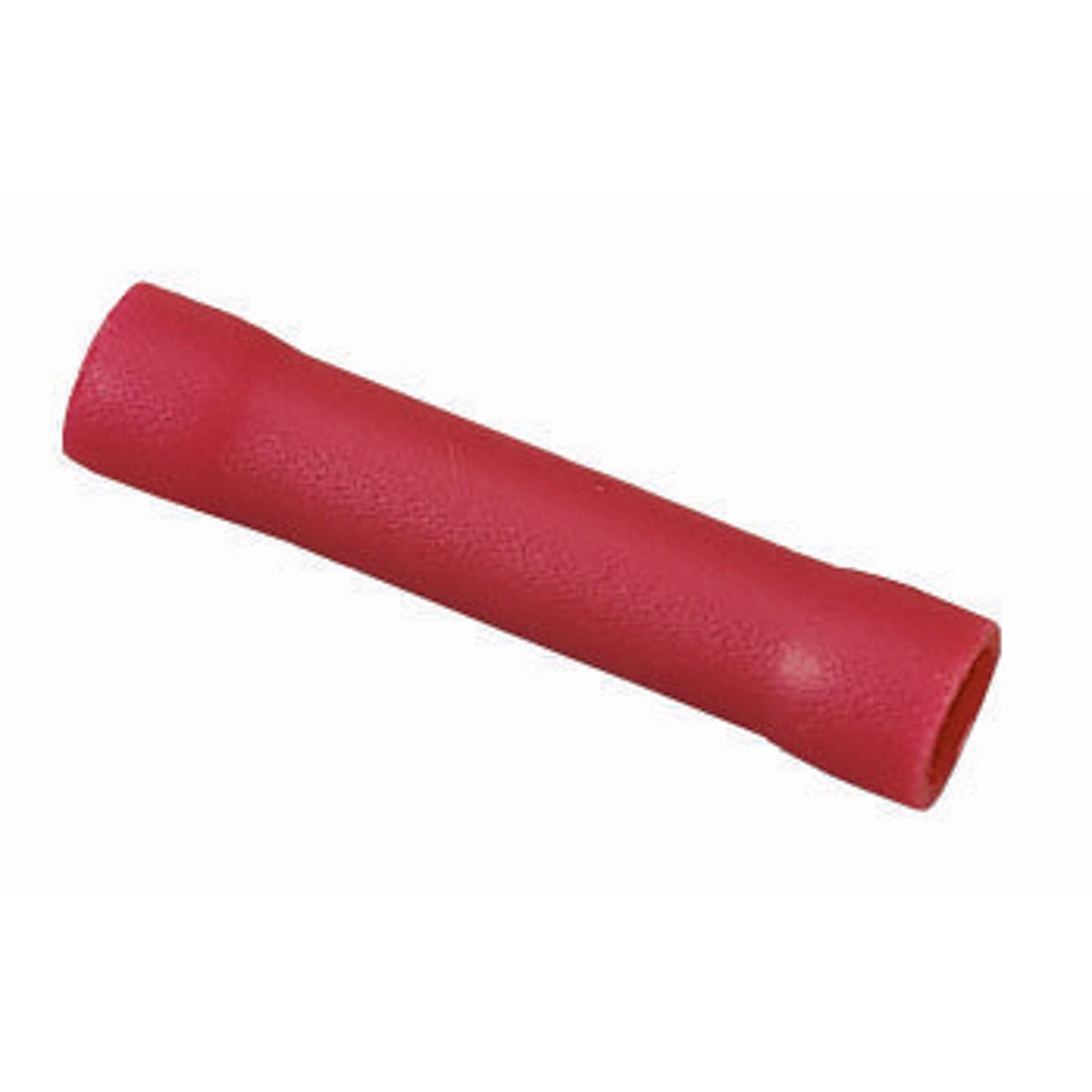

Ideal 83-9281 Splice Terminal Vinyl Butt 22 to 18 AWG

Brand: IDEAL
SKU: 83-9281
Availability: In Stock

Ships same day if ordered by 12 pm
$35.76
$35.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The IDEAL 83-9281 splice terminal is a vinyl butt connector designed for 22 to 18 AWG wires. It features tin-plated brass construction for corrosion resistance and butted seams to prevent splitting. Internal barrel serrations grip wires tightly, resisting pull-out and reducing electrical resistance. The shouldered barrel insulation helps with proper crimping.

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl butt splice terminal ensures secure and corrosion-resistant connections for electrical systems, with easy wire entry and color-coded insulation for identification.

Product Information

Standard Information

  • Brand: IDEAL
  • Manufacturer Part Number: 83-9281
  • Country of Origin: Taiwan, Province Of China
Technical Specifications
Catalog Number
83-9281
Manufacturer
Ideal Industries
Brand
Ideal
Country of Origin
Taiwan, Province Of China
Made in USA
No
Finish
Tin Plated
Material
Brass
Special Features
Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation
Standard
CUL Listed, RoHS
Item Type
Vinyl Butt
Size
22 To 18
Temperature Rating
75 DEG C
Voltage Rating
600 V Max
Type
Butt
Length
0.986 Inch
Maximum Insulation Diameter
0.157 Inch
Conductor Size
22 to 18 AWG
Insulation Type
Vinyl Insulated
Approval
UL 774A, CUL
IGCC
4669
Termination Method
Crimp
Number of Ports
2
Maximum Rated Voltage
600 V
Maximum Temperature (C)
75°C
Maximum Wire Gauge
22 AWG
Minimum Wire Gauge
18 AWG
Stud Size
N/A
Terminal Type
Butt
Wire Type
Solid, Stranded
