Ideal 83-9021 splice terminal bare butt 12 to 10 awg

Product Description

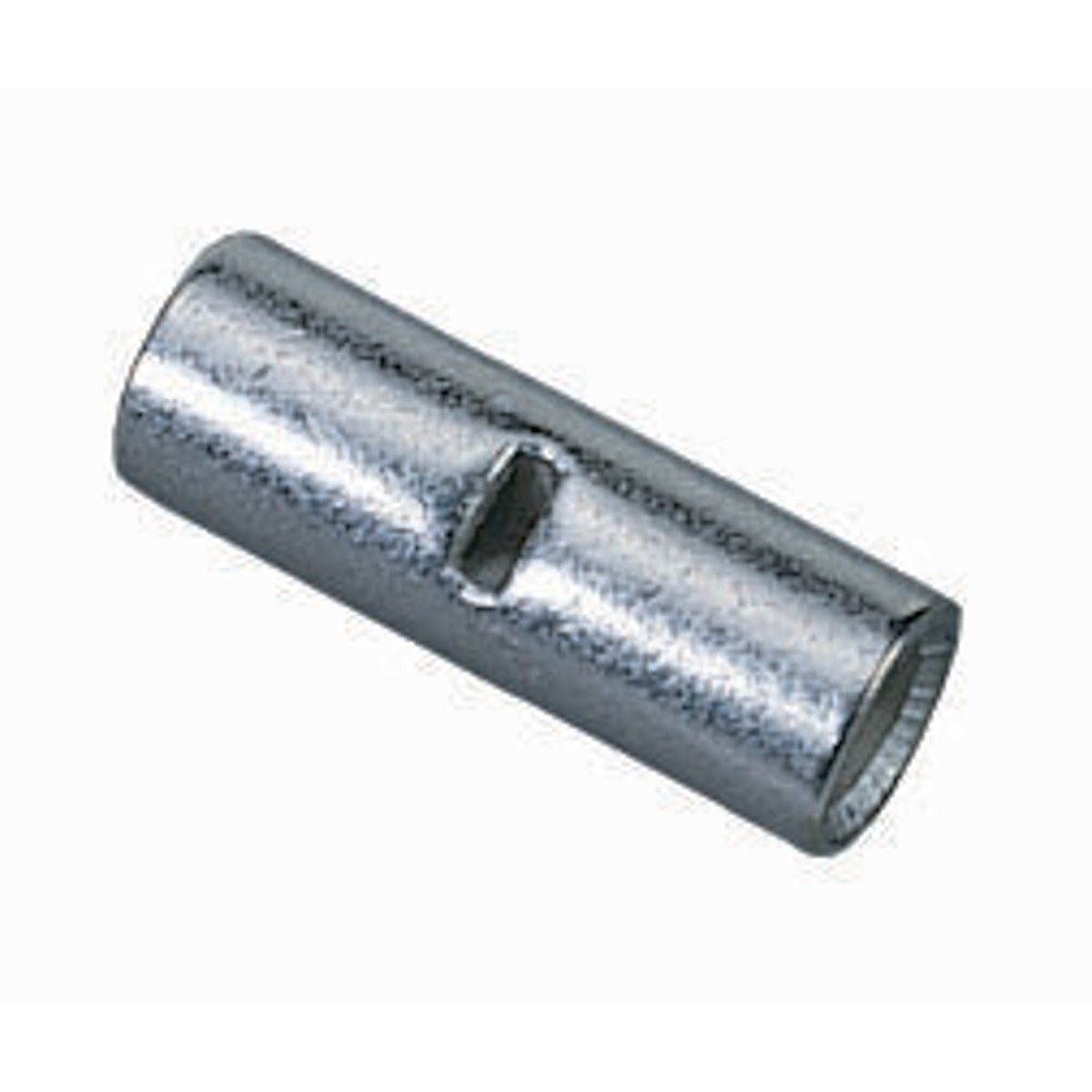

The IDEAL 83-9021 splice terminal is a bare butt connector designed for 12 to 10 AWG wires. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction provides corrosion resistance. The terminal is suitable for electrical systems requiring secure and durable connections.

• Tin-plated brass construction for corrosion resistance
• Brazed or butted seams prevent splitting
• Funnel entry insulators

Product Highlights

This bare butt splice terminal ensures secure wire connections with its durable construction and corrosion resistance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9021
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9021
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Finish: Tin-plated
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation
• Standard: RoHS
• Item Type: Bare Butt
• Size: 12 To 10
• Temperature Rating: 105 DEG C
• Voltage Rating: 600 V Max
• Insulated: No
