Ideal 83-8011 Bullet Disconnect Vinyl Insulated 16 - 14 AWG

Product Description

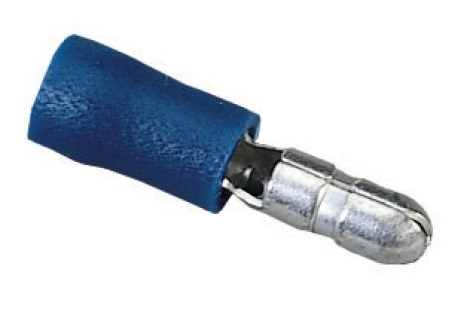

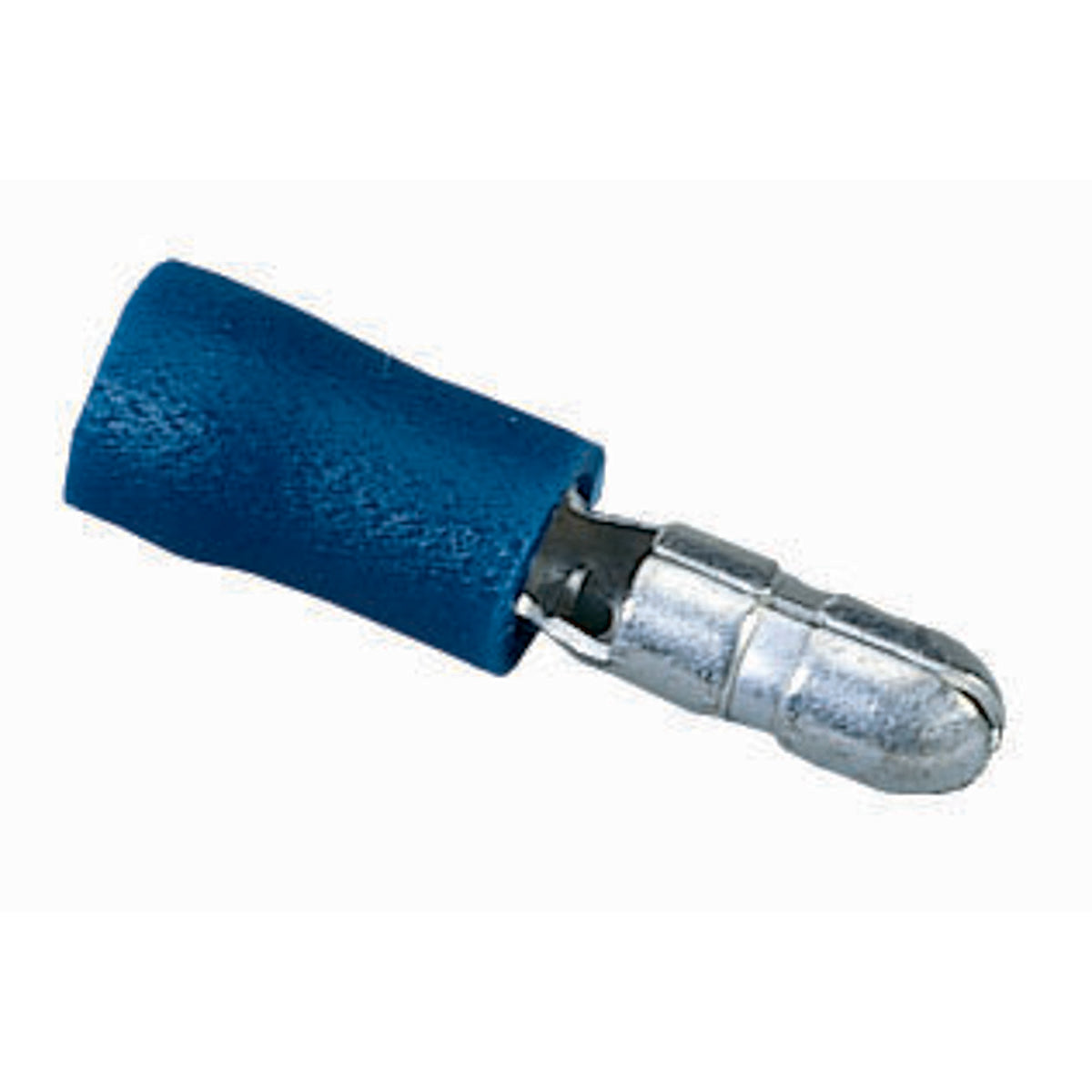

The IDEAL 83-8011 bullet disconnect is a vinyl insulated terminal designed for electrical systems. It accommodates wire sizes from 16 to 14 AWG and has a voltage rating of 300V. The butted seam construction prevents splitting under maximum pressure, and internal barrel serrations grip wires tightly.

• Butted seam-construction prevents splitting under maximum pressure.
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.
• Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support.

Product Highlights

This IDEAL bullet disconnect offers secure wire connections and corrosion resistance for a variety of electrical applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-8011
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-8011
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Special Features: Temperature Rating: 75 DEG C
• Standard: C/US UL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 V
• Wire Size: 16 - 14 AWG
• Type: Bullet Style
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Temperature Rating: 75 Deg C
• Approval: UL 774A, CUL
• Material: Tin-Plated Brass
• Wire Insulation Diameter: 0.185 Inch
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 300V
• Maximum Temperature: 167°F (75°C)
• Number of Poles: 1
• Stud Size: N/A
• Terminal Type: Bullet
• Wire Type: Solid, Stranded
• Insulated: Yes
• ADI Part Number: IL-838011
• Manufacturer Part Number: 83-8011
• Product Name: Vinyl Insulated Bullet Disconnect, 16-14AWG, Clam of 25
• Product Type: Connector
