Ideal 83-7221 Spade Terminal Vinyl Spade 12 - 10 AWG 10 IN

Product Description

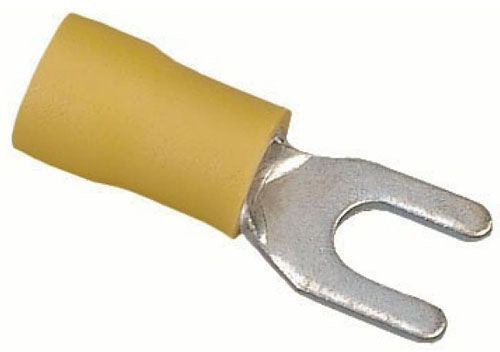

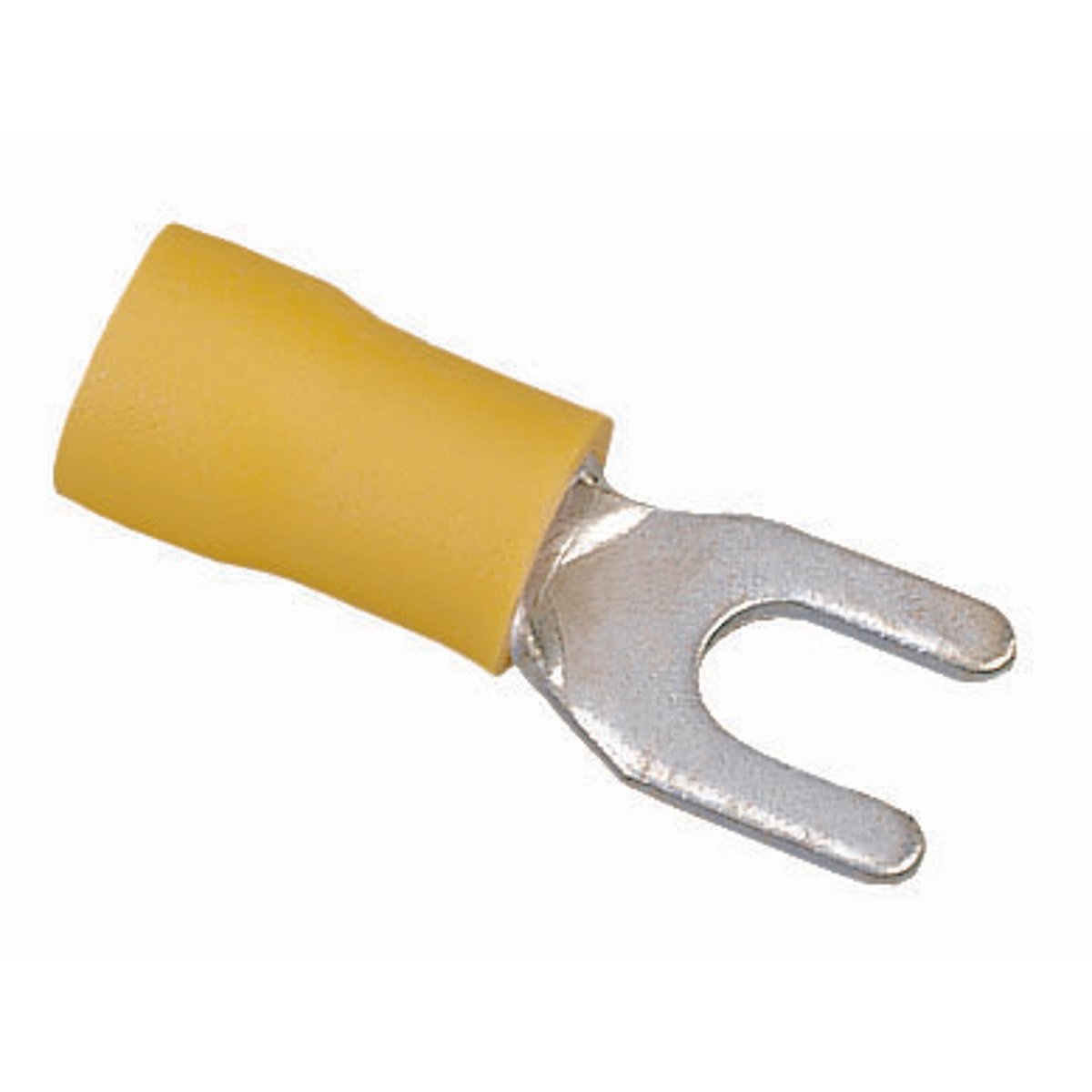

The IDEAL 83-7221 spade terminal is a vinyl insulated spade designed for 12 to 10 AWG wires and a stud size of 10. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction ensures corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated spade terminal ensures secure wire connections with corrosion resistance and easy crimping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7221
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7221
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 10
• Pkg Quantity: 25.0
• Temperature Rating: 75 Deg C
• Approval: UL, CUL
• Voltage Rating: 600 V
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 75°C
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: Yes
• Finish: Tin-Plated
• Product Type: Spade Terminals
• Wire Range: 12-10 AWG
