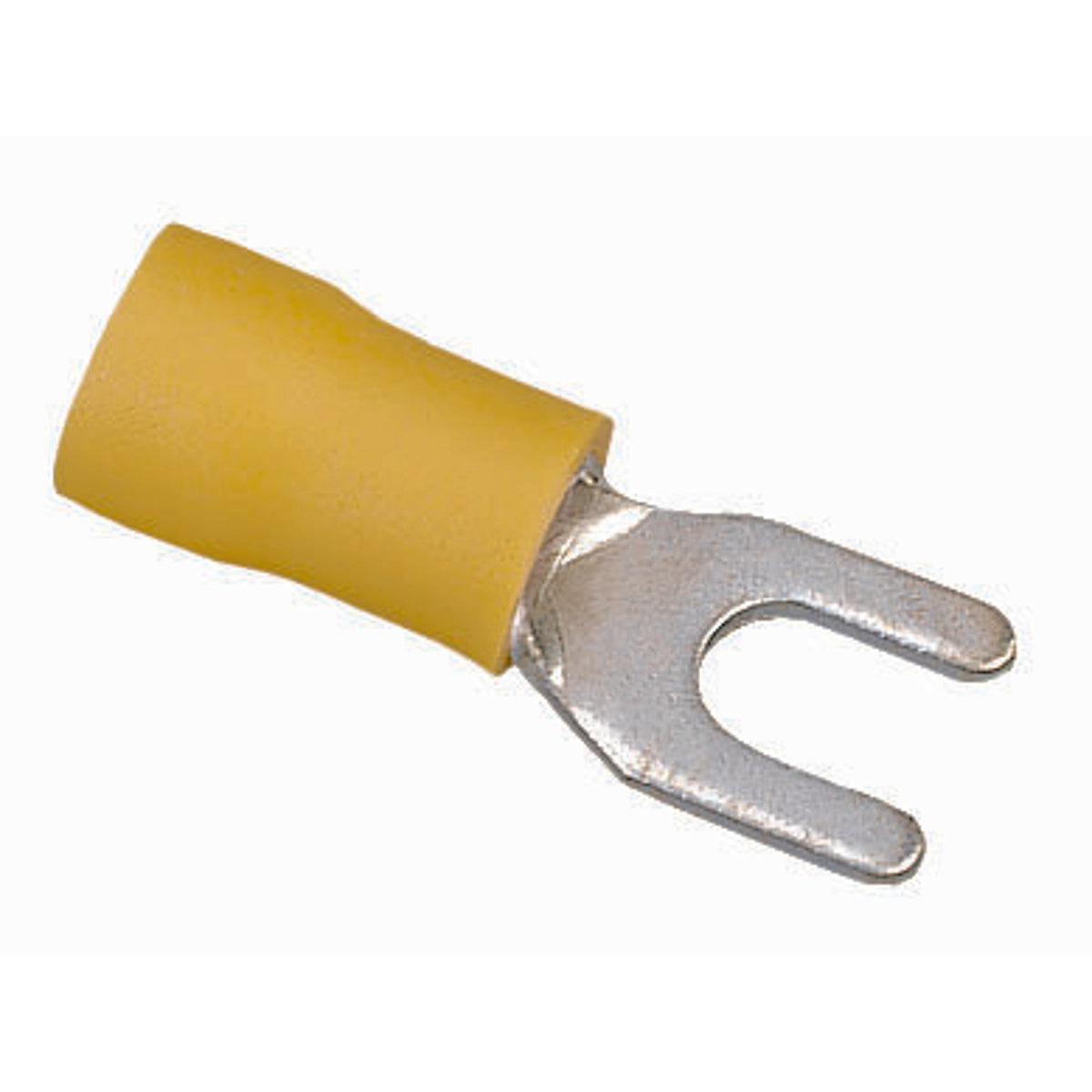

Ideal 83-7211 Spade Terminal Vinyl Spade 12 - 10 AWG 8 IN

Product Description

The IDEAL 83-7211 spade terminal is a vinyl spade designed for cable sizes 12 to 10 AWG and a stud size of 8 IN. It features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction ensures corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated spade terminal is color-coded for easy identification and has a shouldered barrel for proper crimping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7211
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7211
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 8 IN
• Voltage: 600 Vac
• Tongue Width: 0.283 In
• Overall Length: 1.004 In
• Barrel Style: Beveled/Butted Seam
• Barrel Length: 0.512 In
• Temperature Rating: 75 Deg C
• Conductor Size: 12 to 10 AWG
