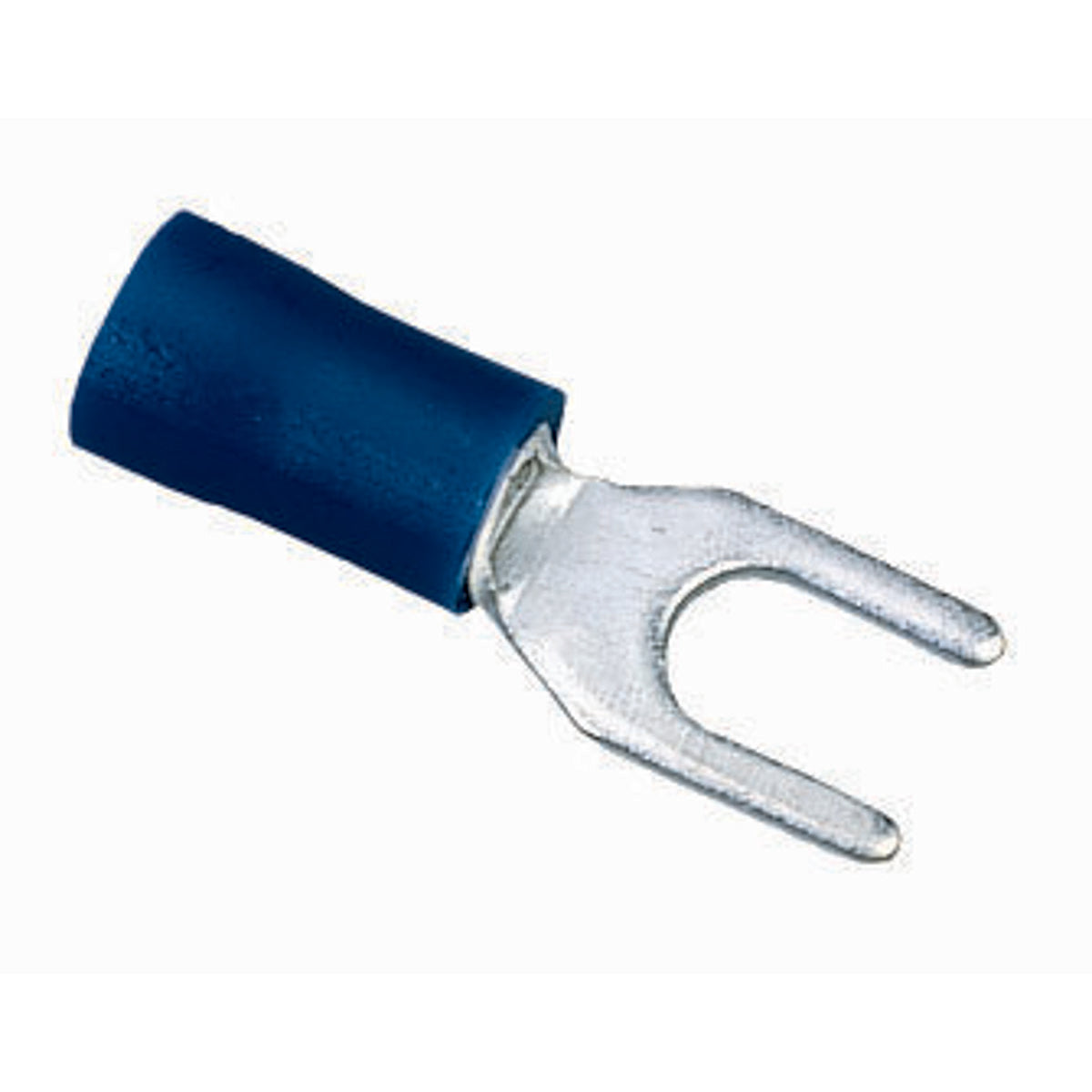

Ideal 83-7171 Spade Terminal Vinyl Spade 16 - 14 AWG Stud Size: 10 IN

Product Description

The IDEAL 83-7171 spade terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. It is constructed from tin-plated brass for corrosion resistance. The shouldered barrel insulation quickly positions the terminal for proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated spade terminal is color-coded for easy identification and has an expanded insulation entry that accommodates a wide variety of insulation diameters.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7171
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7171
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Type: Beveled, Funnel Entry
• Temperature Rating: 75 Deg C
• Approval: UL, CUL
• Wire Insulation Diameter: 0.177 Inch
• Voltage Rating: 600 VAC
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Type: Solid, Stranded
• Insulator Material: Vinyl
• Terminal Material: Brass
• Finish: Tin-Plated
• Product Type: Spade Terminals
• Wire Range: 16-14 AWG
• Barrel Size: 0.394 in L
• Barrel Type: Beveled/Butted Seam
• Conductor Size: 16 to 14 AWG
• Overall Length: 0.827 in
• Tongue Size: 0.366 in W
• Conductor Area CSA: 2.5mm²
• Stud Size - Metric: M5
• Stud Size - Imperial: #10
• Insulator Colour: Blue
• SVHC: No SVHC (08-Jul-2021)
