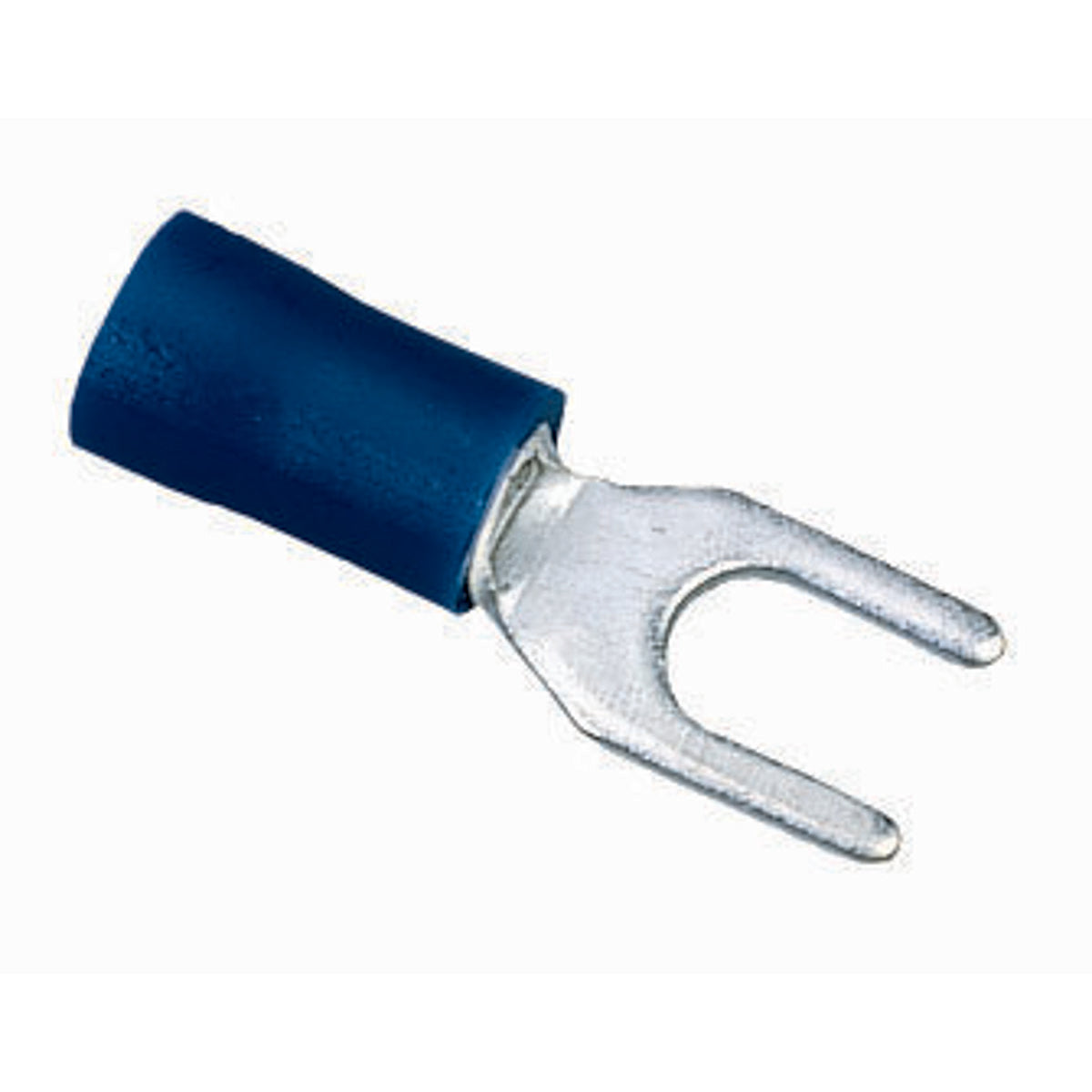

Ideal 83-7171 Spade Terminal Vinyl Spade 16 - 14 AWG Stud Size: 10 IN

Product Description

The IDEAL 83-7171 spade terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction provides corrosion resistance. It is suitable for electrical systems and is color-coded for easy identification.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

The IDEAL 83-7171 spade terminal ensures secure connections with its robust design and corrosion-resistant material.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7171
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7171
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 10
• Type: Beveled, Funnel Entry
• Temperature Rating: 75 Deg C
• Approval: UL, CUL
• Wire Insulation Diameter: 0.177 Inch
• Voltage Rating: 600 V (Maximum)
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Maximum Wire Gauge: 16 to 14 AWG
• Wire Type: Solid, Stranded
• Insulated: Yes
• Barrel Size: 0.394 in L
• Barrel Type: Beveled/Butted Seam
• Conductor Size: 16 to 14 AWG
• Overall Length: 0.827 in
• Tongue Size: 0.366 in W
