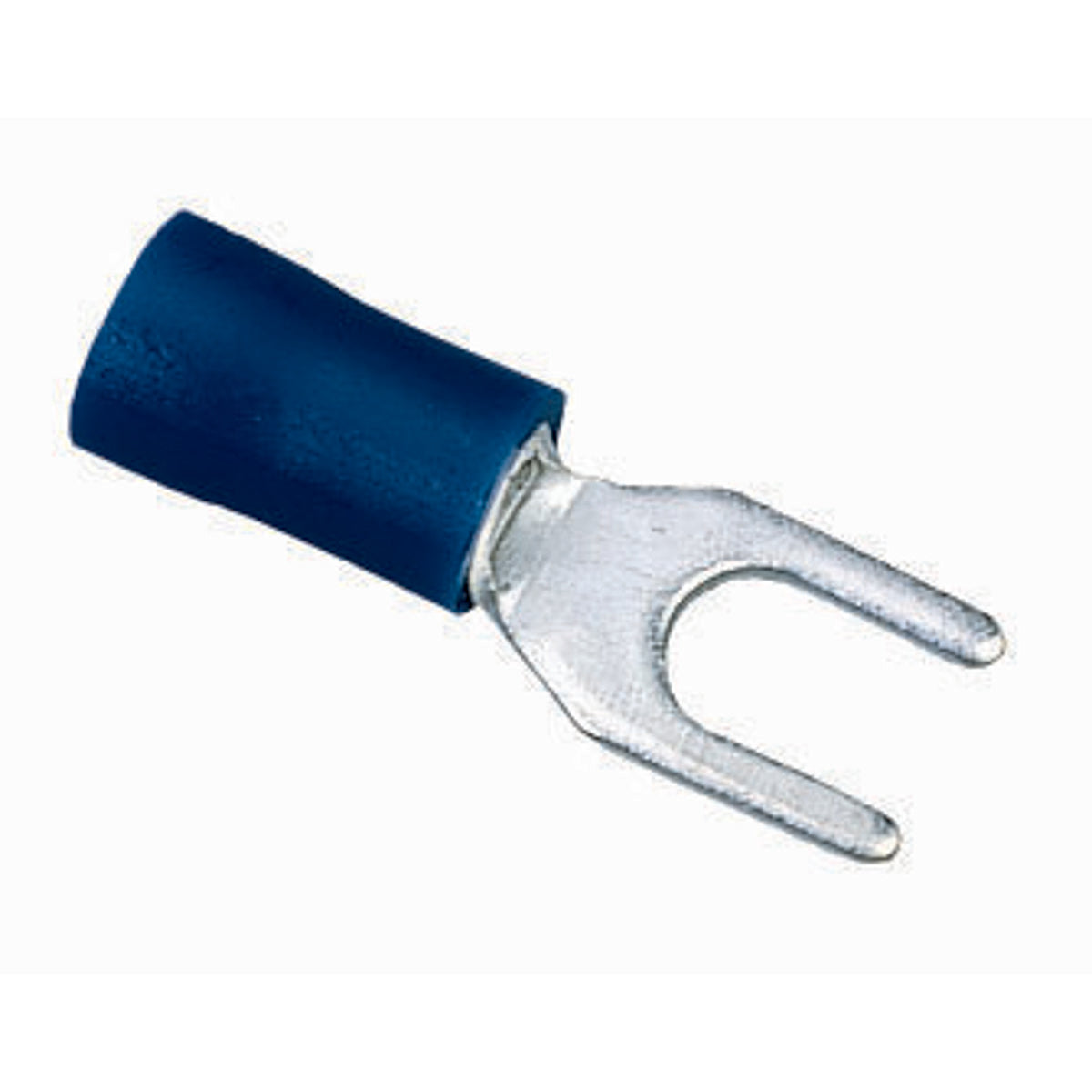

Ideal 83-7151 Spade Terminal Vinyl Spade 16 - 14 AWG Stud Size: 6 IN

Product Description

The IDEAL 83-7151 spade terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction provides corrosion resistance. Shouldered barrel insulation quickly positions the terminal for proper crimping. Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated spade terminal is color-coded for easy identification and UL listed. Suitable for electrical systems requiring secure and corrosion-resistant connections.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7151
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7151
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 6
• MPN: 83-7151
• ECCN: EAR99
• UNSPSC: 39121405
• Finish: Tin-Plated
• Insulation Material: Vinyl
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 167°F (75°C)
• Maximum Wire Gauge: 16 to 14 AWG
• Terminal Type: Spade/Fork
• Wire Type: Solid, Stranded
• ADI Part Number: IL-837151
• Brand Name: IDEAL Industries
• Package Length: 3.300000000
• Packaged Quantity: 25
• Package Type: Piece
• Width: 0.2"
• Length: 0.8"
• Environmental Certification: UL
• Environmentally Friendly: Yes
• Family Series: IDEAL Industries Terminals
• Description: Term Vinyl,#6 Spade,16-14AWG,PK/25
• Wire Size Range: 16-14 AWG
• Insulated: Insulated
• Approvals: UL
• Net Weight: 0.004 lbs
• Gross Weight: 0.1 lbs
