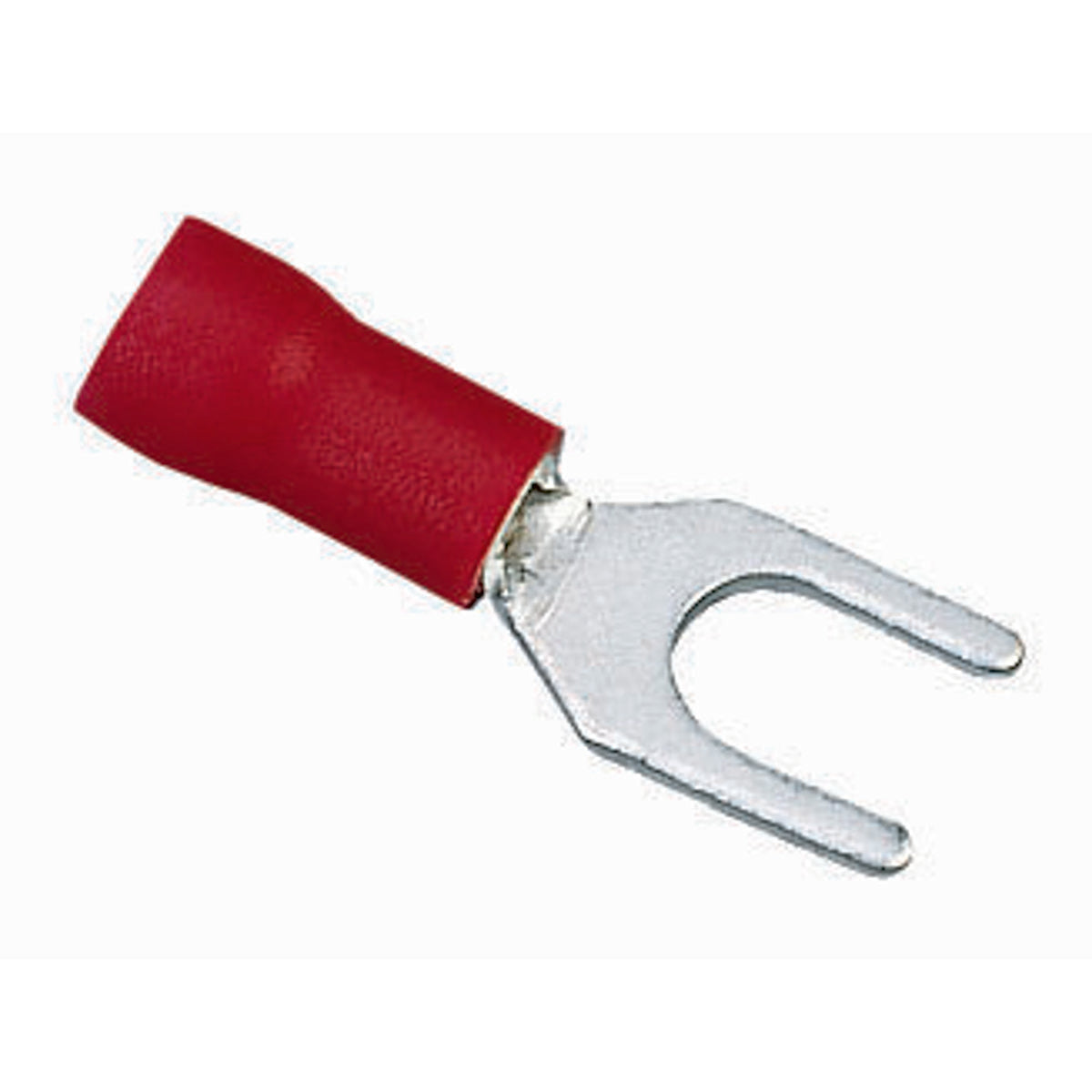

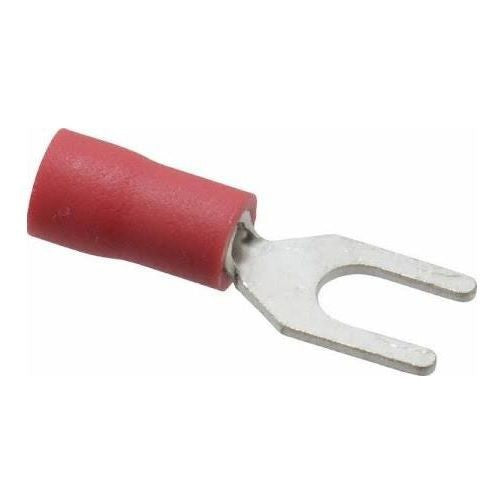

Ideal 83-7121 Spade Terminal Vinyl Spade 22 - 18 AWG 8 IN

Product Description

The IDEAL 83-7121 spade terminal is a vinyl spade designed for cable sizes 22 to 18 AWG and a stud size of 8 inches. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. The tin-plated brass construction ensures corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated spade terminal ensures secure wire connections and corrosion resistance for electrical systems.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7121
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7121
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 22 - 18 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Spade
• Stud Size: 8
• Pkg Quantity: 25.0
• IGCC: 4532
• Type: Vinyl Spade
• Vendor: 783250
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: Yes
• Overall Length: 0.827 in
• Temperature Rating: 75 deg C
• Voltage Rating: 600 VAC
• Standard & Approvals: UL, cUL Listed, RoHS Compliant
• Conductor Size: 22 to 18 AWG
• Barrel Size: 0.394 in L
• Barrel Style: Beveled
• Tongue Size: 0.283 in W
