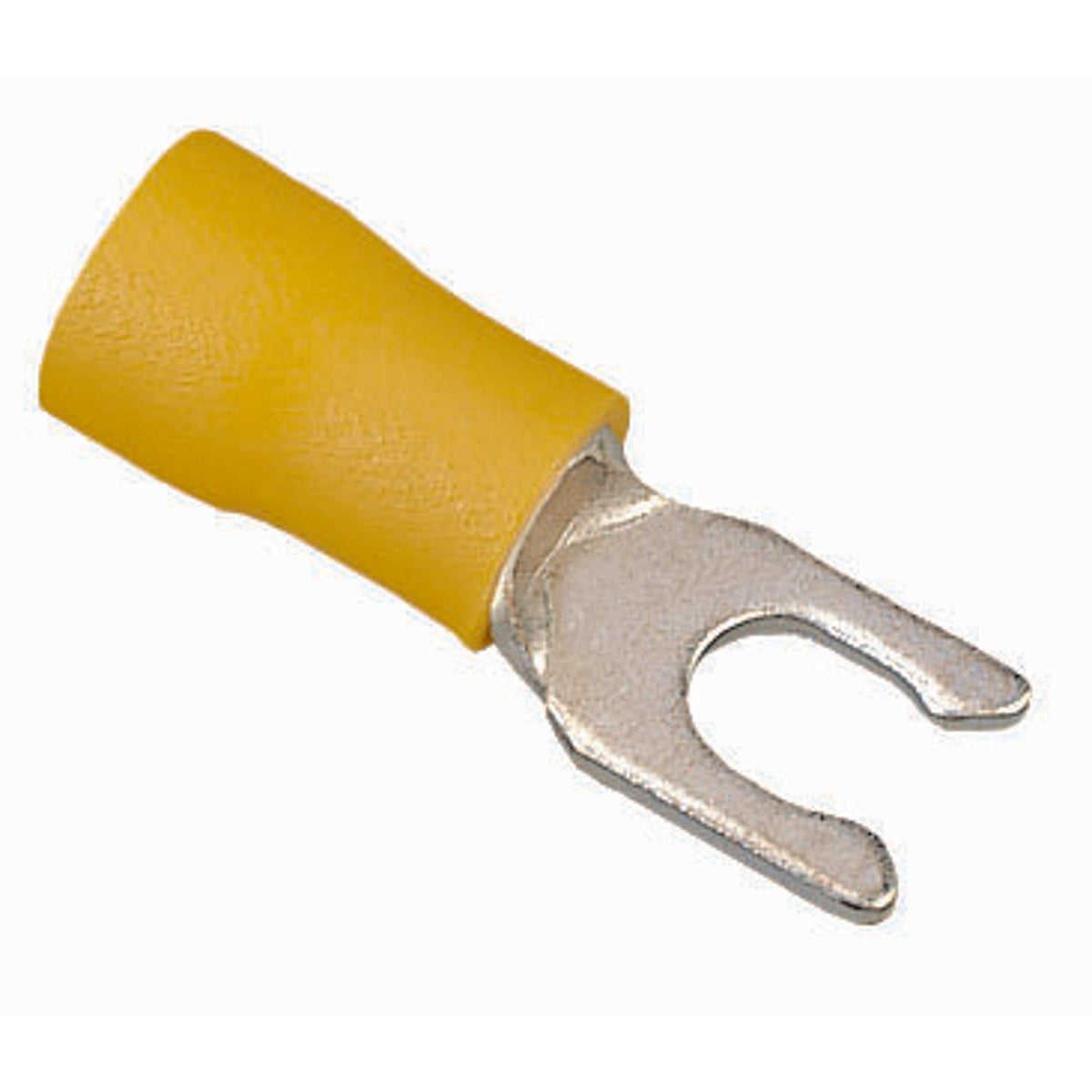

Ideal 83-7091 Spade Terminal Vinyl Snap Spade Cable Size 12 - 10 AWG Stud Size 10

Product Description

The Ideal 83-7091 spade terminal is designed for reliable electrical connections in various applications. It is suitable for cable sizes 12 to 10 AWG and features a stud size of 10 inches. This product incorporates a butted seam construction to resist splitting under maximum pressure and has internal barrel serrations that grip wires tightly, reducing pull-out and electrical resistance.

• Constructed from tin-plated brass for enhanced corrosion resistance.
• Shouldered barrel insulation ensures accurate positioning for easy crimping.
• Expanded insulation entry supports a wide variety of insulation diameters.

Product Highlights

The Ideal line of crimp terminals, disconnects, and splices offers a comprehensive solution for any electrical system. Insulated terminals are color-coded for simple identification and packaged for convenient storage.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 83-7091
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Stud Size: 10
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Standards: UL Listed, RoHS
