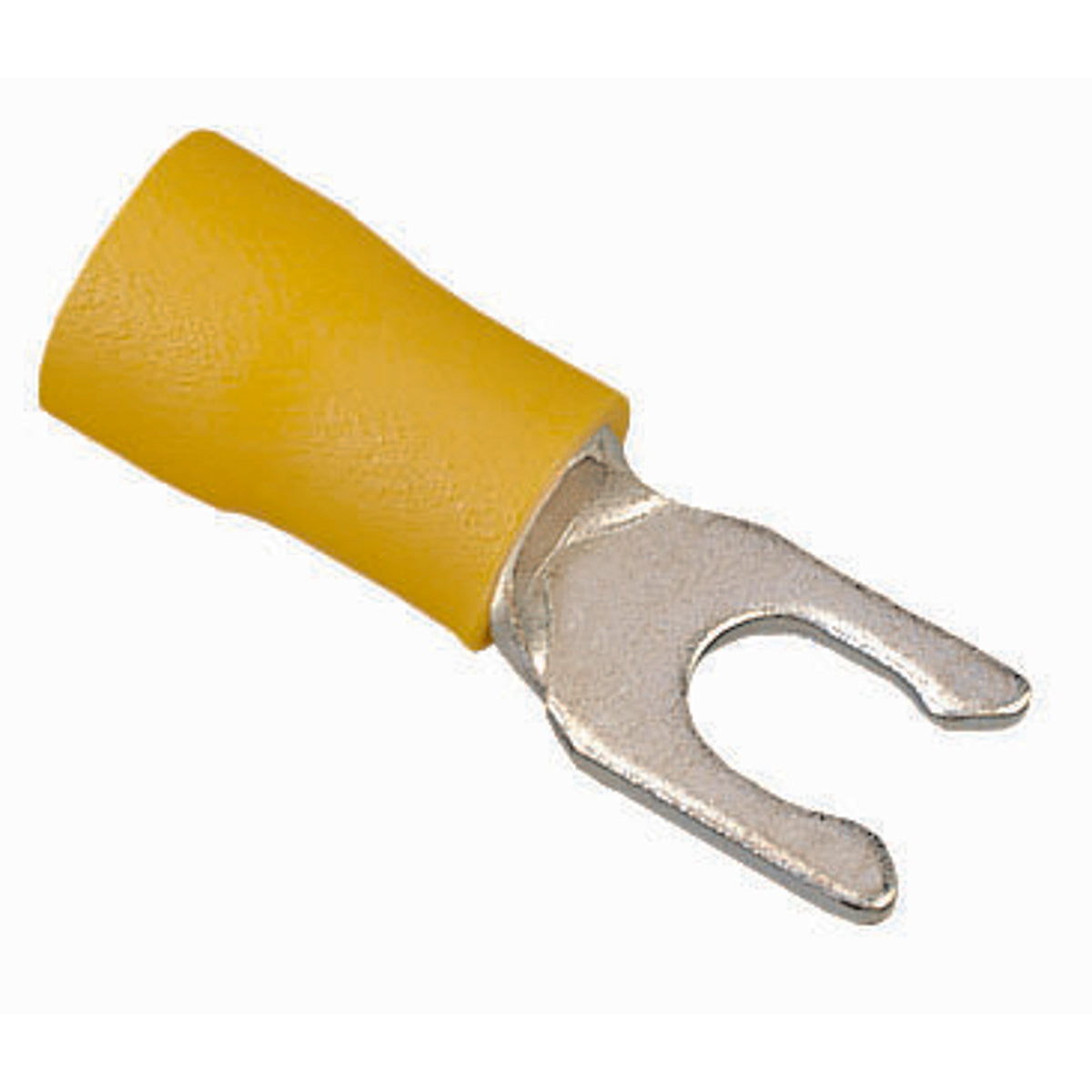

Ideal 83-7091 Spade Terminal Vinyl Snap Spade 12 - 10 AWG Stud Size: 10 IN

Product Description

The IDEAL 83-7091 spade terminal is a vinyl snap spade designed for cable sizes 12 to 10 AWG and a stud size of 10 IN. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction ensures corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated snap spade terminal provides reliable crimp connections and durable, high-temperature performance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7091
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7091
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Snap Spade
• Stud Size: 10
• Type: Beveled, Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Temperature Rating: 75 Deg C
• Approval: UL, CUL
• Wire Insulation Diameter: 0.248 Inch
• Voltage Rating: 600 V (Maximum)
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: Yes
