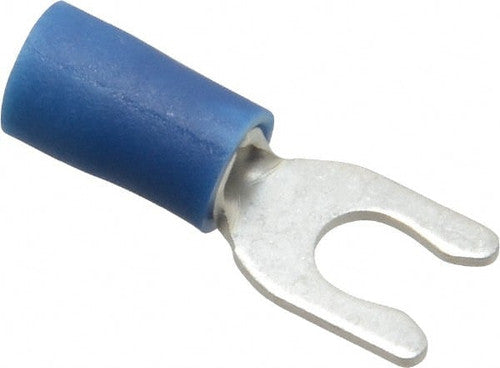

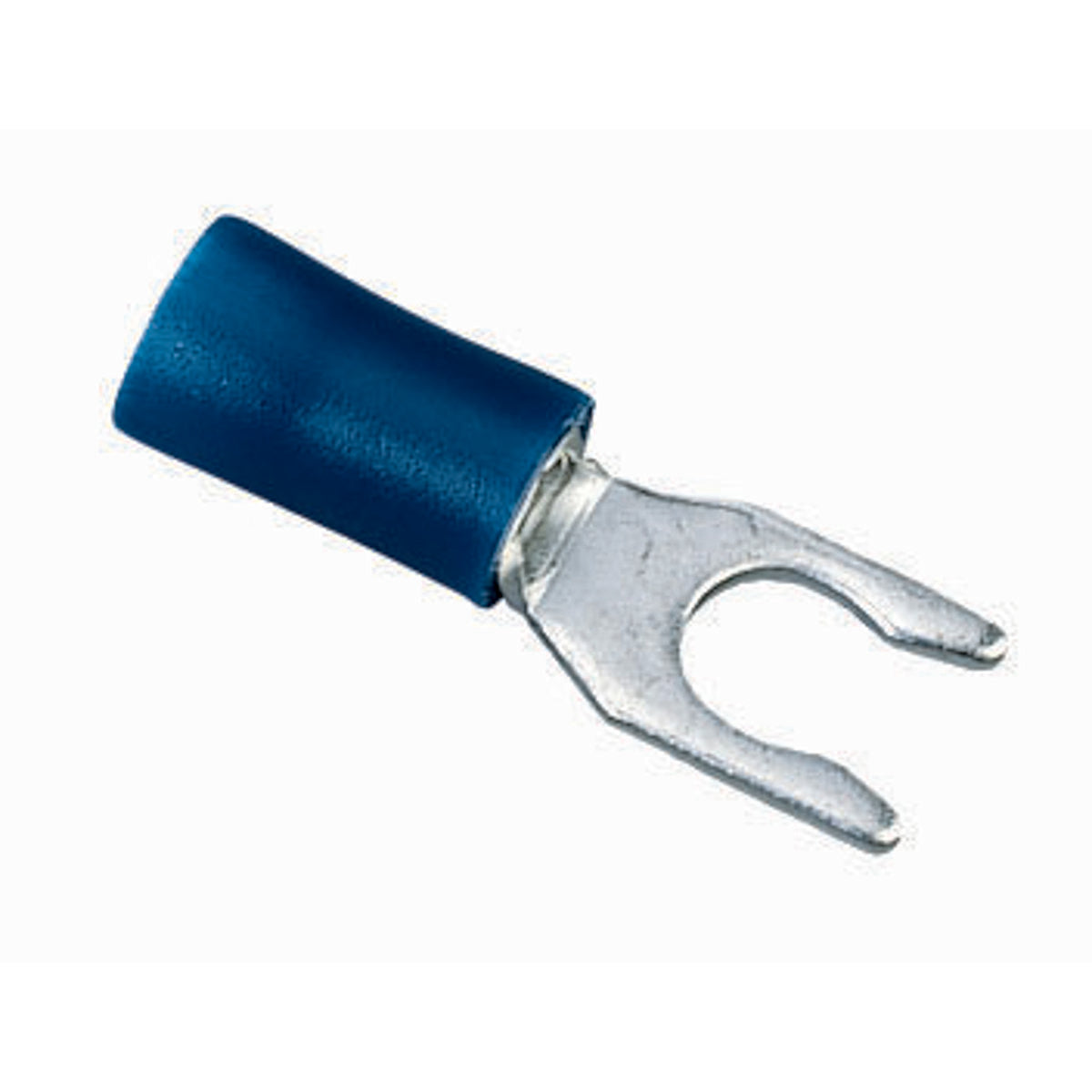

Ideal 83-7061 Spade Terminal Vinyl Snap Spade 16 - 14 AWG Stud Size: 8 IN

Product Description

The IDEAL 83-7061 vinyl snap spade terminal is designed for electrical systems. It features butted seam construction to prevent splitting under pressure and internal barrel serrations to grip wires tightly. The tin-plated brass construction offers corrosion resistance, and the shouldered barrel insulation allows for proper crimping. Designed for 16 - 14 AWG cable and a stud size of 8.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL vinyl snap spade terminal ensures secure wire connections with corrosion resistance and easy crimping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-7061
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-7061
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Snap Spade
• Stud Size: 8
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 16 to 14 AWG
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• Insulated: Yes
• Manufacturer Part #: 83-7061
