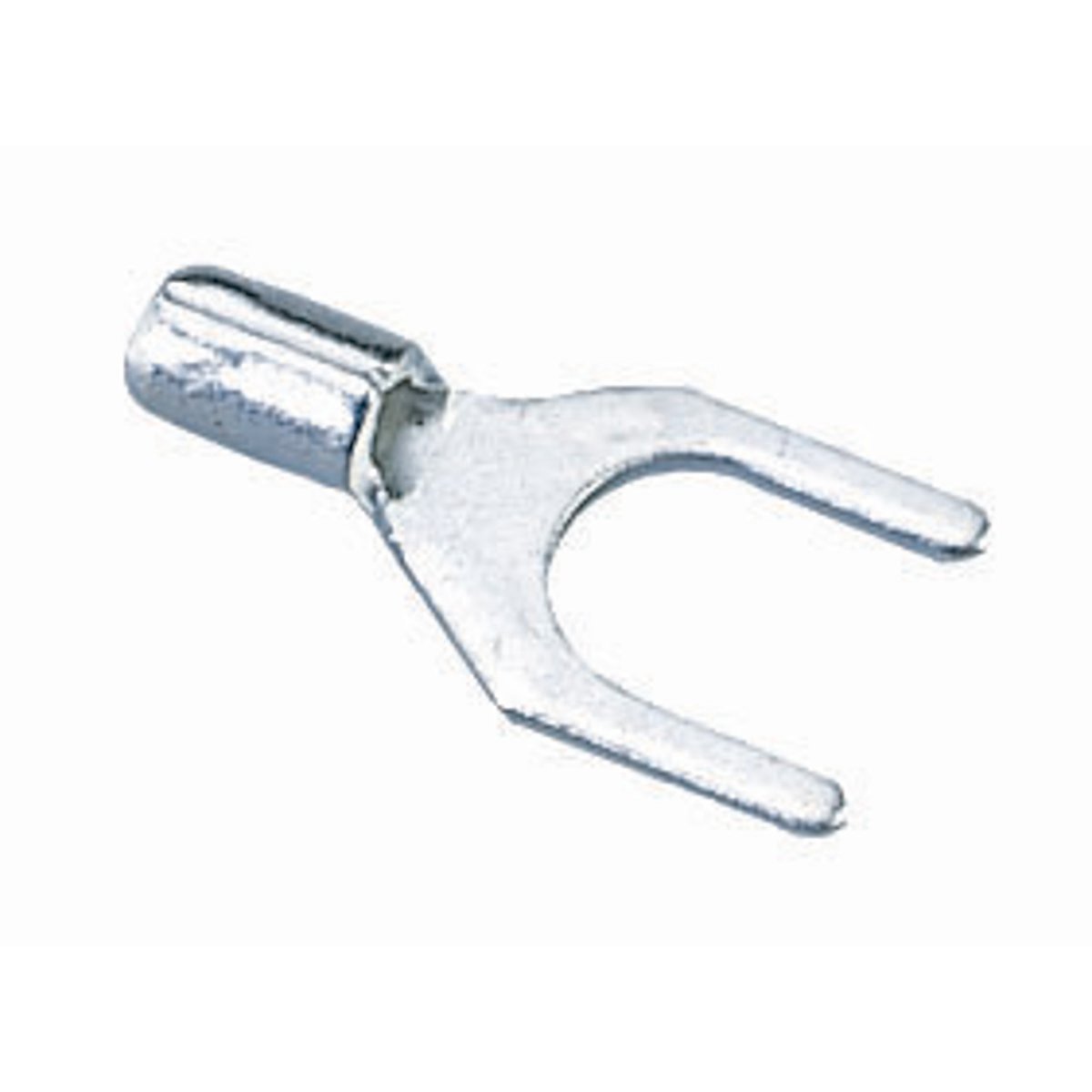

Ideal 83-6221 Spade Terminal Bare Spade 12 - 10 AWG

Product Description

The IDEAL 83-6221 is a spade terminal with butted seam-construction that prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. It is suitable for electrical systems requiring a wire range of 12 - 10 AWG and a stud size of 10 IN.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This non-insulated spade terminal features tin-plated brass construction, shouldered barrel insulation, and expanded insulation entry.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-6221
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-6221
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Non-Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• UPC: 783250489978
• GTIN: 00783250489978
• Item Type: Bare Spade
• Stud Size: #10
• Temperature Rating: 221 deg F
• Tongue Size: 0.354 in W
• Type: Non-Insulated
• Voltage Rating: 600 VAC
• Conductor Size: 12 to 10 AWG
• Barrel Size: 0.236 in L
• Barrel Style: Beveled
• Overall Length: 0.728 in
• Hole Centre to Barrel: 0.276 in
