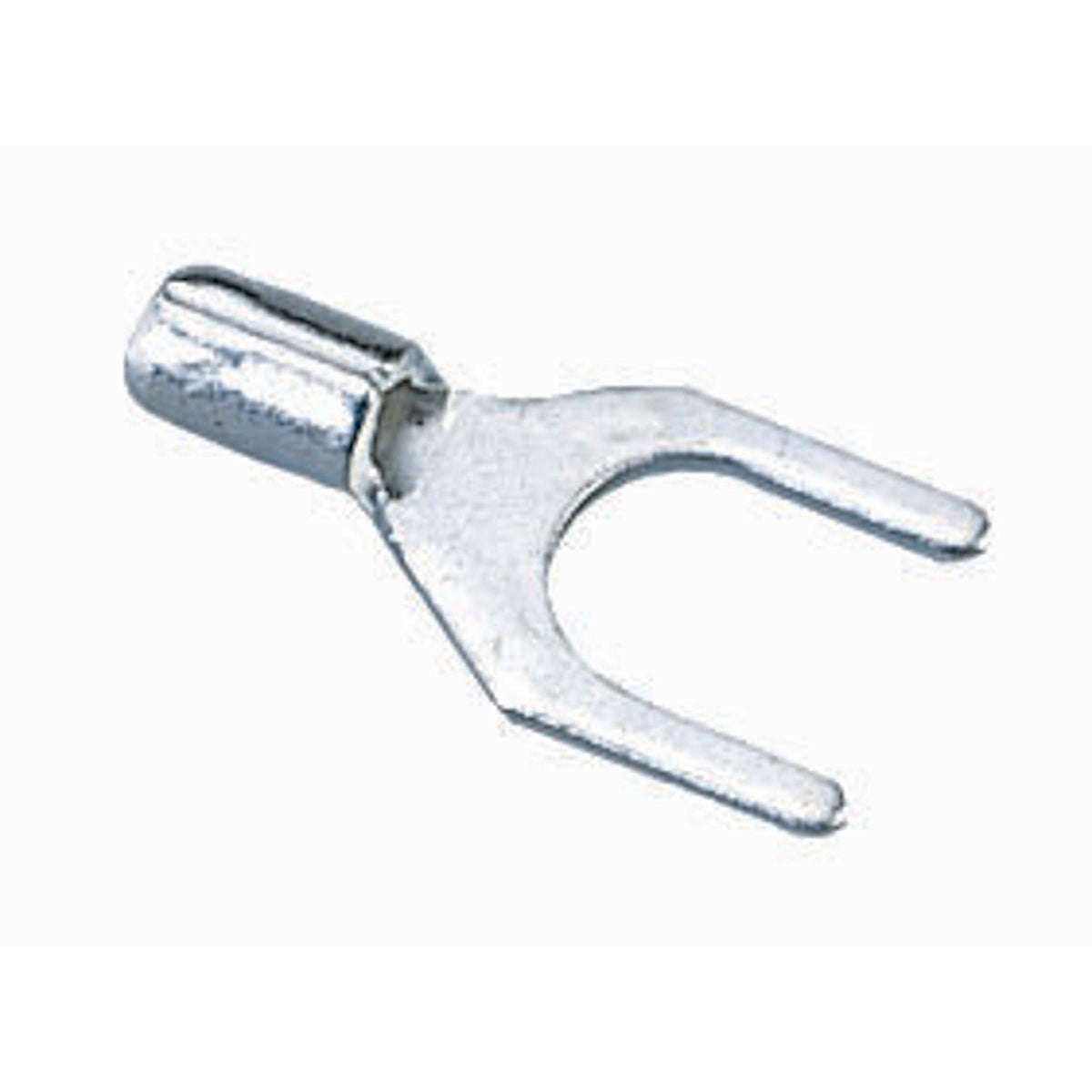

Ideal 83-6211 Spade Terminal Bare Spade 12 - 10 AWG

Product Description

The IDEAL 83-6211 spade terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Constructed of tin-plated brass for corrosion resistance. This non-insulated spade terminal accommodates 600 V/221°F (105°C) ratings.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

Bare spade terminals with internal barrel serrations for secure wire connections and corrosion resistance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-6211
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-6211
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Non-Insulated
• Material: Tin Plated Brass
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• UPC: 783250489961
• GTIN: 00783250489961
• Item Type: Bare Spade
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Stud Size: #8
• Terminal Type: Spade
• Wire Type: Solid, Stranded
• ECCN: EAR99
• UNSPSC: 39121405
• Barrel Size: 0.236
• Barrel Type: Shouldered
• Conductor size: 12 to 10 AWG
• Finish: Tin Plated
• Temperature Rating: 221 deg F
• Tongue Size: 0.354 in W
• Tongue Type: Fork
• Type: Bare/Non Insulated
• Voltage Rating: 600 VAC
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed
