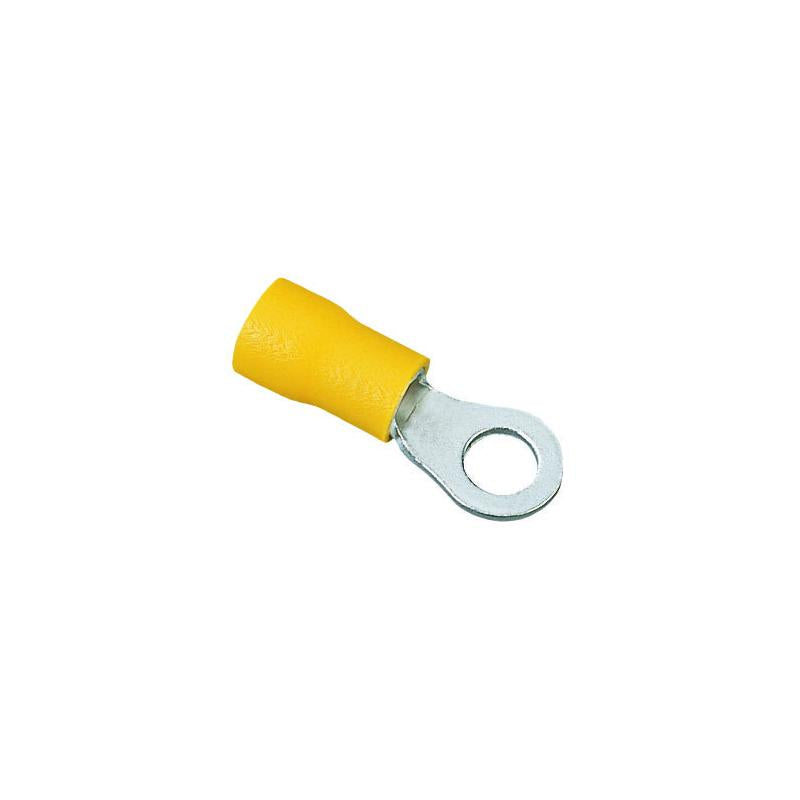

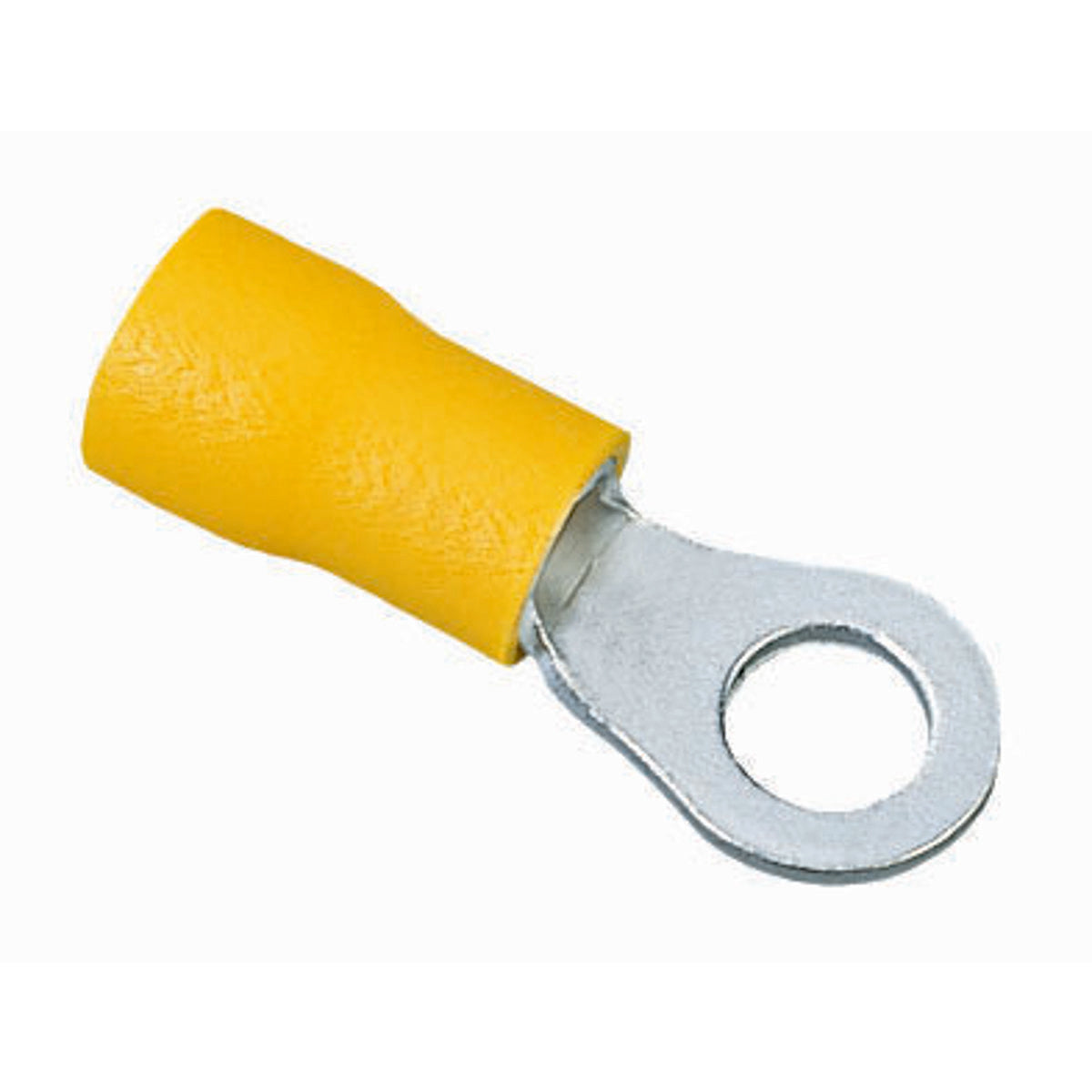

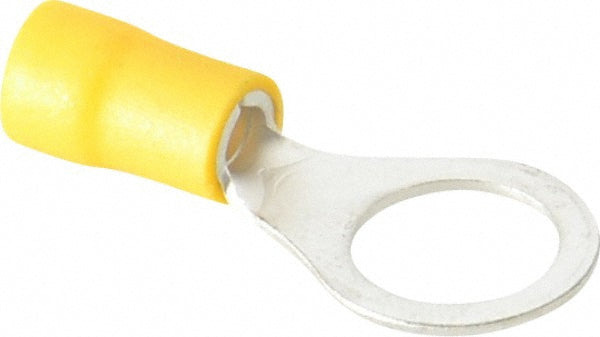

Ideal 83-2371 Ring Terminal Vinyl Ring 12 - 10 AWG 3/8 IN

Product Description

The IDEAL 83-2371 ring terminal is a vinyl insulated ring terminal designed for cable sizes 12 to 10 AWG and a stud size of 3/8 inch. It features butted seam construction to prevent splitting under pressure and internal barrel serrations for a tight wire grip. The tin-plated brass construction ensures corrosion resistance. Suitable for various electrical systems, this ring terminal is UL Listed and RoHS compliant.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

Vinyl insulated ring terminal with tin-plated brass construction, designed for 12-10 AWG wires and 3/8" studs.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2371
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2371
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: PVC
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Ring
• Stud Size: 0.375 in
• Voltage: 600 V
• Barrel Type: Beveled/Butted Seam
• Compatible Wire Size (sq mm): 4.00 to 6.00
• Compatible Wire Size (AWG): 12 to 10
• Stud Size (mm): 9.53
• Insulation Material: Vinyl
• Contact Material: Brass
• Ring Width (Decimal Inch): 0.5120
• UPC: 78325048990
• Product Type: Lug Compression Connectors
• Number of Pieces: 25
• Packaging: Retail
• Length: 1.339 Inch
