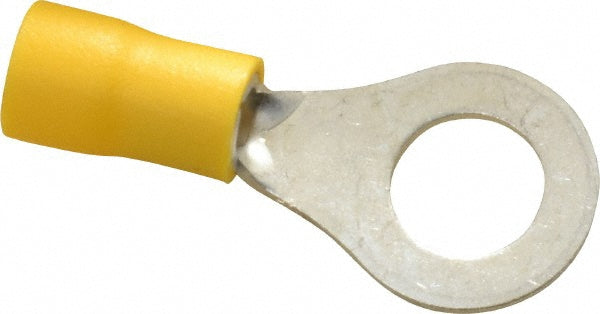

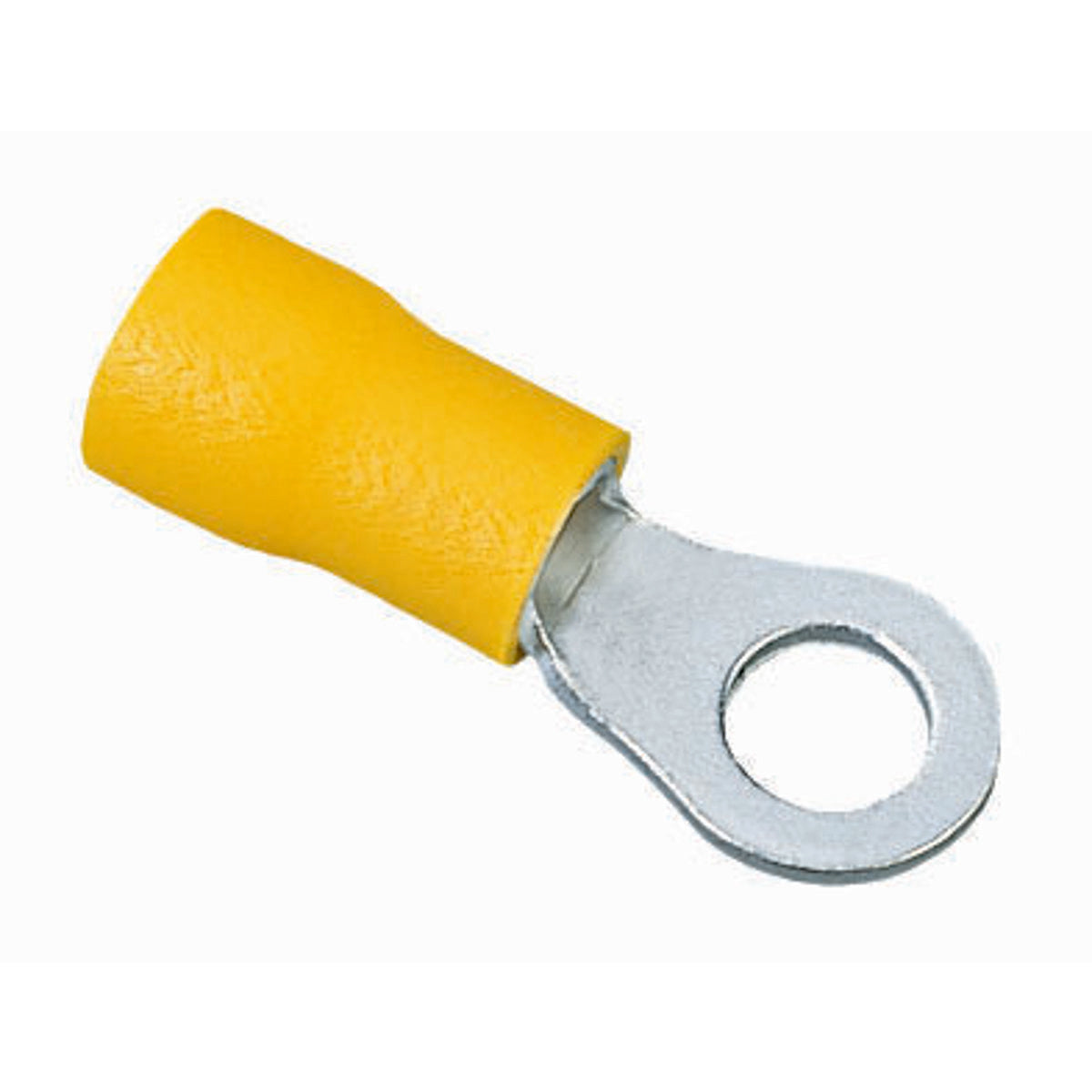

Ideal 83-2361 Ring Terminal Vinyl Ring 12 - 10 AWG 5/16 IN

Product Description

The IDEAL 83-2361 ring terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Constructed from tin-plated brass for corrosion resistance. The shouldered barrel insulation quickly positions the terminal for proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated ring terminal is color-coded for easy identification and has an expanded insulation entry to accommodate a wide variety of insulation diameters.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2361
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2361
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Ring
• Stud Size: 5/16 in
• Temperature Rating: 75 deg C
• Voltage Rating: 600 VAC
• Barrel Style: Beveled
• Color Code: Yellow
• Conductor Size: 12 to 10 AWG
• Catalog ID: IDE83-2361
• Barrel Size: 0.512 in L
• Overall Length: 1.339 in
• Type: 1-Hole Insulated
• Tongue Size: 0.591 in W
• Termination Method: Crimp
• Quantity: 25 packs
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 167°F (75°C)
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Insulated: Yes
• Compatible Wire Size (sq mm): 4.00 to 6.00
• Connection Type: Crimp
• Stud Size (mm): 8.40
• Insulation Material: Vinyl
• Contact Material: Brass
• Overall Length (Decimal Inch): 1.3390
• Ring Width (Decimal Inch): 0.5120
