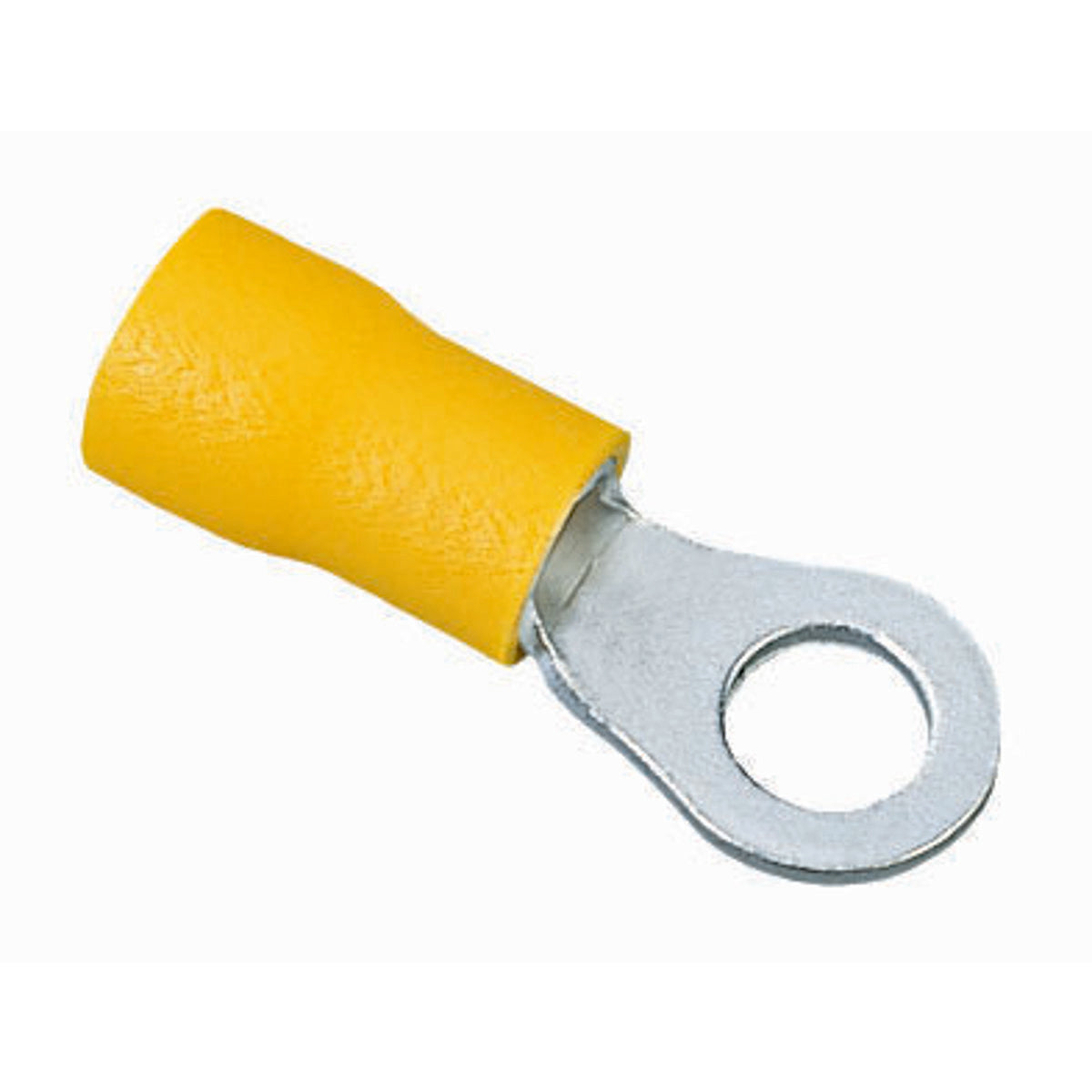

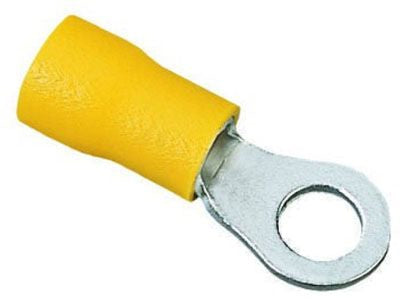

Ideal 83-2341 Ring Terminal Vinyl Ring 12 - 10 AWG 10 IN

Product Description

The IDEAL 83-2341 vinyl ring terminal accommodates cable sizes from 12 to 10 AWG and features a stud size of 10. Constructed from tin-plated brass, it offers corrosion resistance. The butted seam prevents splitting under maximum pressure, and internal barrel serrations grip wires tightly. Color-coded insulation allows for easy identification.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL ring terminal ensures secure and reliable electrical connections with its durable construction and user-friendly design.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2341
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2341
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Ring
• Stud Size: 10
• Type: Beveled, Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Voltage Rating: 600 V
• Temperature Rating: 75 Deg C
• Maximum Wire Insulation Diameter: 0.248 Inch
• Wire Size: 12-10 AWG
• Listing: UL/cUL listed
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature (C): 75°C
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
