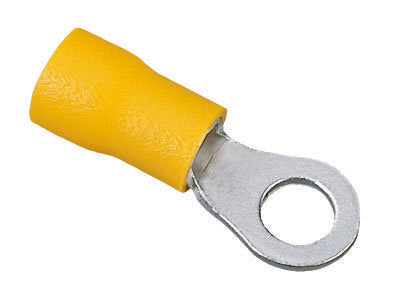

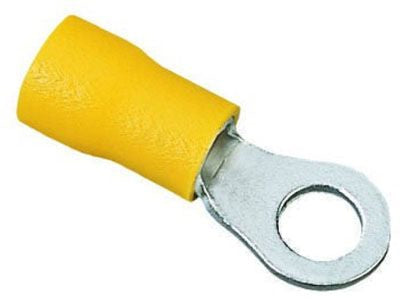

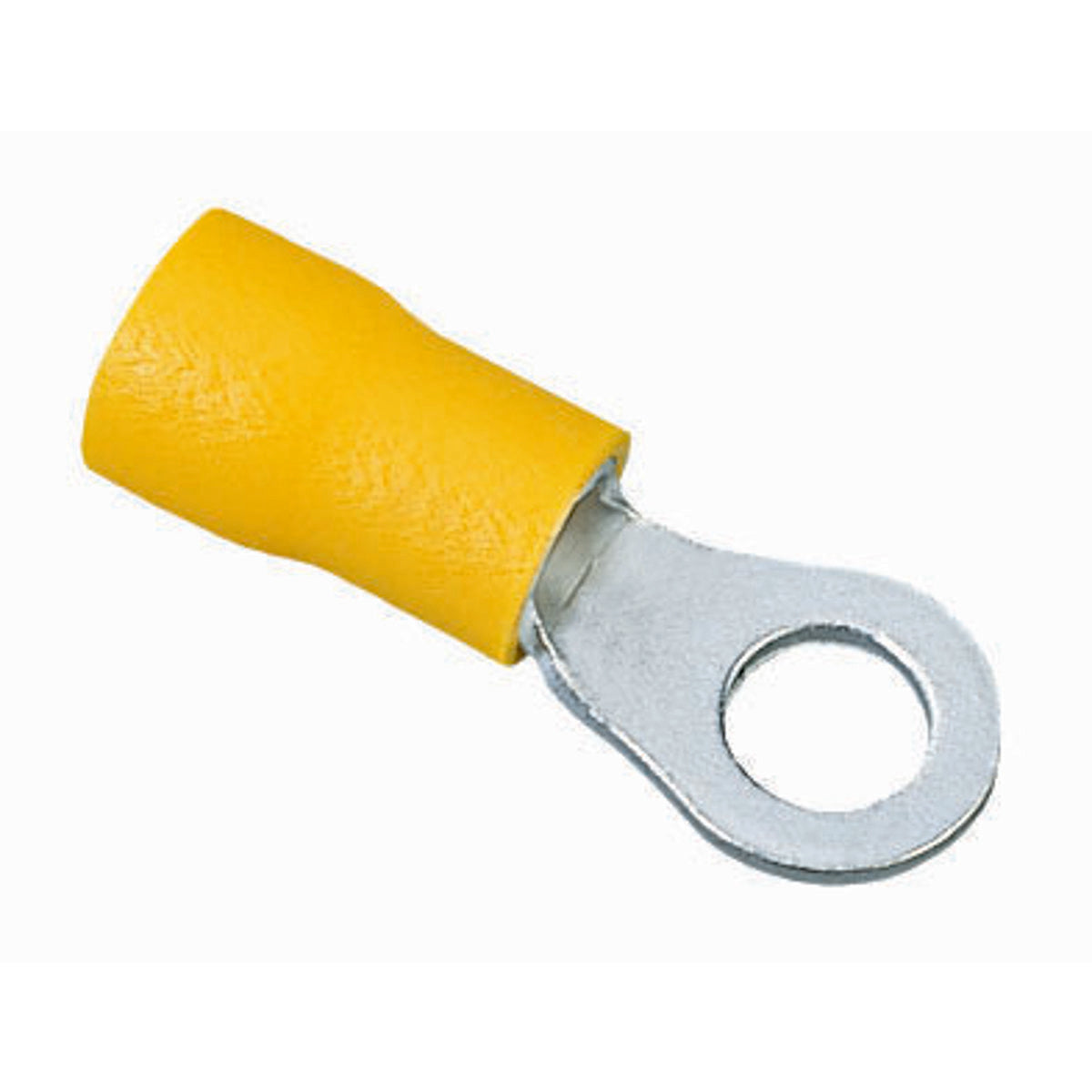

Ideal 83-2341 Ring Terminal 12 to 10 AWG 1-Hole

Product Description

The Ideal 83-2341 is a vinyl insulated ring terminal designed for wires sized 12 to 10 AWG. It features a butted seam construction that prevents splitting under maximum pressure. This terminal includes internal barrel serrations to grip wires tightly, enhancing resistance to pull-out and reducing electrical resistance.

• Material: Tin plated brass for corrosion resistance
• Stud size: Number 10
• Expanded insulation entry for various insulation diameters

Product Highlights

This terminal facilitates proper crimping due to its shouldered barrel insulation, and all units are color-coded for easy identification.

Product Information

Standard Information

• Catalog Number: 83-2341
• Manufacturer: Ideal Industries

Technical Specifications

• Cable Size: 12 - 10 AWG
• Insulation: Vinyl insulated
• Material: Tin plated brass
• Number of Holes: 1
• Stud Size: 10
• Voltage Rating: 600 VAC
• Temperature Rating: 75 deg C
• Overall Length: 1.047 inches
• Color Code: Yellow
