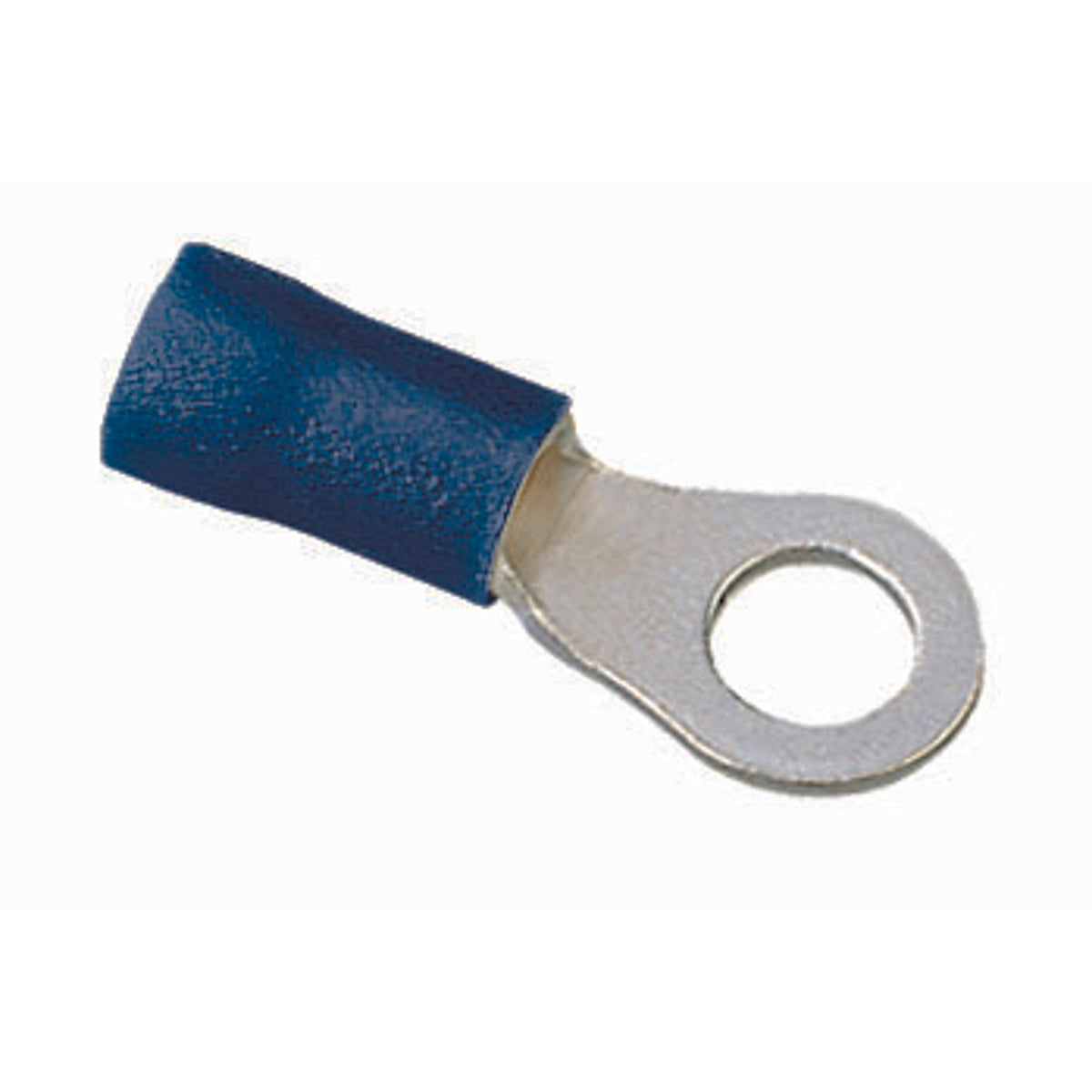

Ideal 83-2241 Ring Terminal Vinyl Ring 16 - 14 AWG 10 IN

Product Description

The IDEAL 83-2241 ring terminal is a vinyl insulated ring designed for cable sizes 16 to 14 AWG and a stud size of 10 IN. It features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. The tin-plated brass construction offers corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

Vinyl insulated ring terminal for 16-14 AWG wires and #10 studs, featuring durable construction and corrosion resistance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2241
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2241
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Ring
• Stud Size: 0.19 in
• Temperature Rating: 75 Deg C
• Approval: UL, CUL
• Overall Dimension: 0.858 Inch Length x 0.335 Inch Width
• Wire Insulation Diameter: 0.177 Inch
• Voltage Rating: 600 Volt
• Insulation Type: Vinyl Insulated
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 16 to 14 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
