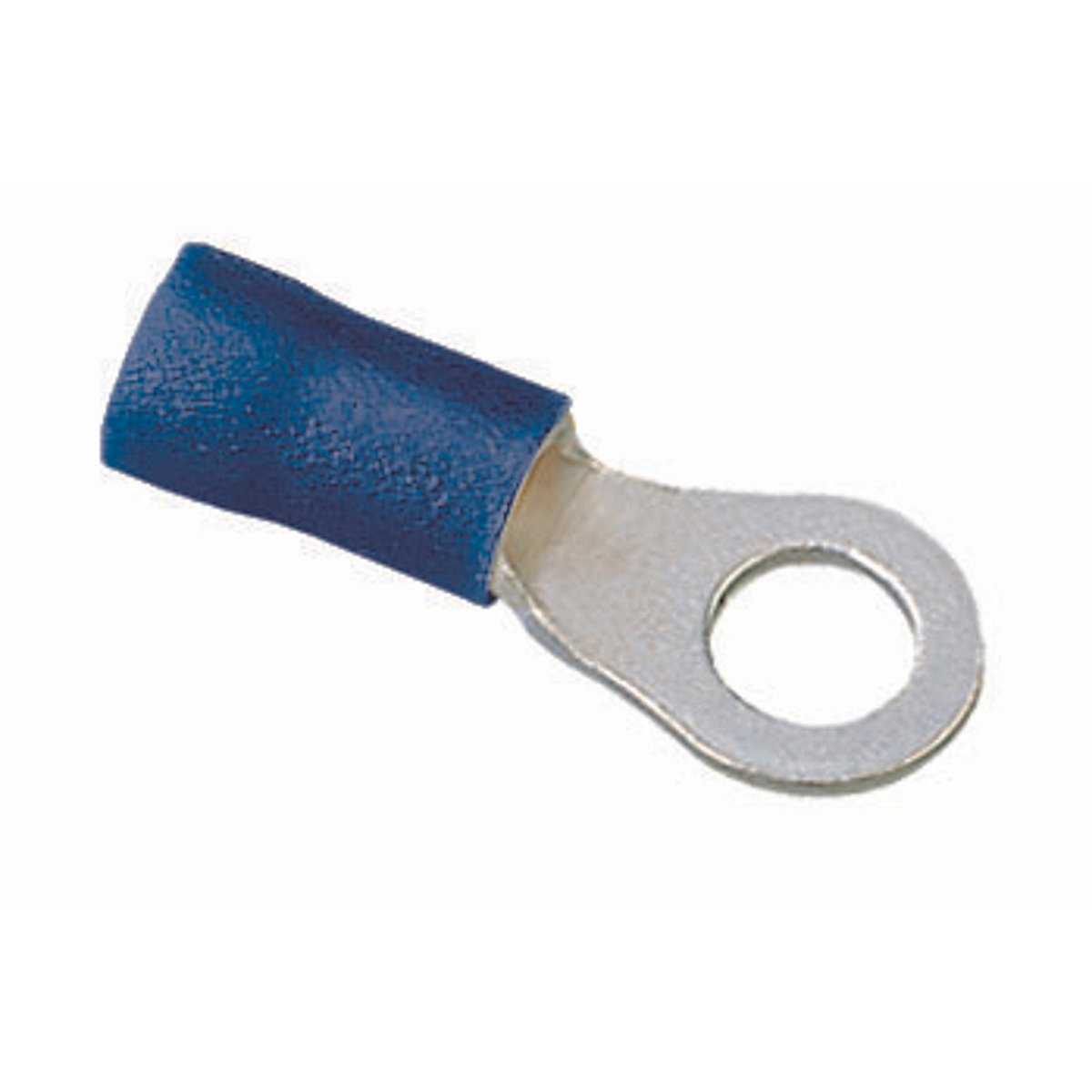

Ideal 83-2231 Ring Terminal, Vinyl Ring, Cable Size: 16 - 14 AWG, Stud Size: 8 IN

Product Description

The IDEAL 83-2231 ring terminal is a vinyl ring designed for cable sizes 16 - 14 AWG and a stud size of 8 IN. It features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations to grip wires tightly. The tin-plated brass construction offers corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated ring terminal ensures secure connections and reduces electrical resistance. Ideal for various electrical systems, it offers easy identification with color-coded insulation.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-2231
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-2231
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 16 - 14 AWG
• Insulation: Vinyl Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Vinyl Ring
• Stud Size: 8 IN
• Type: Beveled, Funnel Entry
• Temperature Rating: 75 Deg C
• Approval: UL 774A, CUL
• Voltage Rating: 600 V
• Maximum Wire Insulation Diameter: 0.177 Inch
• Termination Method: Crimp
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167°F (75°C)
• Wire Gauge: 16 to 14 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Colour: Blue
