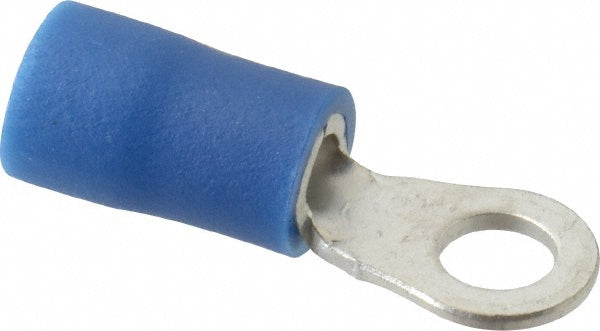

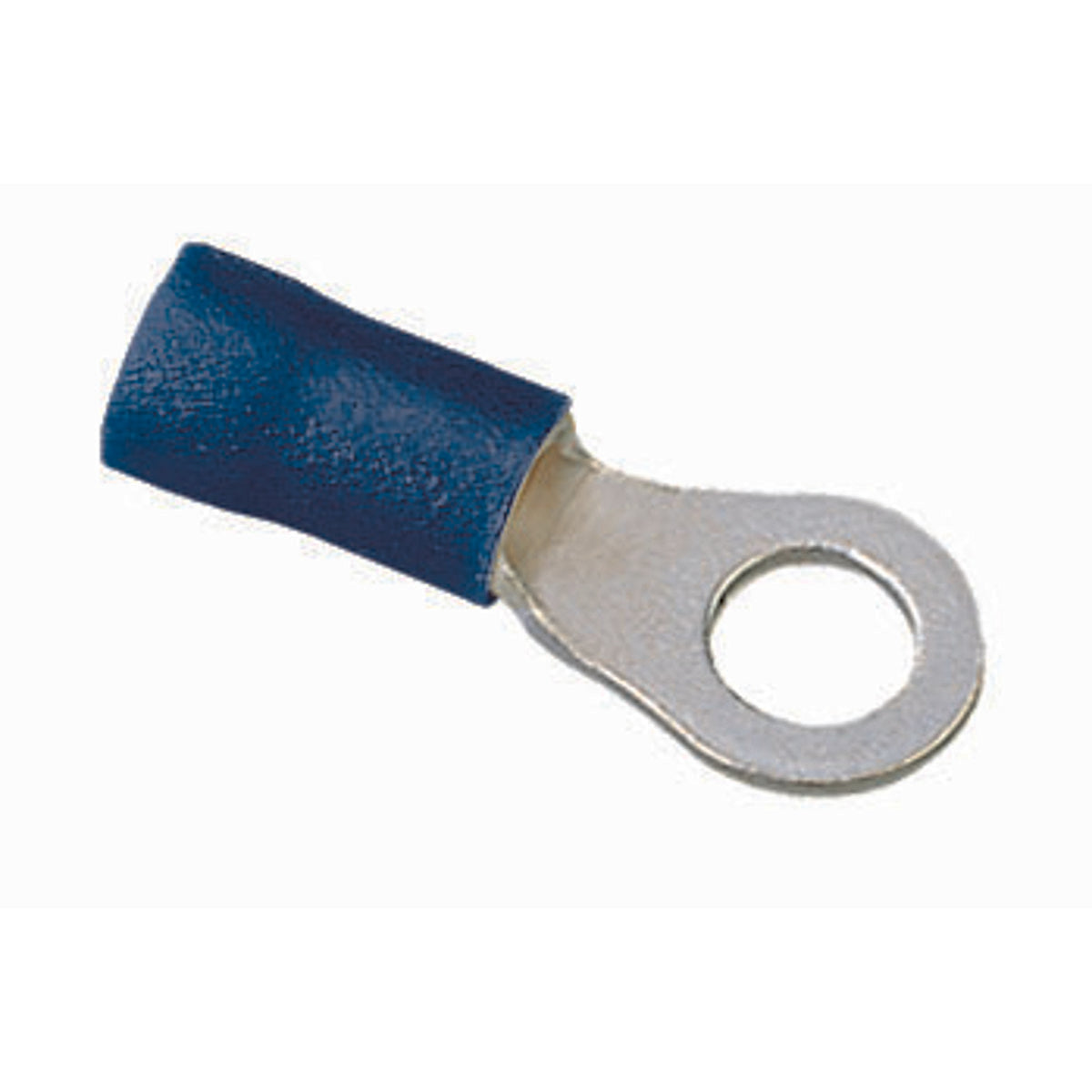

Ideal 83-2221 Ring Terminal Vinyl Ring 16 - 14 AWG 6 IN

Brand: IDEAL
SKU: 83-2221
Availability: In Stock

Ships same day if ordered by 12 pm
$32.52
$32.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The IDEAL 83-2221 ring terminal is a vinyl insulated ring designed for cable sizes 16 - 14 AWG and a stud size of 6 IN. It features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction provides corrosion resistance. The insulation is color-coded for easy identification.

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance

Product Highlights

The IDEAL ring terminal ensures secure connections with its robust construction and corrosion resistance, suitable for various electrical systems.

Product Information

Standard Information

  • Brand: IDEAL
  • Manufacturer Part Number: 83-2221
  • Country of Origin: Taiwan
Technical Specifications
Catalog Number
83-2221
Manufacturer
Ideal
Brand
IDEAL
Country of Origin
Taiwan, Province Of China
Made in USA
No
Cable Size
16 - 14 AWG
Insulation
Vinyl Insulated
Material
Tin Plated Brass
Number of Holes
1
Special Features
Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
Standard
UL Listed, RoHS
Item Type
Vinyl Ring
Stud Size
6
Finish
Tin-Plated
Product Type
Ring Terminals
Type
Vinyl Insulated
Wire Range
16-14 AWG
Terminal Type
Circular
Insulation Type
Partially Insulated
Connection Type
Crimp
Compatible Wire Size (sq mm)
1.50 to 2.50
Compatible Wire Size (AWG)
16 to 14
Insulation Material
Vinyl
Overall Length (Decimal Inch)
0.7640
Contact Material
Brass
Ring Width (Decimal Inch)
0.3940
Standards
UL Listed; RoHS Compliant; cUL Listed
