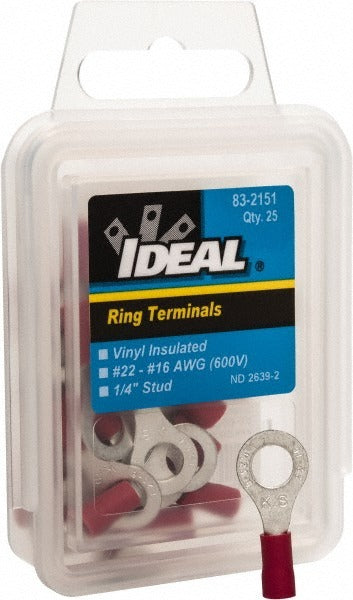

Ideal 83-2151 Ring Terminal 22-18 Awg Crimp Red 25 Pack

Product Description

The IDEAL 83-2151 is a partially insulated circular ring terminal designed for crimp connections on 22 to 18 AWG conductors. The terminal features a brass contact with TiN (titanium nitride) plating and a red vinyl insulation sleeve that provides partial coverage at the barrel end. Overall length is 1.055 inches and ring width is 0.394 inches, making it suitable for 1/4-inch stud terminations. Licensed electricians and low-voltage technicians install these terminals when securing wire ends to screw or stud-type connection points. The terminal meets UL and cUL listing requirements and is RoHS compliant.

This ring terminal is used in residential and commercial electrical wiring, control panel assembly, and HVAC low-voltage wiring applications where a secure, permanent crimp termination to a threaded stud or screw is required. The 22 to 18 AWG wire range covers common control wiring and light-duty power conductors. The red color coding follows standard wire ferrule and terminal color conventions for this AWG range. Each package contains 25 terminals.

Key Features

• Partially insulated vinyl sleeve provides grip and barrel protection without full insulation bulk
• Brass contact with TiN plating resists corrosion and maintains conductivity at the crimp joint
• Accepts 22 to 18 AWG wire (0.50 to 1.00 sq mm) for versatile control and light-duty wiring applications
• Fits 1/4-inch (6.40 mm) studs or screws for standard panel and terminal block connections
• UL Listed, cUL Listed, and RoHS compliant
• Sold in a 25-piece package

Compatibility

Designed as a standard crimp ring terminal for use with 22 to 18 AWG conductors terminating at 1/4-inch threaded studs or screw-type connection points in electrical panels, control boards, and terminal blocks.

Installation Notes

Installation is performed by licensed electricians or qualified technicians using a ratcheting crimp tool rated for the applicable AWG range. De-energize the circuit completely before terminating or removing any ring terminals. Strip wire insulation to the correct length to fill the barrel without excess bare conductor extending past the crimp zone. Installations in commercial panels must comply with applicable NEC requirements for terminal connections and conductor sizing.
