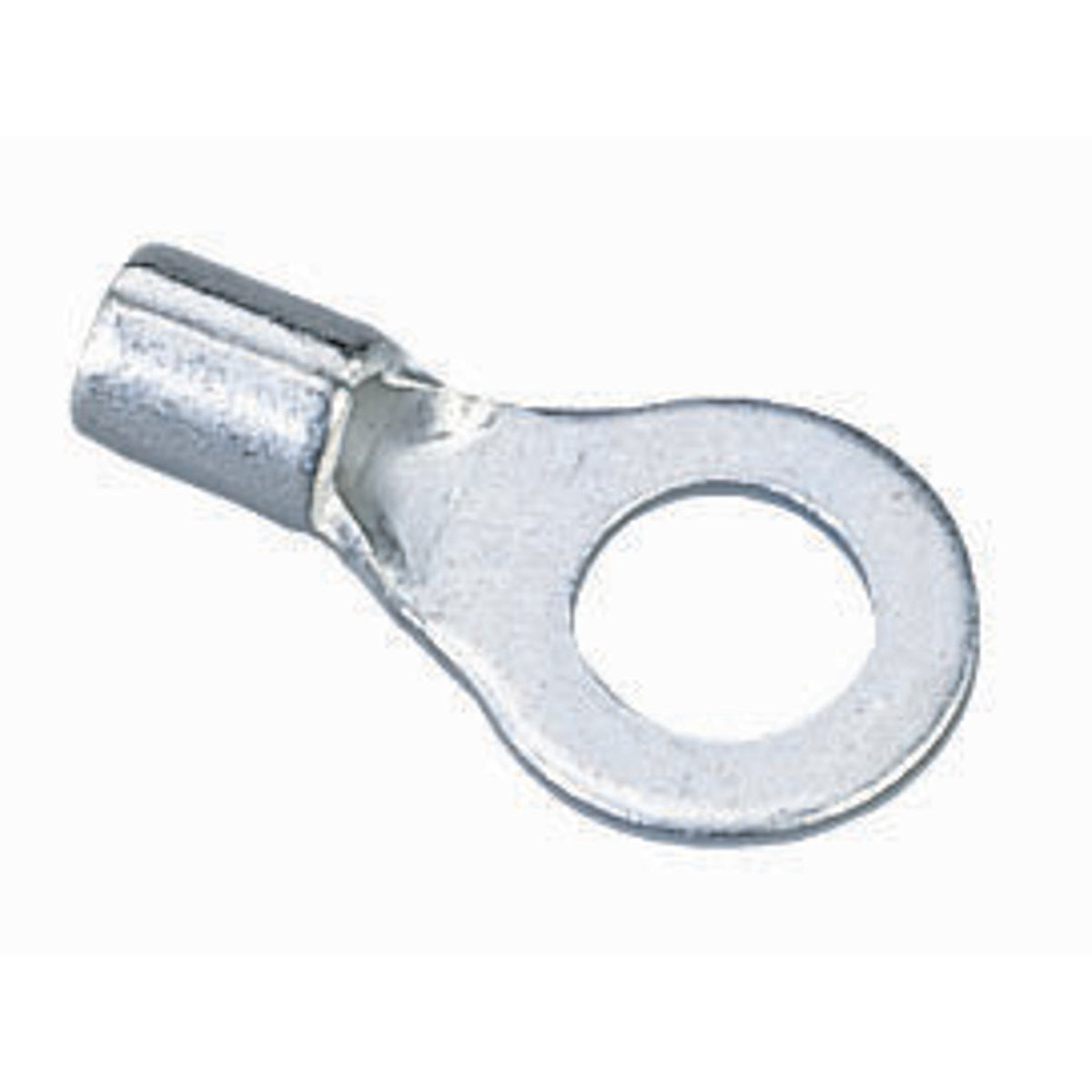

Ideal 83-0621 ring terminal bare ring 4 AWG 5/16 IN

Product Description

The IDEAL 83-0621 ring terminal features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. It is constructed of tin-plated brass for corrosion resistance. This non-insulated ring terminal accommodates 600 V/221°F (105°C) ratings.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

The IDEAL ring terminal ensures secure wire connections with its durable construction and serrated barrel design.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-0621
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-0621
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 4 AWG
• Insulation: Non-Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Bare Ring
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 4 AWG
• Stud Size: 5/16"
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Conductor Max: 4 AWG
• Voltage Rating: 600V
• Package Quantity: 25
