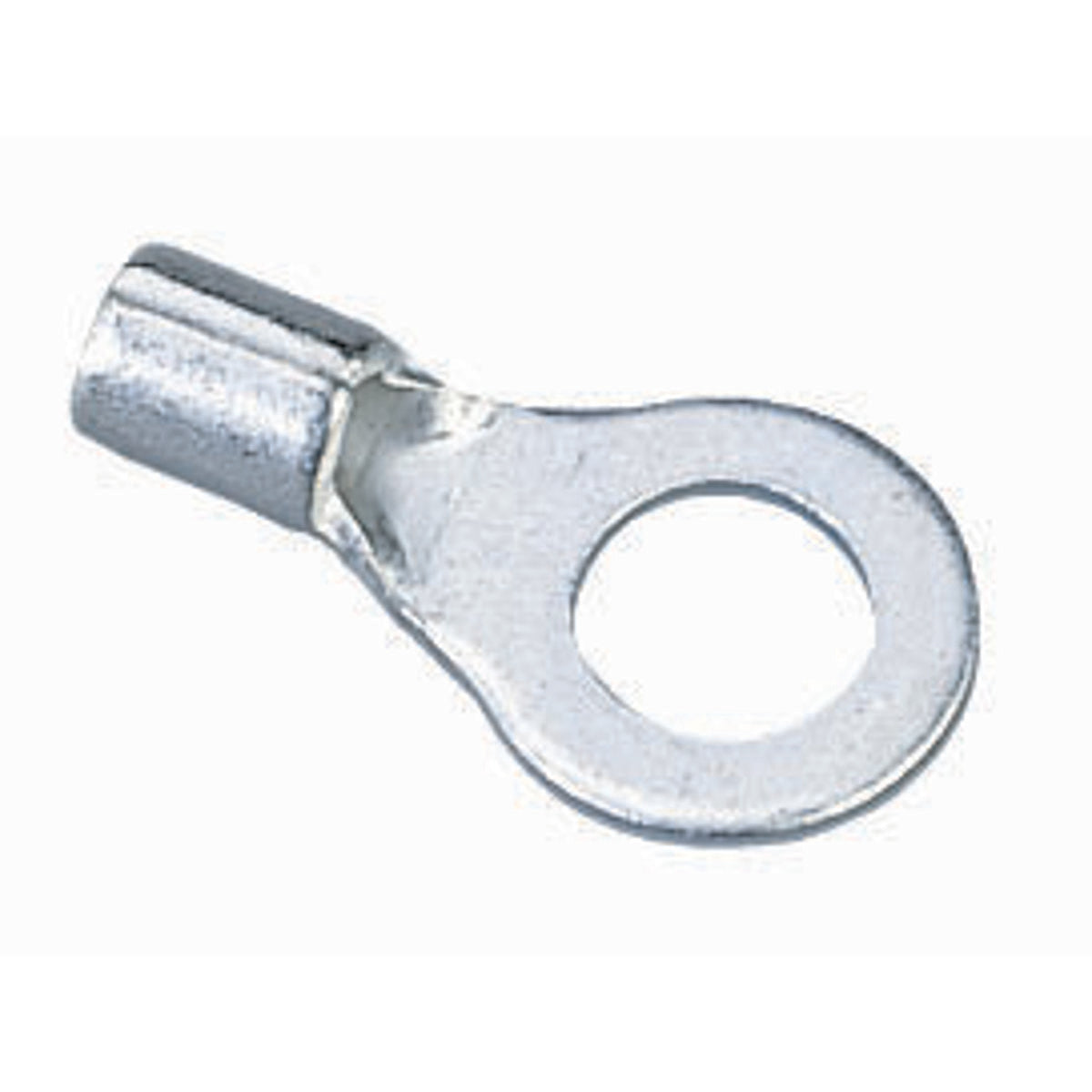

Ideal 83-0541 Ring Terminal Bare Ring 6 AWG 3/8 IN

Product Description

The IDEAL 83-0541 ring terminal is a bare ring connector designed for 6 AWG cables and 3/8 inch studs. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations to grip wires tightly. The tin-plated brass construction offers corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This non-insulated ring terminal ensures secure and reliable electrical connections for various applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-0541
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-0541
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 6 AWG
• Insulation: Non-Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• Item Type: Bare Ring
• Type: Bare Ring
• Stud Size: 0.375 in
• Overall Length: 1.28 in
• Temperature Rating: 221 deg F
• Voltage Rating: 600 VAC
• Conductor Size: 6 AWG
• Barrel Style: Beveled
• Barrel Size: 0.413 in L
• Tongue Size: 0.63 in W
• Hole Centre to Barrel: 0.559 in
• Conductor Min: 6 AWG
• Conductor Max: 6 AWG
