Ideal 83-0531 Ring Terminal Bare Ring 20Pk

Product Description

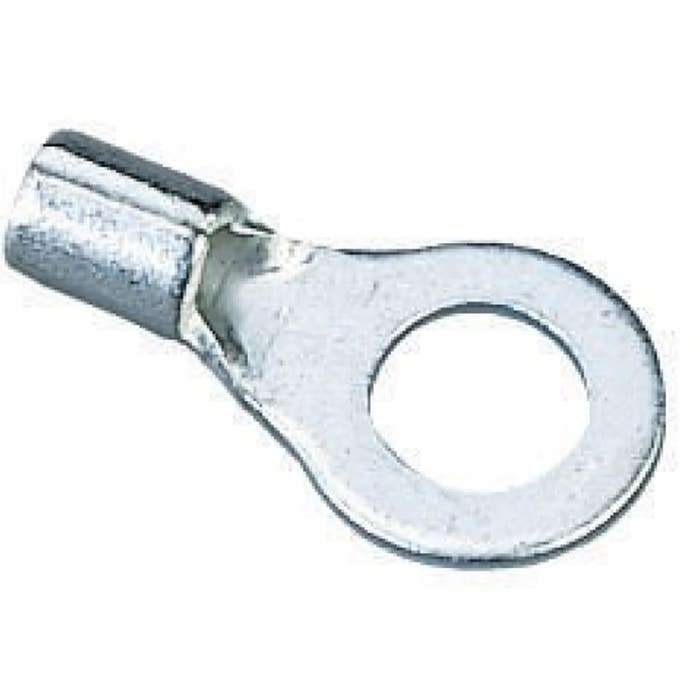

The IDEAL 83-0531 ring terminal is a bare ring connector made of tin-plated brass. Designed for a 4 AWG cable size and a 5/16 IN stud size, it features a single hole and non-insulated construction. The butted seam construction prevents splitting under maximum pressure.

• Ring Terminal
• Bare Ring
• Cable Size: 4 AWG

Product Highlights

This non-insulated ring terminal is constructed with a butted seam to prevent splitting under pressure and is UL Listed and RoHS compliant.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-0531
• Country of Origin: Taiwan

Technical Specifications

• Type: Bare Ring
• Material: Tin Plated Brass
• Standard: UL Listed; RoHS
• Stud Size: 0.3125 in
• Brand Name: Ideal
• Cable Size: 4 AWG
• Insulation: None
• Number Of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure
• Country of Origin: Taiwan
• UPC: 783250489664
• Vendor Alias: 83-0531
