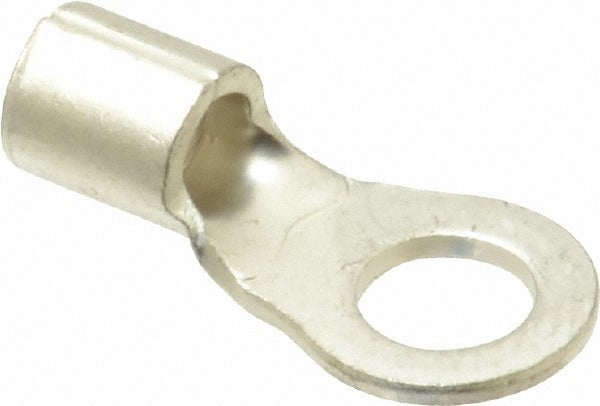

Ideal 83-0341 Ring Terminal 12-10 Awg Crimp 25 Pack

Product Description

The IDEAL 83-0341 is a non-insulated circular ring terminal designed for crimp connections on 12 to 10 AWG copper conductors. The brass contact body is plated with titanium nitride (TiN) for improved conductivity and corrosion resistance. The terminal accepts a No. 10 stud, with an overall length of 0.772 inches and a ring width of 0.374 inches. This terminal is sold in a package of 25 and is sized for the wire gauges common in residential and light commercial electrical, HVAC control wiring, and equipment grounding applications. Electricians, HVAC technicians, and panel wiring crews use these terminals to terminate conductors to bus bars, chassis studs, and equipment terminals.

The 83-0341 is suited for use in residential and commercial electrical panels, HVAC equipment control circuits, and general equipment wiring where a secure, low-profile ring lug is required on 12 to 10 AWG wire. The non-insulated design is appropriate where terminal blocks, shrink tubing, or other post-crimp insulation will be applied, or where the connection point is already protected by an enclosure. Compatible wire range covers 4.00 to 6.00 square millimeters for installations using metric wire sizing. The No. 10 stud size is a standard fastener diameter found on many terminal strips and equipment chassis mounting points.

Key Features

• Non-insulated circular ring terminal for 12 to 10 AWG conductors
• Brass contact with titanium nitride (TiN) plating for corrosion resistance
• Crimp connection type for fast, reliable termination
• Accepts No. 10 stud size (5.30 mm)
• cUL Listed and UL Listed; RoHS Compliant
• Sold in a 25-piece package

Compatibility

Designed for crimp termination of 12 to 10 AWG (4.00 to 6.00 sq mm) conductors to No. 10 stud fasteners, suitable for residential and commercial electrical and HVAC control wiring applications.

Installation Notes

Installation requires a ratcheting or calibrated crimp tool rated for non-insulated terminals in the applicable AWG range. De-energize and lock out the circuit before terminating any conductors. Inspect the crimped connection to confirm full wire insertion and proper die engagement before torquing the stud fastener. Where insulation is required at the termination point, apply heat-shrink tubing or a terminal cover after crimping in accordance with NEC requirements.
