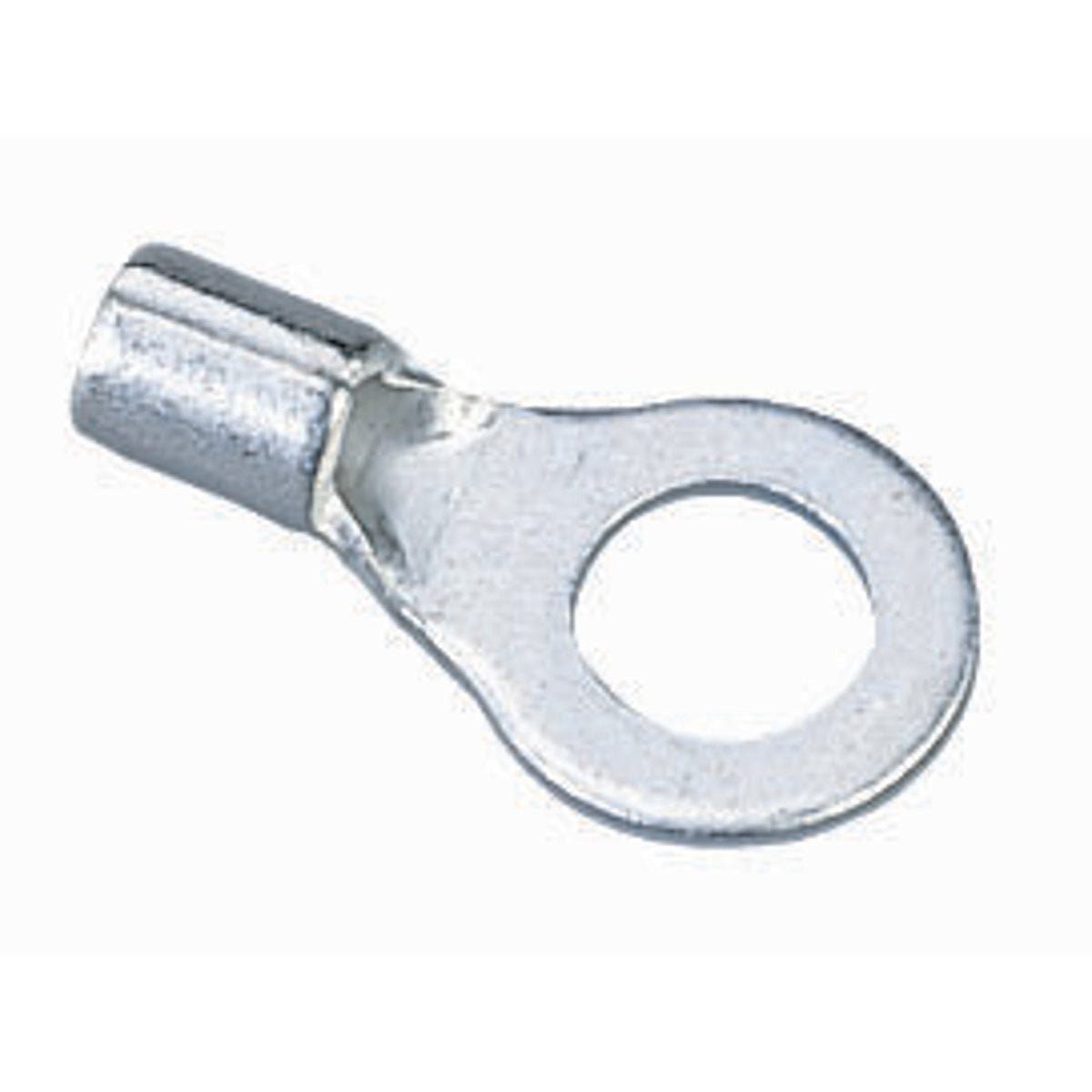

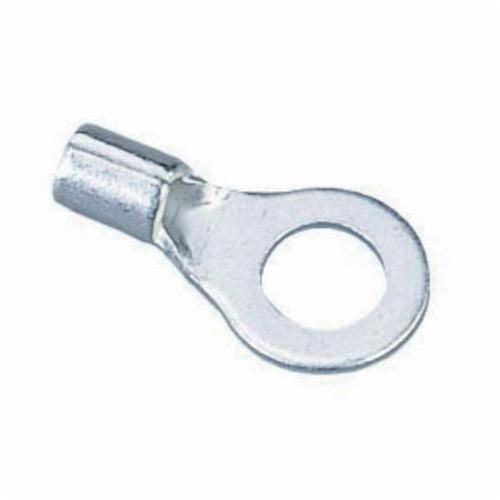

Ideal 83-0141 Ring Terminal Bare Ring 22 - 18 AWG 10 IN

Product Description

The IDEAL 83-0141 ring terminal is a bare ring terminal designed for cable sizes 22 - 18 AWG and a stud size of 10 IN. It features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations to grip wires tightly. The tin-plated brass construction offers corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This non-insulated ring terminal ensures secure connections and reduces electrical resistance in various electrical systems. UL Listed and RoHS compliant.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-0141
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-0141
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Cable Size: 22 - 18 AWG
• Insulation: Non-Insulated
• Material: Tin Plated Brass
• Number of Holes: 1
• Special Features: Features: Butted Seam-Construction Prevents Splitting Under Maximumpressure; Internal Barrel Serrations Grip Wires Tightly To Resist Pull-Out And Reduce Electrical Resistance; Tin Plated Brass Construction For Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal For Proper Crimping; Expanded Insulation Entry Accomodates A Wide Variety Of Insulation Diameters And Provides Additional Insulation Support; Color-Coded Insulation And Wire Range Stamped On Terminal For Easy Identification; See Product Packaging For Recommended Crimp Tools
• Standard: UL Listed, RoHS
• UPC: 783250489466
• GTIN: 00783250489466
• Item Type: Bare Ring
• Stud Size: 10
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 221 deg F
• Wire Gauge: 22 to 18 AWG
• Terminal Type: Ring
• Wire Type: Solid, Stranded
• Overall Length: 0.622 in
• Temperature Rating: 221 deg F
• Type: 1-Hole Non-Insulated
• Voltage Rating: 600 VAC
• Tongue Size: 0.315 in W
• Catalog ID: IDE83-0141
• Barrel Style: Beveled
• Barrel Size: 0.189 in L
