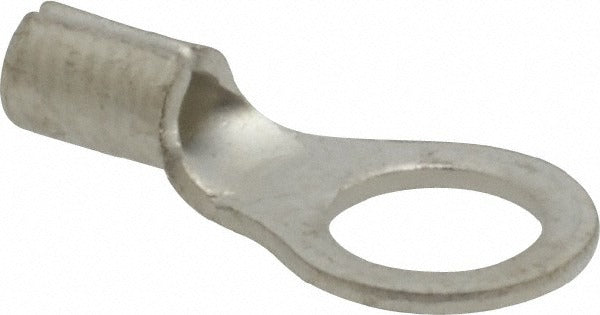

Ideal 83-0141 Ring Terminal 22-18 Awg Crimp 10 Stud 25pk

Product Description

The IDEAL 83-0141 is a non-insulated circular ring terminal designed for crimp connections in low-voltage wiring applications. It accommodates 22 to 18 AWG wire and fits a No. 10 stud. The contact is made from brass with a titanium nitride (TiN) plating for improved conductivity and corrosion resistance. The terminal measures 0.622 inches in overall length and 0.315 inches in ring width. Electricians and control wiring technicians use this terminal to create reliable, secure ring-style terminations at screw lugs, bus bars, and terminal blocks.

This ring terminal is suited for residential and light commercial electrical work, control panel wiring, HVAC low-voltage circuits, and general panel termination tasks. Its crimp connection style makes it compatible with standard ratchet-style and compression crimp tools. The non-insulated design is appropriate where a separate wire boot or insulation sleeve will be applied, or where bare terminations are acceptable per the installation standard.

Key Features

• Non-insulated brass contact with TiN plating for durability and conductivity
• Crimp connection style compatible with standard crimping tools
• Fits 22 to 18 AWG wire (0.50 to 1.00 sq mm)
• No. 10 stud size (5.30 mm) for common screw terminal fitment
• cUL Listed and UL Listed; RoHS Compliant
• Sold in a 25-piece package

Compatibility

Designed for use with 22 to 18 AWG conductors terminated at No. 10 stud fasteners in control panels, electrical enclosures, and low-voltage wiring assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before installing or removing any terminal. Use a calibrated ratchet crimp tool rated for the wire gauge being terminated to ensure a gas-tight connection. Inspect the crimped joint before reinstating power to confirm the conductor is fully seated and the terminal is secure on the stud.
