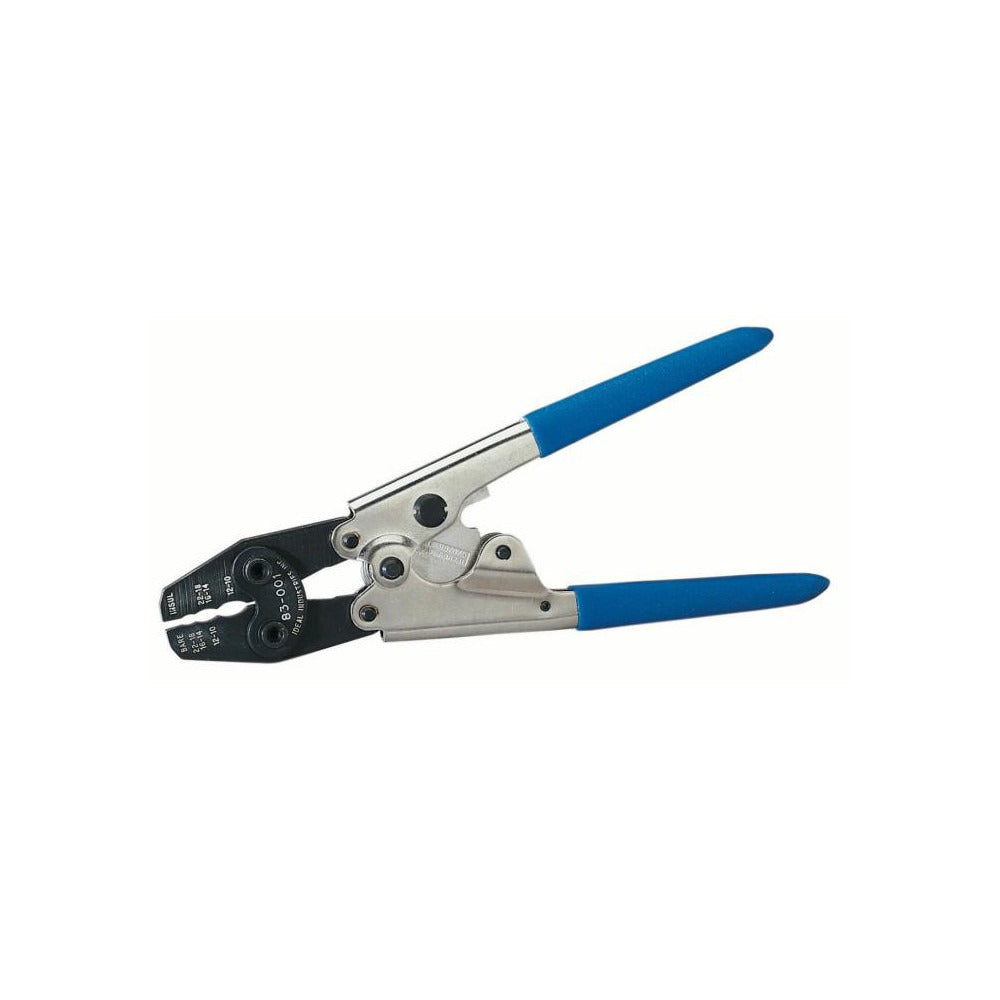

Ideal 83-001 Crimping Pliers 22-10 Awg Ratcheting

Product Description

The IDEAL 83-001 is a ratcheting crimping plier designed for terminating insulated and non-insulated terminals and butt splices across a wire gauge range of 22 to 10 AWG. At 10 inches overall length, the tool provides the leverage needed for consistent, full-cycle crimps on copper conductors commonly encountered in commercial and residential electrical work. The ratcheting mechanism ensures the crimp cycle completes before the jaws release, reducing the chance of an incomplete or cold crimp on a terminal connection. Vinyl coated handles provide grip during extended use on the job.

This crimping plier is suited for electricians, low-voltage installers, and panel technicians working with ring terminals, spade terminals, and butt splices. It handles the full range of wire gauges from 22 AWG signal wire up through 10 AWG power conductors, making it a single-tool solution for most terminal crimping tasks on branch circuits, control wiring, and panel connections. The ratchet crimp action is especially useful when working with pre-insulated terminals where a consistent crimp depth is critical to connector retention and pull-out strength.

Key Features

• Ratcheting crimp mechanism ensures full crimp cycle before jaw release
• Capacity covers 22 AWG to 10 AWG wire gauges
• Compatible with both insulated and non-insulated terminals and butt splices
• Vinyl coated handles for secure grip during use
• 10 inches overall length for adequate leverage on larger gauge conductors

Compatibility

Designed for use with insulated and non-insulated terminals and butt splices in the 22 to 10 AWG wire gauge range.

Installation Notes

This tool is typically used by licensed electricians and low-voltage technicians. De-energize all circuits before terminating conductors. Confirm wire gauge and terminal type match before crimping, and always perform a pull test on a completed crimp to verify terminal retention. Work in accordance with applicable NEC requirements for conductor terminations.
