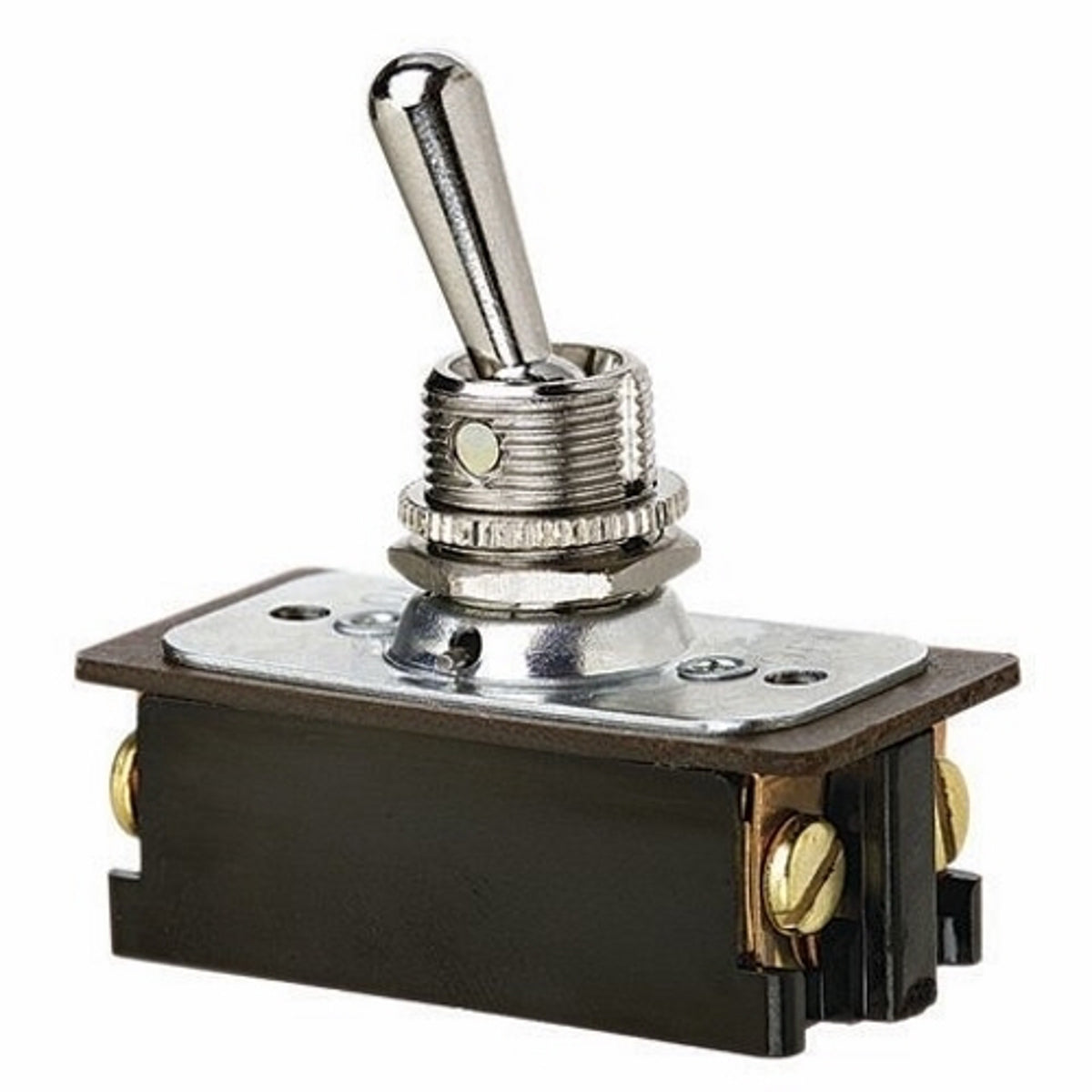

Ideal 774096 Extra Heavy Duty Toggle Switch 125/227 VAC 1 hp DPST

Product Description

The Ideal 774096 is an extra heavy-duty toggle switch designed for high amperage AC and DC motor control. This switch operates at a voltage rating of one hundred twenty-five to two hundred twenty-seven VAC and can handle currents of sixteen and eight amps with a power rating of one horsepower. Its DPST ON-OFF contact configuration allows for simple operation.

• Suitable for heavy-duty applications
• Sturdy metal construction for durability
• 1/2 inch hole mounting and standard screw terminals

Product Highlights

This toggle switch is ideal for industrial settings where reliable performance is necessary. Its quick make and quick break functionality ensures efficient operation.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 774096
• Voltage Rating: 125/227 VAC
• Amperage Rating: 16/8 A
• Number of Poles: 2
• Power Rating: 1 hp
• Mounting: Threaded
• Contact Configuration: DPST
• Dimensions: 1.75 in L x 0.84 in W x 0.76 in H
