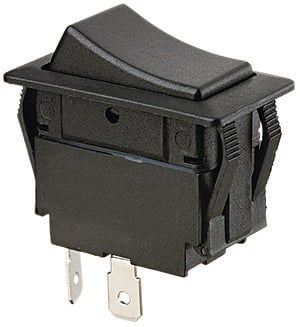

Ideal 774045 Rocker Switch Full-Size On-Off Voltage Rating 125 227 VAC Amperage Rating 20 15 AMP

Product Description

The Ideal 774045 is a rocker switch designed for commercial appliances and industrial controls. This full-size switch features an on-off action and supports a voltage rating of one hundred twenty-five to two hundred twenty-seven VAC. It has an amperage rating of twenty and fifteen AMP. This switch includes two spade connection terminals.

• Moisture- and dust-resistant design
• Suitable for low-voltage DC applications
• Recommended for mounting in a hole size of zero point eight three zero inches by one point four five zero inches

Product Highlights

This switch is ideal for automotive and marine applications. It operates in temperatures ranging from thirty-two degrees Fahrenheit to one hundred eighty-five degrees Fahrenheit.

Product Information

Standard Information

• Catalog Number: 774045
• Manufacturer: Ideal Industries

Technical Specifications

• Brand: Ideal
• Country of Origin: China
• Made in USA: No
• Action: SPST
• Application: For commercial appliances and industrial controls
• Connection: Spade, 2 terminals
• Mounting: Mounting holes recommended
• Number of Poles: 1
• Operating Temperature: 32 to 185 degrees Fahrenheit
• Voltage Rating: 125 to 227 VAC
• Amperage Rating: 15/20 AMP
• HP Rating: 2 HP at 110 to 250 VAC
