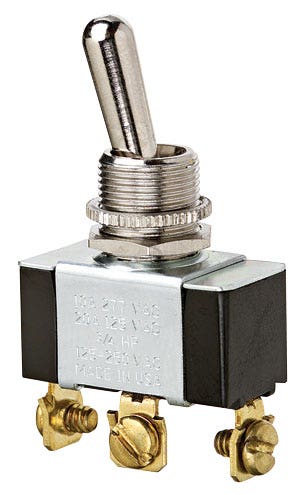

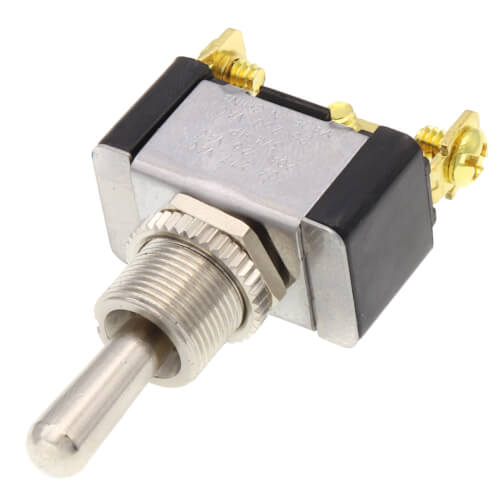

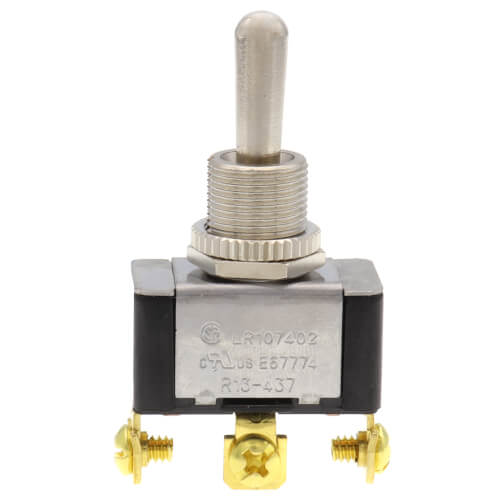

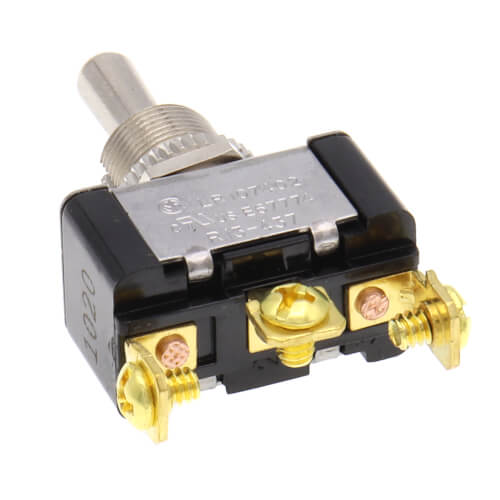

IDEAL 774013 SPDT On-Off-On Toggle Switch 20 Amps @125 VAC

Product Description

IDEAL 774013 is a 3-terminal SPDT On-Off-On toggle switch suitable for various applications including power tools and motor control systems. It has a screw termination and can handle up to 20 Amps at 125 VAC. The durable construction features solid brass and nickel-plated bushings for long-lasting performance.

• Rated for 20 Amps @ 125 VAC and 10 Amps @ 227 VAC
• Compatible with a 1/2 inch diameter mounting hole
• Mechanical life of 100,000 cycles

Product Highlights

This switch is ideal for powering tools and motors efficiently. It operates under a wide range of temperatures, from thirty-two degrees Fahrenheit to one hundred eighty-five degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Category: Toggle Switches

Technical Specifications

• Type: SPDT, On-Off-On
• Actuator: Toggle
• Dimensions: 1.13 Length x 0.57 Width x 0.61 Height inches
• Amperage Rating: 20 Amps @ 125 VAC / 10 Amps @ 227 VAC
• Dielectric Strength: 1500V
• Operating Temperature: 32°F to 185°F (0°C to 85°C)
• Connection: Screw, 3 Terminals
