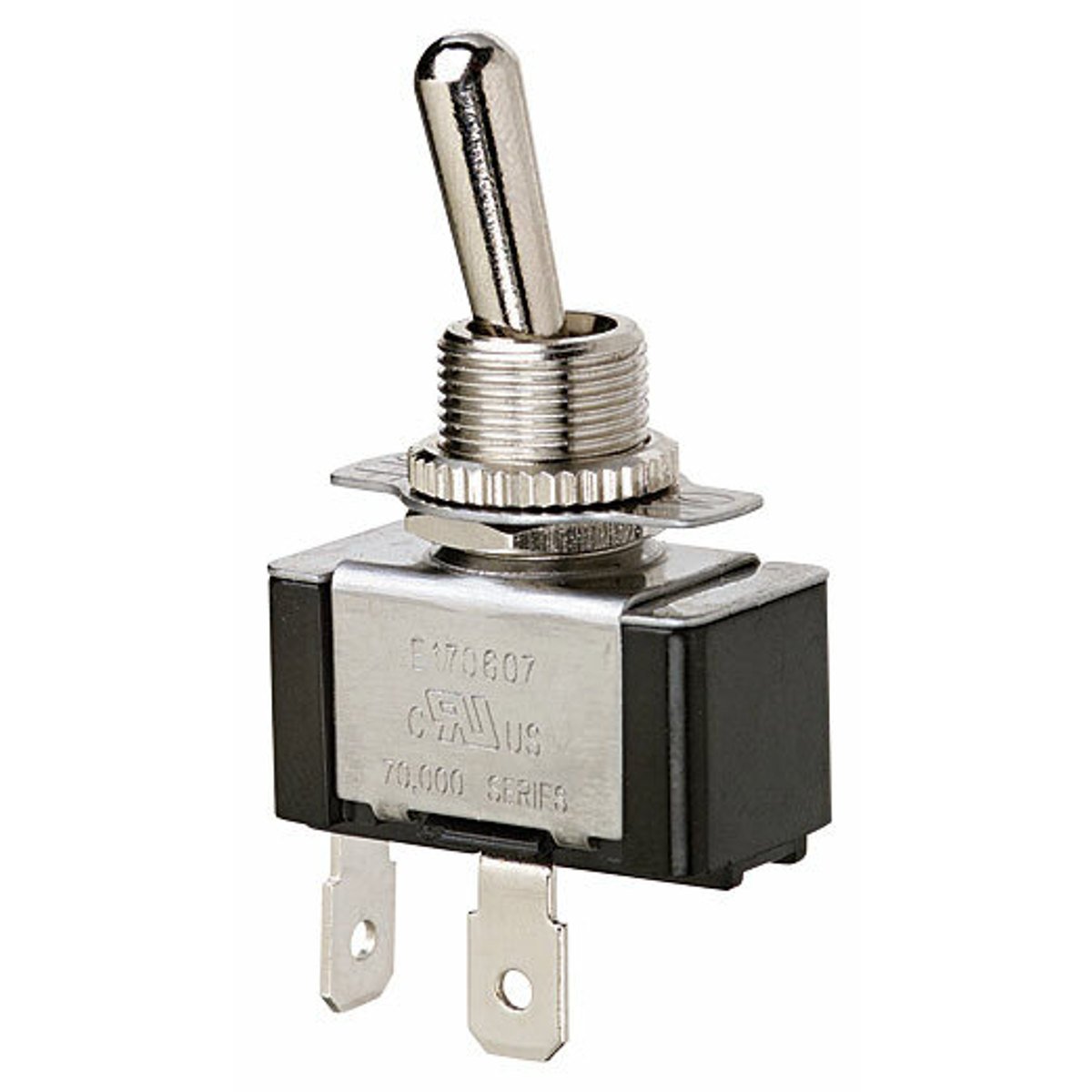

Ideal 774010 Toggle Switch Standard On-Off Voltage Rating 125 227 VAC Amperage Rating 20 10 AMP Number Of Poles 1

Product Description

The Ideal 774010 Toggle Switch is designed for on-off applications with a voltage rating of one hundred twenty-five to two hundred twenty-seven VAC. This toggle switch provides reliable control for motor and power tool applications.

• SPST action for single pole control
• Rugged brass and nickel-plated bushing for durability
• Mechanical life of one hundred thousand cycles

Product Highlights

This toggle switch is ideal for various equipment requiring a simple on-off switch. It includes a toggle actuator for easy operation.

Product Information

Standard Information

• Brand: Ideal
• MPN: 774010

Technical Specifications

• Voltage Rating: 125/227 VAC
• Amperage Rating: 20/10 amp
• Action: SPST
• Connection: Spade, 2 Terminals
• Number of Poles: 1
• Contact Rating: Factory tested up to twenty-one amp 14.8 VDC
• Operating Cycles: One hundred thousand cycles mechanical life
• Operating Temperature: Thirty-two to one hundred eighty-five degrees Fahrenheit
• Mounting Hole Diameter: 1/2 inch
• Dielectric Strength: 1500 V
• Size: 1.130 inch Length x 0.570 inch Width x 0.610 inch Height
• Country of Origin: China
• Standards: CSA, RU Listed, RoHS
