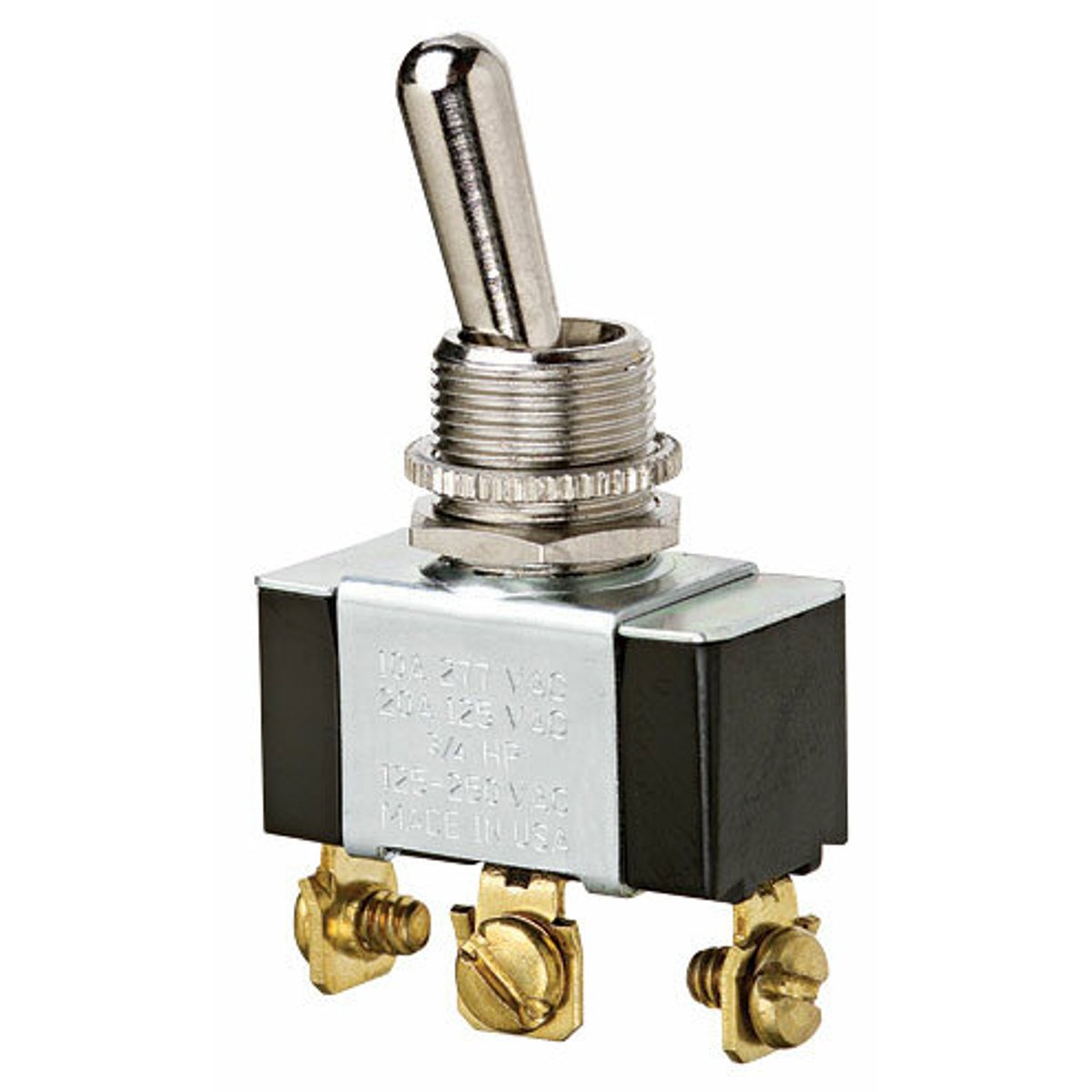

Ideal 774009 Toggle Switch Standard On-Off-On Voltage Rating 125 227 VAC Number Of Poles 1 Amperage Rating 20 10 AMP Action SPDT

Product Description

The Ideal 774009 is a toggle switch designed for use in power tool and motor control applications. This switch operates with a voltage rating of one hundred twenty-five to two hundred twenty-seven volts alternating current. It features a single pole-double throw (SPDT) switch configuration with screw terminal connections.

• Voltage Rating: 125 to 227 VAC
• Amperage Rating: 20 to 10 AMP
• Dielectric Strength: 1500 Volts

Product Highlights

This toggle switch is ideal for environments where durability and reliability are essential. The sturdy construction includes solid brass and nickel-plated bushings, enhancing its lifespan.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Country of Origin: China

Technical Specifications

• Catalog Number: 774009
• Action: SPDT
• Contact Rating: Factory tested for 100,000 cycles at 21 AMP 14.8 VDC
• Size: 1.130 IN Length X 0.570 IN Width X 0.610 IN Height
• Mounting Hole Diameter: 1/2 IN
• Operating Temperature: 32 to 185 DEG F
• Operating Cycles: 100,000 mechanical life
• Special Features: Great for motor control applications
