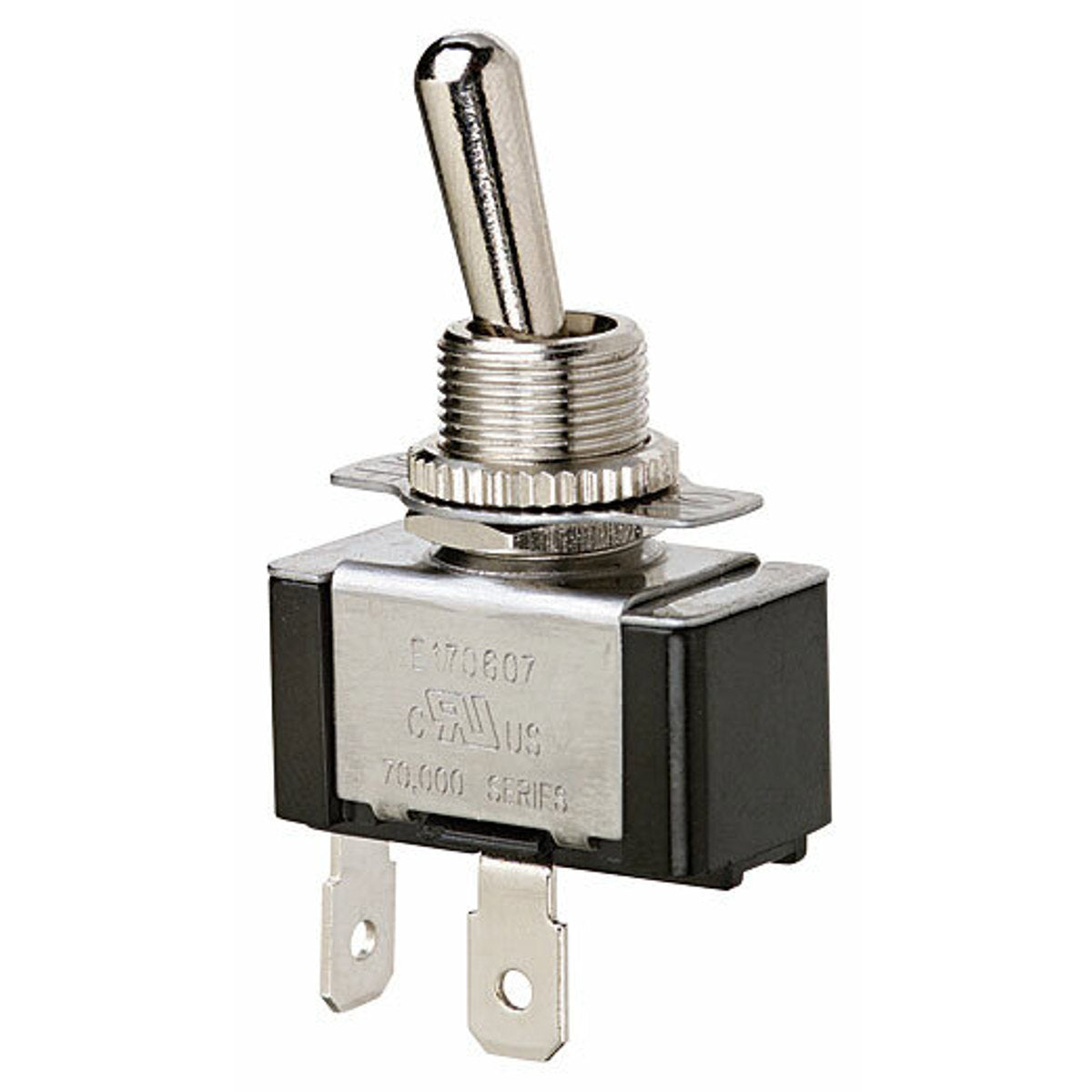

Ideal 774008 Toggle Switch Standard On-Off Voltage Rating 125 227 VAC Number Of Poles 1 Amperage Rating 20 10 AMP

Product Description

The Ideal 774008 Toggle Switch is designed for reliable performance in power tool and motor control applications. This switch features a voltage rating of one hundred twenty-five to two hundred twenty-seven volts alternating current (VAC) and is suitable for a variety of electrical needs.

• SPST action for easy operation
• Factory tested for up to one hundred thousand cycles
• Compatible with spade connection terminals

Product Highlights

This switch is ideal for motor control and power tools. It can operate in a temperature range from thirty-two to one hundred eighty-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Ideal Industries
• Catalog Number: 774008

Technical Specifications

• Voltage Rating: 125, 227 VAC
• Amperage Rating: 20, 10 AMP
• Operating Temperature: 32 to 185 degrees F
• Operating Cycles: 100000 cycles
• Dielectric Strength: 1500 V
• Contact Rating: Factory tested 100000 cycles to 21 AMP 14.8 VDC
• Mounting Hole Diameter: 1/2 inches
• Actuator Type: Toggle
