Product Description

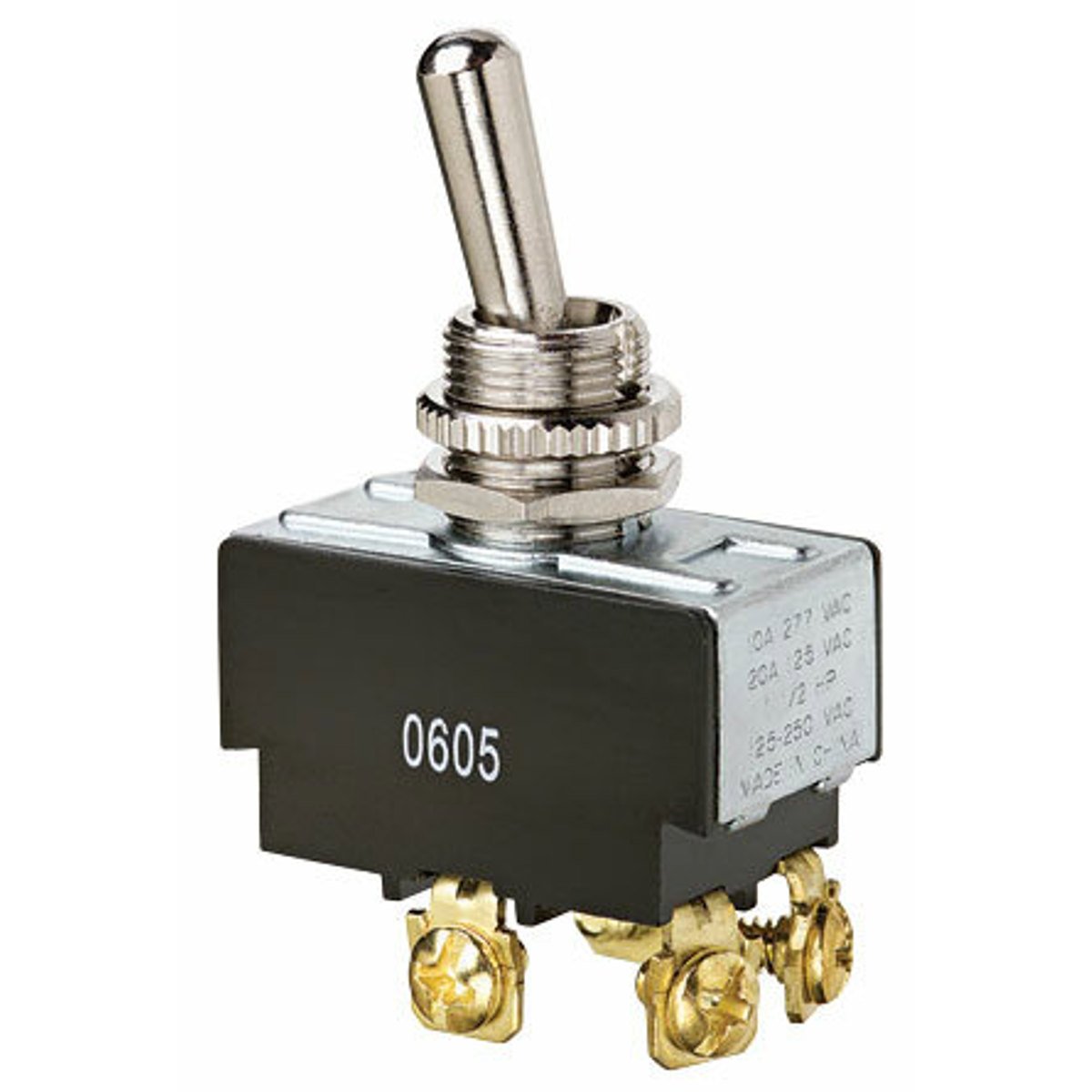

The Ideal 774005 Toggle Switch is designed for heavy-duty use in various electrical applications. This switch operates on a voltage rating of 125 to 227 VAC with a dual pole configuration.
- Designed for power tool and motor control applications
- Rugged solid brass and nickel-plated bushings
- Mechanical life rated at one hundred thousand cycles
Product Highlights
This toggle switch features a dielectrical strength of one thousand five hundred volts and operates within a temperature range of thirty-two to one hundred eighty-five degrees Fahrenheit.
Product Information
Standard Information
-
Brand: Ideal Industries
-
Country of Origin: China
Technical Specifications
-
Catalog Number: 774005
-
Voltage Rating: 125, 227 VAC
-
Amperage Rating: 20, 10 AMP
-
Number of Poles: 2
-
Contact Rating: Factory tested one hundred thousand cycles to twenty-one AMP at fourteen point eight VDC
-
Action Type: DPST
-
Mounting Hole Size: 1/2 inch
-
Operating Temperature: 32 to 185 degrees Fahrenheit
-
Dielectric Strength: 1500 V
