Ideal 774002 sw shrt ball o-f ld

Product Description

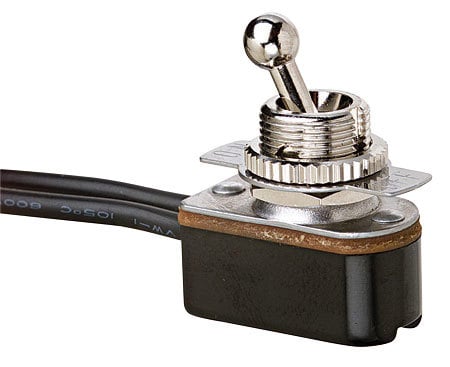

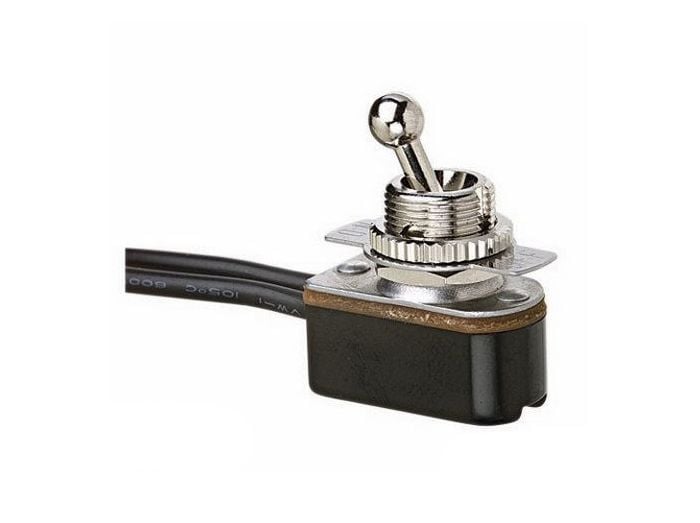

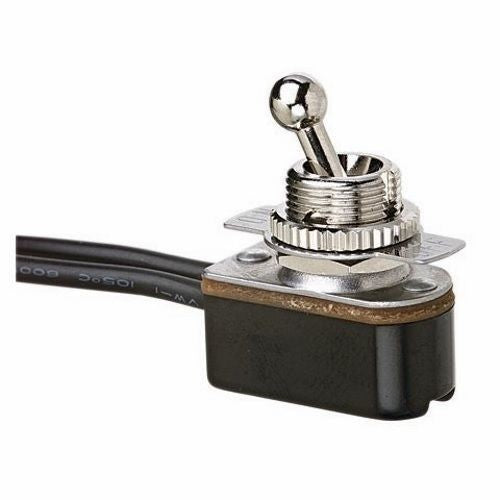

The IDEAL 774002 toggle switch is designed for medium and light-duty applications. This SPST switch has an on-off function and is suitable for 125/250 VAC voltage ratings with amperage ratings of 6/3A. It features wire lead connections with 2 terminals and 18 AWG, 6-inch stripped wires. Ideal for household appliances and equipment.

• Short ball handle
• 1/2 in hole mounting
• ON/OFF (maintained)

Product Highlights

The IDEAL 774002 toggle switch is ideal for household appliances and equipment.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 774002
• Country of Origin: China

Technical Specifications

• IGCC: 5200
• Type: Light/Medium Duty
• Action: SPST
• Actuator: Toggle
• Mounting: 1/2 IN Hole Diameter
• Standard: CSA; C/US RU Listed; RoHS
• Brand Name: Ideal
• Connection: Wire Leads; 2 Terminals; Wire Leads Are 18 AWG; 6 IN Stripped Wire
• Application: For Household Appliances And Equipment
• Manufacturer: IDEAL
• Voltage Rating: 125/250 VAC
• Number Of Poles: 1
• Special Features: Features: Great For Household Appliances And Equipment; Wire Leads Are NO.18 AWG
• HP [Specifications]: 1/3 HP @ 125VAC
• Amps [Specifications]: 6A @ 125VAC, 3A @ 250VAC
• Terminals [Specifications]: Wire Lead
• Contact Form [Specifications]: SPST
• Mechanical Life [Specifications]: 100,000 cycles
• Switch Function [Specifications]: On/Off
• Dielectric Strength [Specifications]: 1500V
• Operating Temperature [Specifications]: 32 F to 185 F (0 C to 85 C)
• Terminal Type: Wire Leads (6 ")
• Product Series: Medium
• Family Series: IDEAL Industries Switches, Medium Series
• Description: TOGGLE, OFF-ON, SPST, 10A, 250VAC
• Hole Size: 0.5 "
• Actuator Type: Bat
• Contacts: SPST
• Circuit Configuration: ON-OFF
• Material: Nickel Plated Brass
• Illuminated: No
• Contact_Configuration: SPST ON/OFF
• Country of Origin: CHN
• Sub_Brand: Ideal
• Operation Method: On/Off
• Contact Material: Metal/Brass
• Finish: Nickel-Plated
• Switch Style: Toggle/Joystick
• MPN: 774002
• Model: 774002
