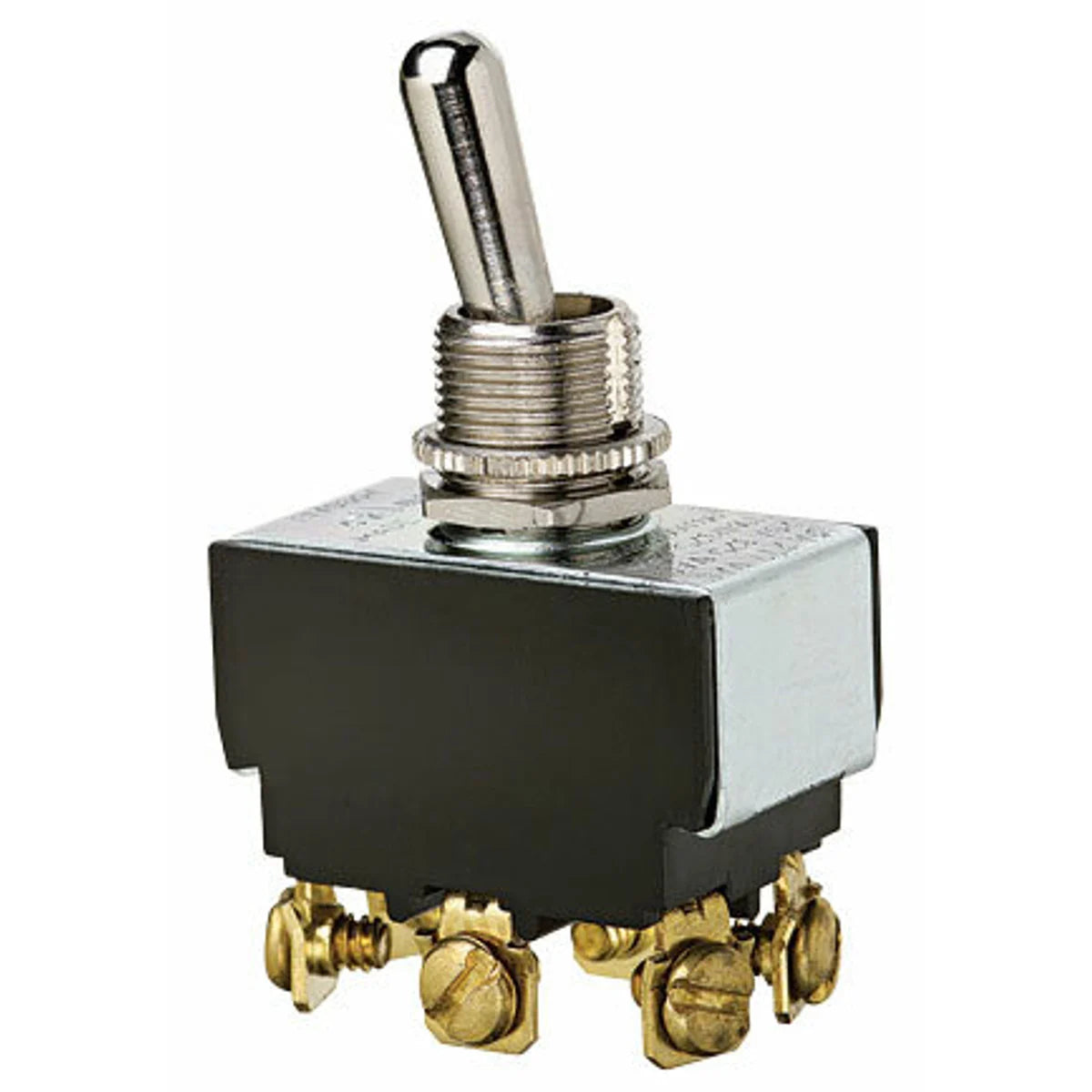

Ideal 774000 Toggle Switch Heavy-Duty (On)-Off-(On) 125 227 VAC

Product Description

Ideal 774000 is a heavy-duty toggle switch designed for various applications including power tools and motor controls. This switch has a novel DPDT action and accommodates voltages between one hundred twenty-five and two hundred twenty-seven VAC. It is built to handle high amperage ratings of twenty and ten amps. The reliable toggle actuator and screw connection with six terminals ensure stable performance in demanding situations.

• Voltage Rating: 125 and 227 VAC
• Amperage Rating: 20 and 10 AMP
• Long mechanical life with up to 100,000 cycles

Product Highlights

This toggle switch is suitable for professional-grade applications. Its robust construction with solid brass and nickel-plated bushings enhances its lifespan.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 774000
• Connection Type: Screw, 6 Terminals
• Contact Rating: Factory tested for 100,000 cycles to 21 AMP at 14.8 VDC
• Operating Temperature: 32 to 185 °F
• Dielectric Strength: 1500 V
• Size: 1.130 inches Length x 0.760 inches Width x 0.800 inches Height
• Number of Poles: 2
• Special Features: Designed for heavy-duty applications, suitable for power tool and motor control applications
