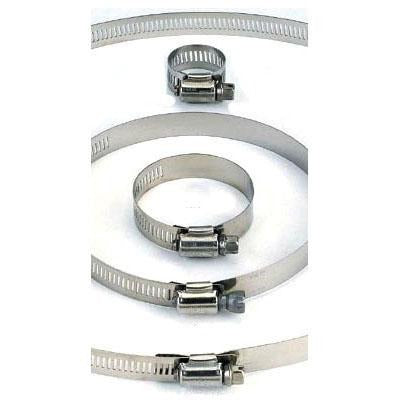

Ideal 630040128 Single Band Stainless Steel Clamp

Product Description

The IDEAL 630040128 is a single-band stainless steel clamp designed for securing pipe connections across a wide clamping range of 2.5 to 8.5 inches. Built from 201/301 stainless steel with a 305 stainless steel screw, this clamp delivers corrosion resistance suited to demanding plumbing and mechanical installations. The 9/16-inch band width and single 5/16-inch bolt design make for straightforward, repeatable installation. Licensed plumbers and pipefitters working on drain, waste, vent, and mechanical piping systems will find this clamp appropriate for both residential and light commercial applications.

This clamp is well suited for no-hub, transition, and coupling connections in plumbing systems where a reliable, broad-range band clamp is required. Its wide diameter range makes it versatile across multiple pipe sizes in a single job. It meets IAPMO and UPC standards, making it code-acceptable on projects requiring listed components in jurisdictions following the Uniform Plumbing Code.

Key Features

• Wide clamping range of 2.5 to 8.5 inches accommodates multiple pipe sizes
• 201/301 stainless steel body provides corrosion resistance for wet environments
• 305 stainless steel screw resists rust and galling during tightening
• Single 5/16-inch bolt design simplifies installation with common hand tools
• 9/16-inch band width distributes clamping load evenly around the pipe
• Listed to IAPMO and UPC standards for code-compliant installations

Compatibility

Designed as an OEM-style single-band clamp for use in plumbing and mechanical piping systems requiring a clamping range of 2.5 to 8.5 inches and compliance with IAPMO and UPC standards.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter following the Uniform Plumbing Code. Shut off the water supply and relieve system pressure before disturbing any existing pipe connection. Use a standard 5/16-inch nut driver or socket wrench to tighten the clamp bolt evenly. Do not overtighten, as excessive torque can deform the band or damage the pipe coupling.

Technical Specifications

• Clamp Type: Single Band
• Clamp Range: 2.5 to 8.5 inches
• Band Width: 9/16 inches
• Number of Bolts: 1
• Bolt Size: 5/16 inches
• Body Material: 201/301 Stainless Steel
• Screw Material: 305 Stainless Steel
• Applicable Standards: IAPMO, UPC

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 630040128
