Ideal 6220Y8G Heavy Duty No-Hub Coupling 4 in

Product Description

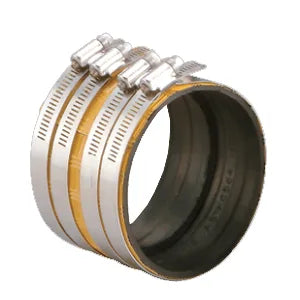

The Ideal 6220Y8G is a 4 inch heavy-duty No-Hub Coupling. Manufactured in the USA, this coupling is similar to the Super Heavy-Duty HD Green Shield, featuring a 5/16 inch hex head screw. It provides a value-engineered, lower cost alternative to the HD Green Shield, maintaining performance standards. The coupling complies with ASTM C564, ASTM C1540, FM 1680 (Class 1 and 2), and holds IAPMO and Canadian Std. Association certification.

• Made in USA.
• Features a 5/16 inch hex head screw.
• Complies with ASTM C564, ASTM C1540, FM 1680 (Class 1 and 2), and carries IAPMO and Canadian Std. Association certification.

Product Highlights

Value-engineered heavy-duty no-hub coupling for plumbing applications, offering certified performance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 6220Y8G
• Country of Origin: USA

Technical Specifications

• Size: 4 in
• Part No.: 6220Y8G
• Installation Torque: 80 in-lbs
• No. Clamps Per Coupling: 4
• Shield Material: 304SS
• Band Material: 304 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 305 SS
• Gasket Material: ASTM C564 Compliant
• Ultimate Torque: 100 in-lbs
