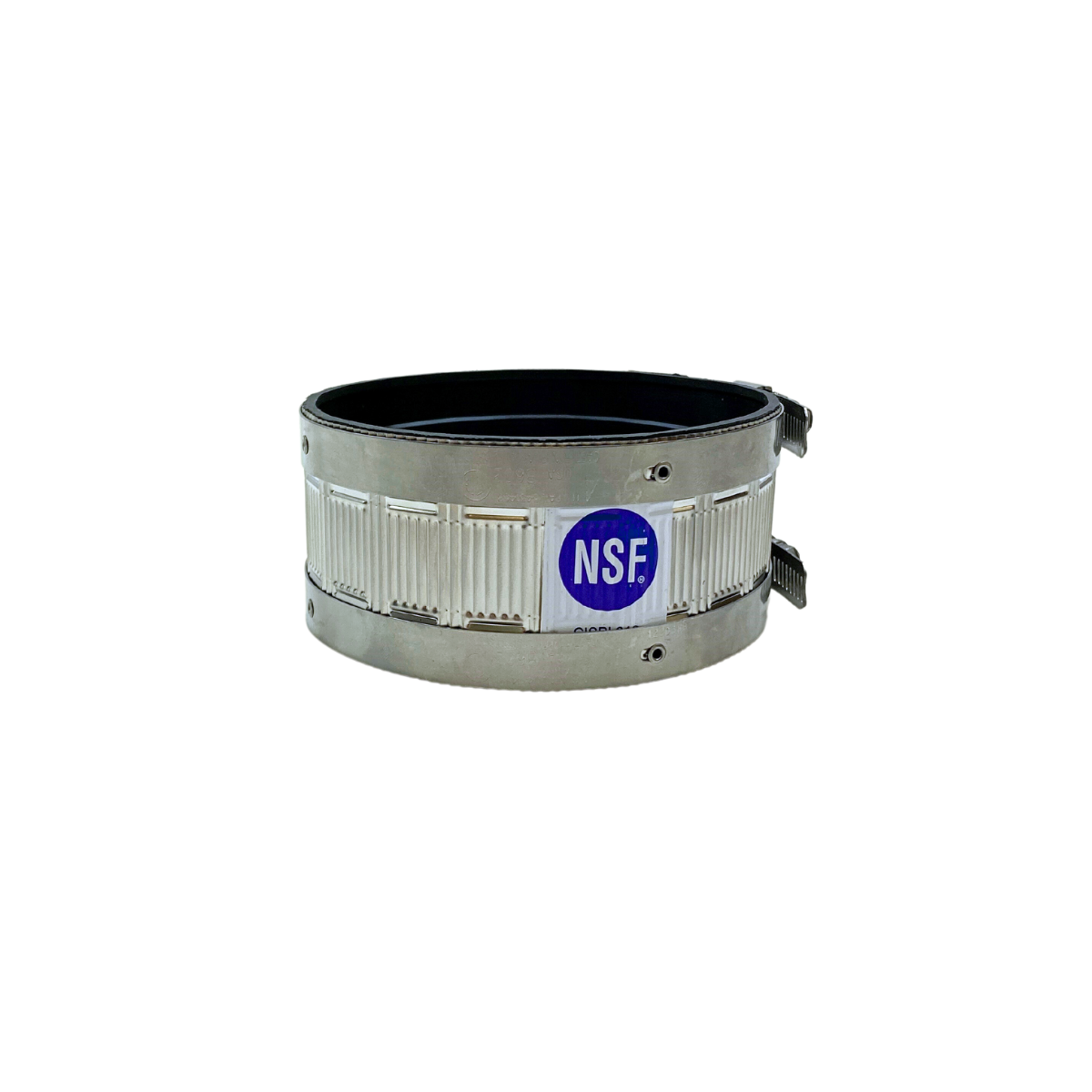

Ideal 6220M8G standard duty no-hub coupling 4 inch mission 1804012

Product Description

The IDEAL 6220M8G Standard Duty No-Hub Coupling is an original, USA-made component designed for connecting cast iron no-hub pipe in drainage, waste, and vent systems. This 4-inch coupling offers a high-quality, low-cost alternative for applications where heavy-duty structural reinforcement is not required. It complies with ASTM C564, CISPI 310, and ASTM C1277, and is IAPMO, Canadian Std Association, and NSF certified, ensuring reliable performance.

• Original no-hub coupling design for reliable pipe connections.
• Manufactured in the USA using high-quality 301 SS shield and band materials.
• Complies with ASTM C564, CISPI 310, and ASTM C1277 standards, with IAPMO, CSA, and NSF certifications.

Product Highlights

Certified standard duty no-hub coupling for 4-inch pipe, ideal for non-structural drainage and waste applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 6220M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
• Size: 4 inches
• Number of Clamps Per Coupling: 2
• Type: Standard No-Hub Domestic Coupling
