Ideal 6218m8g standard duty no-hub coupling 2 inches mission 1802016

Product Description

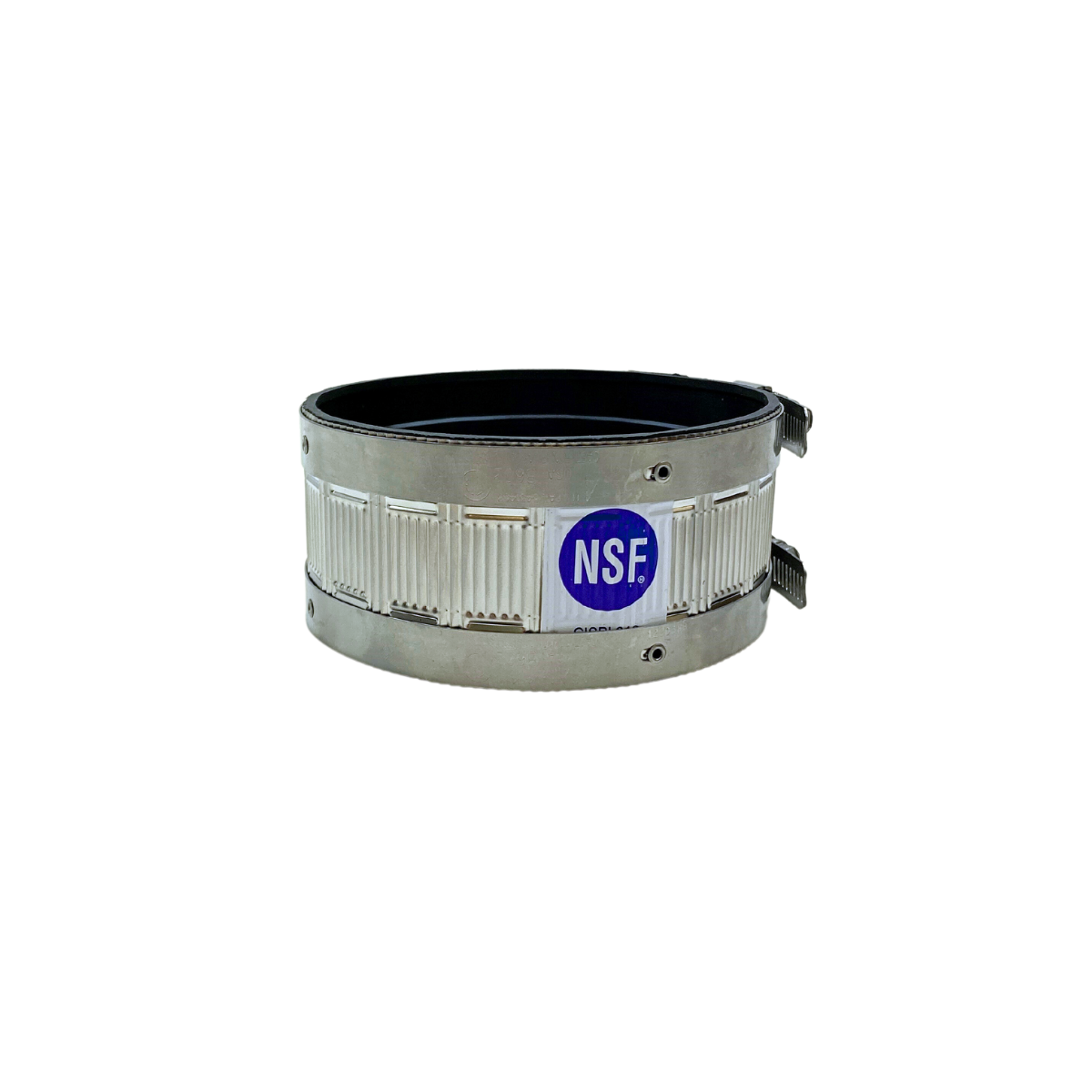

The IDEAL 6218M8G Standard Duty No-Hub Coupling is an original 2-inch no-hub coupling, manufactured in the USA for applications not requiring heavy-duty structural reinforcement. It complies with ASTM 564, CISPI 310, and ASTM C1277 standards. Constructed with 301 SS shield, band, and housing, 305 SS screws, and an ASTM C564 compliant gasket, it ensures durability. Installation requires 60 in-lbs torque, with an ultimate torque of 75 in-lbs, utilizing two clamps. This coupling is ideal for plumbing and drainage systems.

• Made in USA with domestically produced components.
• Complies with ASTM 564, CISPI 310, and ASTM C1277 standards.
• Carries IAPMO, Canadian Std Association, and NSF certifications.

Product Highlights

Durable 2-inch standard duty no-hub coupling, made in USA, certified to industry standards for plumbing and drainage.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 6218M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
• Size: 2 inches
• Number of Clamps Per Coupling: 2
• Manufacturer Part Number: 6218M8G
