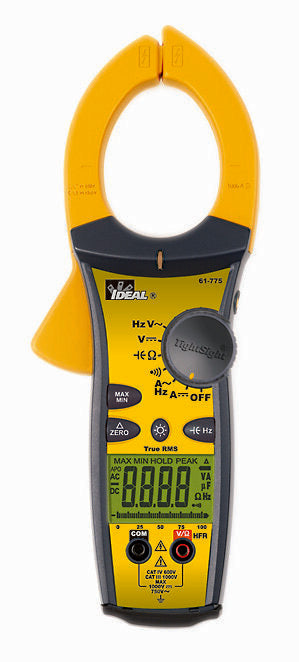

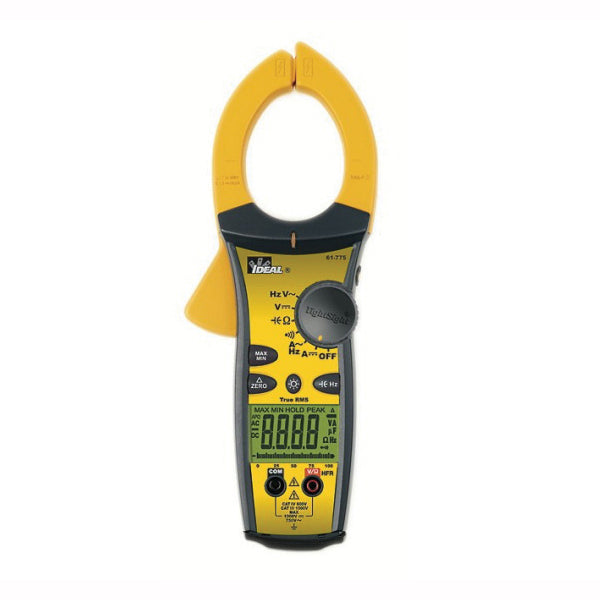

Ideal 61-775 Clamp Meter TightSight 770 Series With TRMS Capacitance Frequency Resistance

Product Description

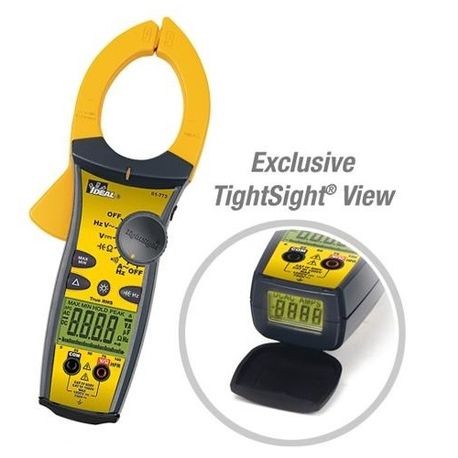

The Ideal 61-775 is a Clamp Meter designed for measuring AC and DC voltage, current, and resistance. The meter features a True RMS function that offers accurate measurements even under noisy conditions. Ideal for both industrial and commercial applications, it provides a second TightSight display for easy reading at a distance.

• True RMS for accurate current measurement
• Backlit display for readability in low light
• Audible and visual alerts for hazardous voltages

Product Highlights

This device is versatile and caters to various electrical testing needs. It includes features like peak hold, min/max record, and data hold for effective monitoring.

Product Information

Standard Information

• Brand: Ideal
• MPN: 61-775

Technical Specifications

• Capacity: 1000 A AC/DC
• Voltage Rating: 0 to 750 VAC, 0 to 999 VDC
• Resistance: 0 to 999.9 OHM
• Capacitance: 0 to 999.9 MFD
• Frequency: 20 to 400 Hz
• Display: 4 Digit LCD with 9999 counts
• Dimensions: 10.600 inches height x 4.100 inches width x 1.900 inches depth
• Battery Life: 100 hours continuous with one 9V battery
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
