Product Description

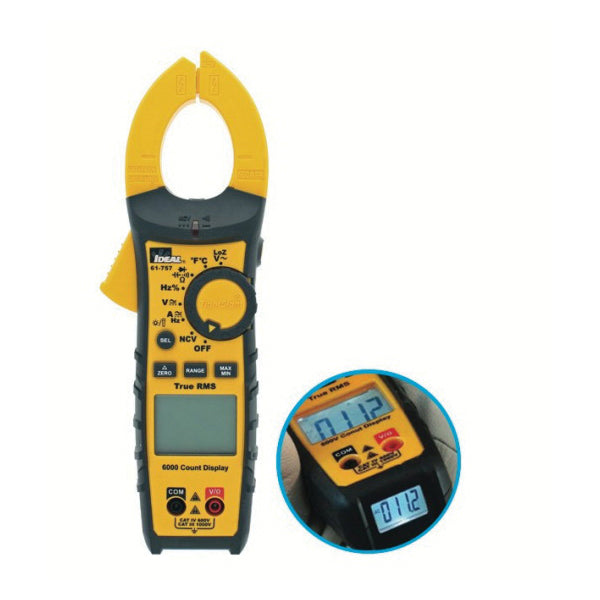

The IDEAL 61-757 is a digital clamp meter designed for measuring AC and DC current up to six hundred amps. This tool features a patented TightSight display that enhances measurement visibility aiming to improve safety and ease of use. With a compact jaw size of one point four inches, it is suitable for various applications in electrical testing.
- True RMS for accurate current measurement
- Built-in flashlight for use in low light
- Non-contact voltage detection feature
Product Highlights
Designed specifically for electrical professionals, this meter integrates various functions that can measure voltage, current, frequency, resistance, and temperature.
Product Information
Standard Information
-
Manufacturer: Ideal Industries
-
Product Type: Clamp Meter
Technical Specifications
-
MPN: 61-757
-
Electrical Ratings: 600 VAC, 600 A
-
Resistance: 60 MOhm
-
Jaw Capacity: 1.4 in
-
Display Type: Backlit LED
-
Frequency Rating: 10 to 9999 Hz
-
AC Current Accuracy: +/-2% + 9
-
Voltage Accuracy: +/-1.5% + 5
-
Power Source: (3) 1.5 V AAA Battery
-
Operating Temperature: -40 to 1832 deg F
-
Dimensions: 9.9 in L x 2.8 in W x 1.8 in H
-
Weight: 1.68 lb
