IDEAL 61-747 METER CLAMP 600 VAC 400 A 40MOHM 1.4IN

Product Description

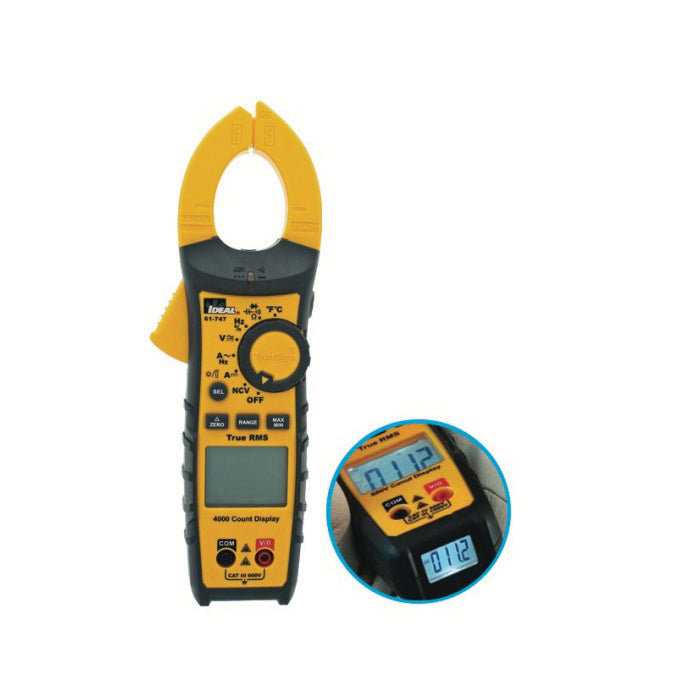

The IDEAL 61-747 is a digital clamp meter designed for electrical measurements. This model offers a voltage rating of six hundred volts alternating current (VAC) and a current rating of four hundred amps (A). It includes features that enhance visibility and safety, such as a backlit display and a built-in flashlight. This meter is suitable for HVAC technicians, electricians, and maintenance professionals.

• Measures AC/DC current and voltage accurately.
• True RMS capability for precise readings on non-linear signals.
• Patented display design eliminates the need to bend or twist wires.

Product Highlights

This clamp meter is designed for ease of use in various lighting conditions. Its unique display allows for easy viewing without compromising safety.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 61-747

Technical Specifications

• Count: 4000
• Voltage Rating: 600 VAC
• Current Rating: 400 A
• Resistance: 40 MOhm
• Frequency Rating: 10 to 9999 Hz
• Display Type: Backlit LED
• Jaw Capacity: 1.4 in
• Power Source: (3) 1.5 V AAA Battery
• Safety Rating: Cat III 600 VAC
• Operating Temperature: -40 to 1832 degrees F
