Product Description

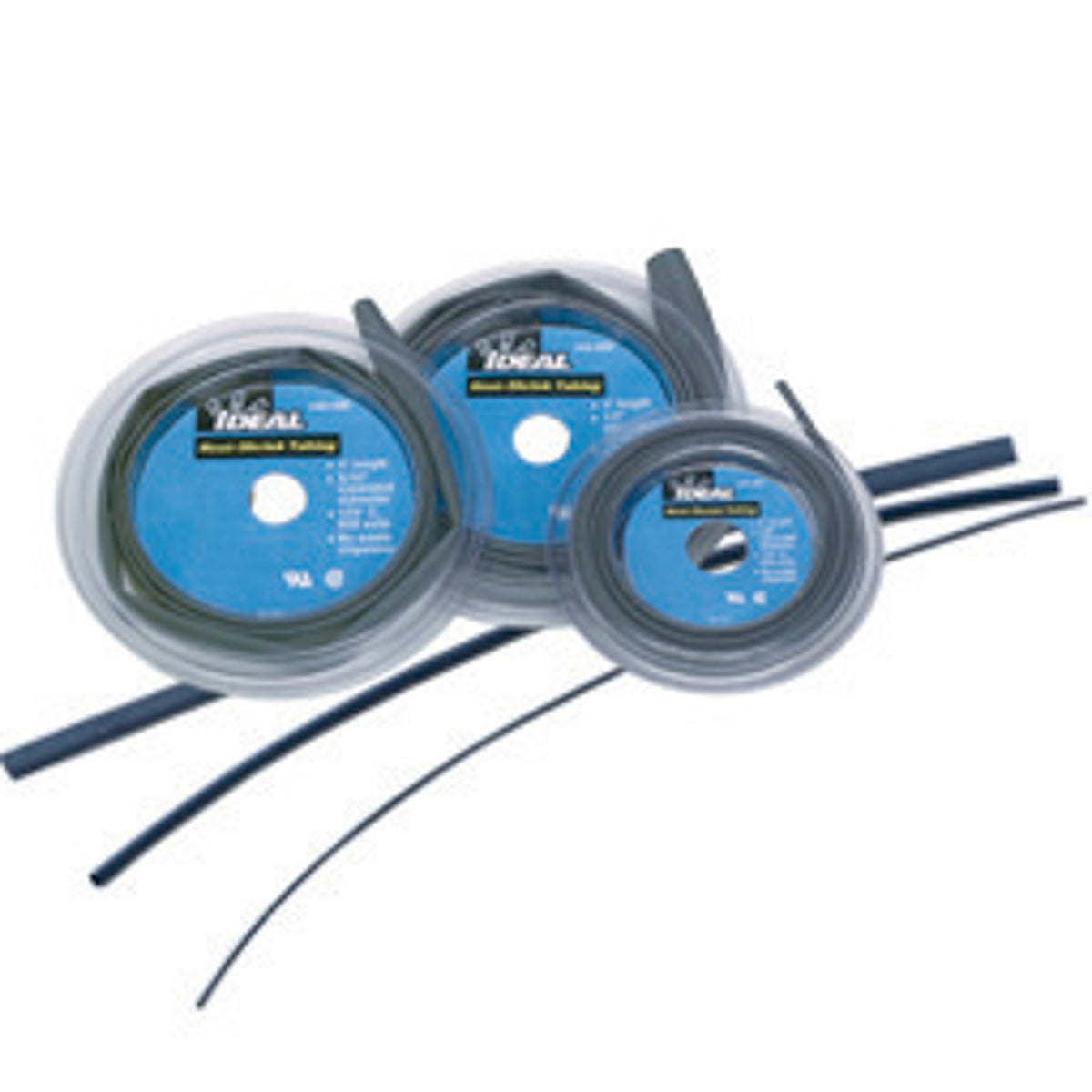

The Ideal Heat Shrinkable Tube, MPN 46-609, is designed for effective electrical insulation of components and splices. This thermo-shrink tubing is suitable for various applications in electrical work and wire management. The polyolefin construction offers flexibility and high strength, ensuring reliable performance under harsh conditions.
- Manufactured from polyolefin material for electrical insulation
- Meets UL 224 standards for quality and safety
- Temperature rating from negative fifty-five to positive one hundred twenty-five degrees Celsius
Product Highlights
This tubing is ideal for bundling wires, providing excellent protection and resilience. It features a 2:1 shrink ratio and is suitable for wire sizes ranging from 2 AWG to 250 KCMIL.
Product Information
Standard Information
-
Brand: Ideal Industries
-
UPC: 783250466092
Technical Specifications
-
Catalog Number: 46-609
-
Inside Diameter Expanded: 0.807 inches
-
Recovered Diameter: 0.374 inches
-
Thickness: 0.027 inches
-
Shrink Temperature: 70 degrees Celsius
-
Voltage Rating: 600 volts
-
Continuous Operating Temperature: -55 to 125 degrees Celsius
-
Shrink Ratio: 2:1
