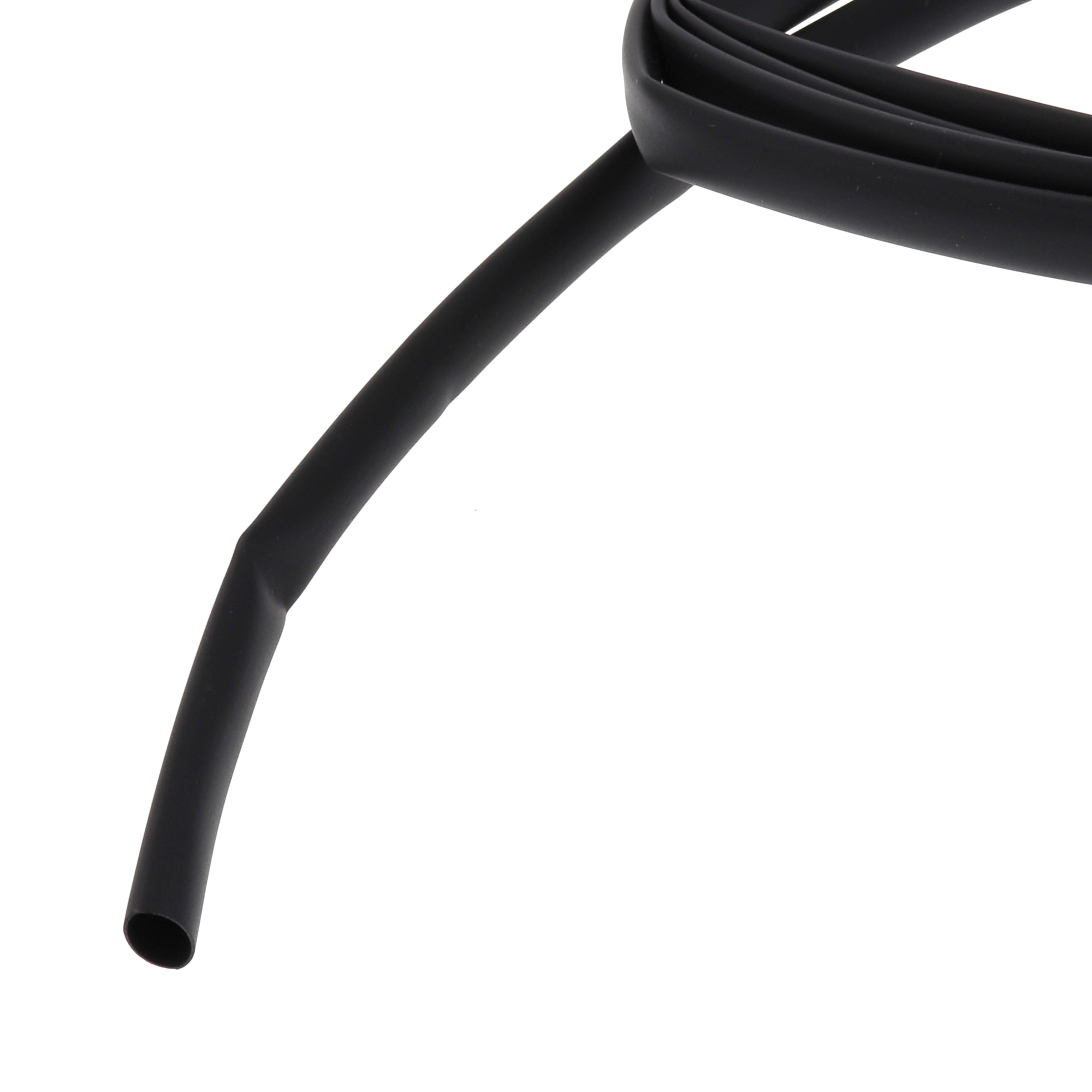

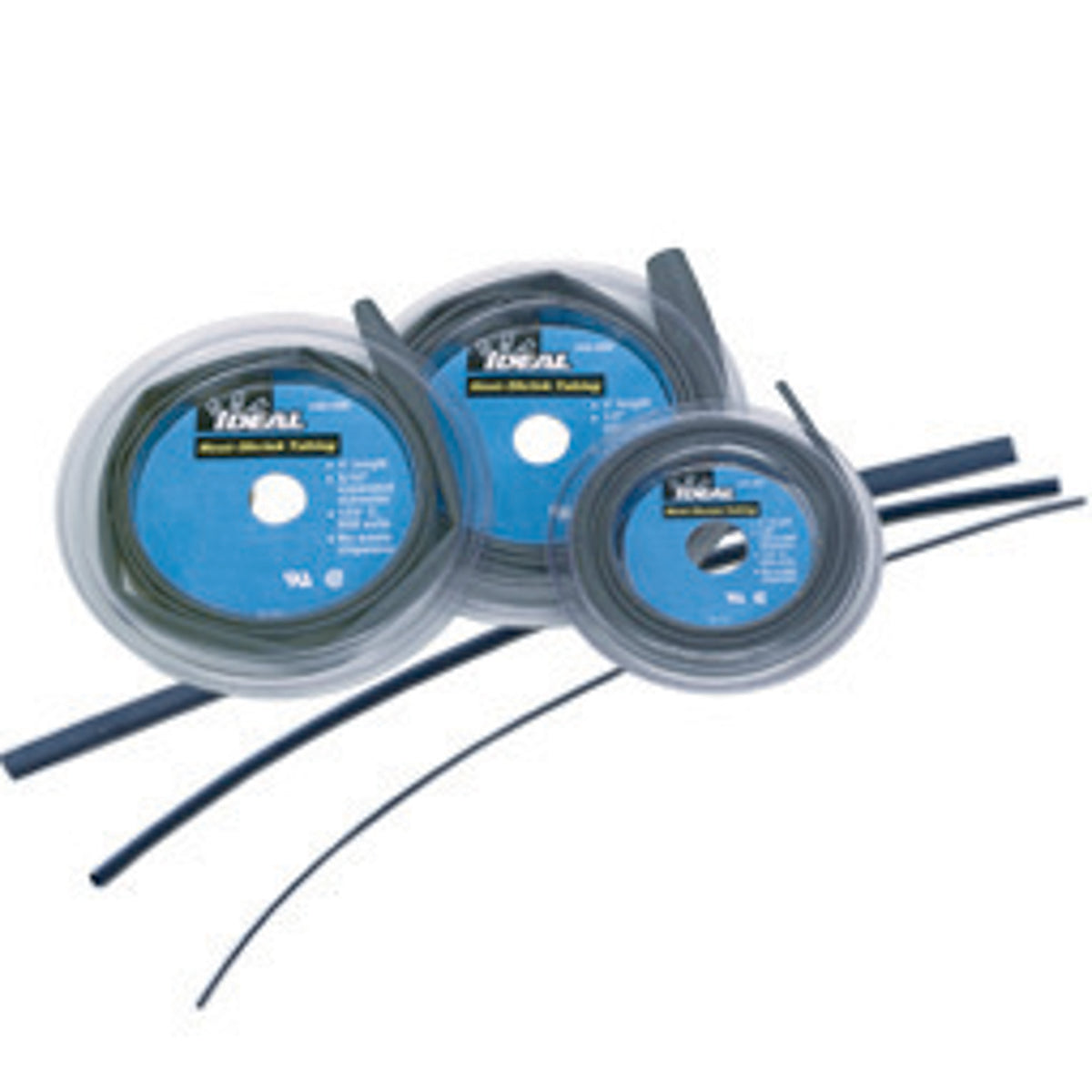

Ideal 46-604 Thermo-Shrink Thin-Wall Heat Shrink Dis 2:1 (4 Ft) Replacement MPN

Product Description

The Ideal Industries 46-604 is a thermo-shrink thin-wall heat shrink tubing designed for efficient electrical insulation and protection of in-line components and disconnect terminals. This product effectively bundles wires for flexible light-duty harnesses.

• Made from polyolefin material for durability
• Meets UL 486D standards for heat resistance
• Supports cables from 20 to 14 AWG

Product Highlights

This heat shrink tubing offers a shrink ratio of 2:1, ensuring a tight fit. It provides high flame resistance and is compliant with RoHS standards.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Part Number: 46-604

Technical Specifications

• Catalog Number: 46-604
• Material: Polyolefin
• Size: Four Feet
• Inside Diameter: 3/16 inches
• Thickness: 0.020 inches
• Shrink Ratio: 2:1
• Operating Temperature: -55 to 125 degrees Celsius
• Minimum Shrink Temperature: 70 degrees Celsius
• Electrical Rating: VW-1 600V
