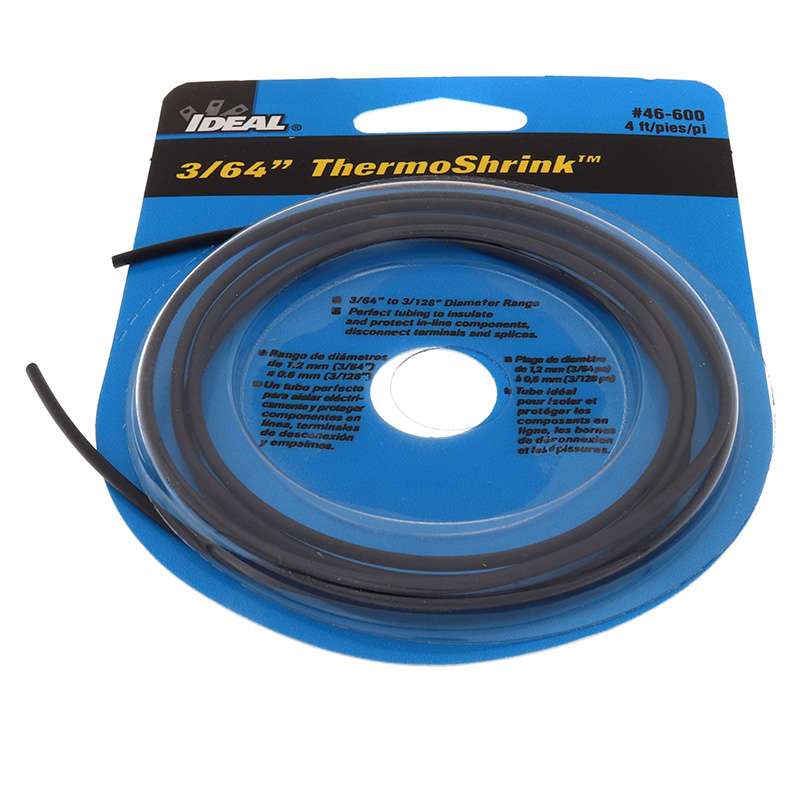

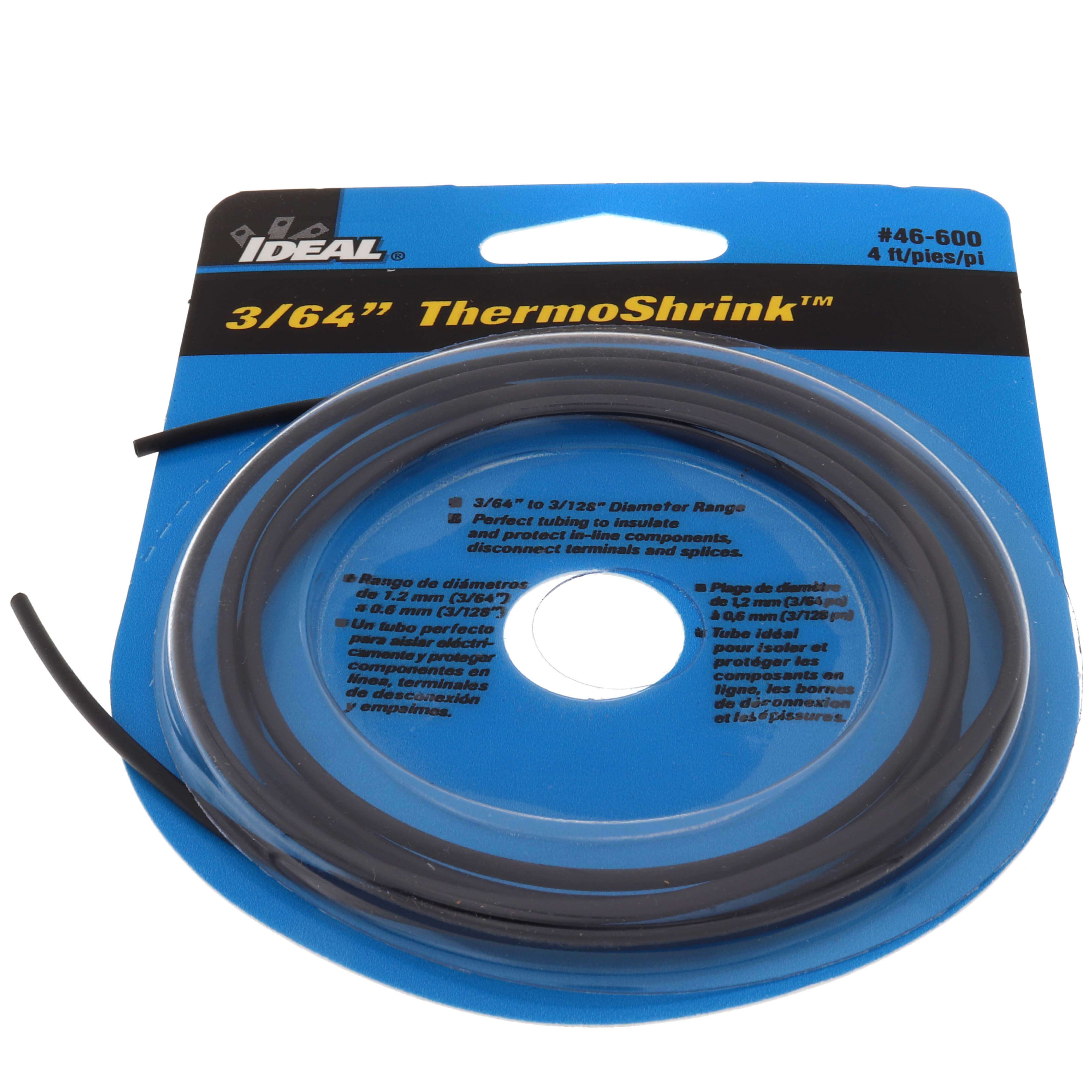

Ideal 46-600 Heat Shrinkable Tube Thermo-Shrink Thin-Wall 4 FT

Product Description

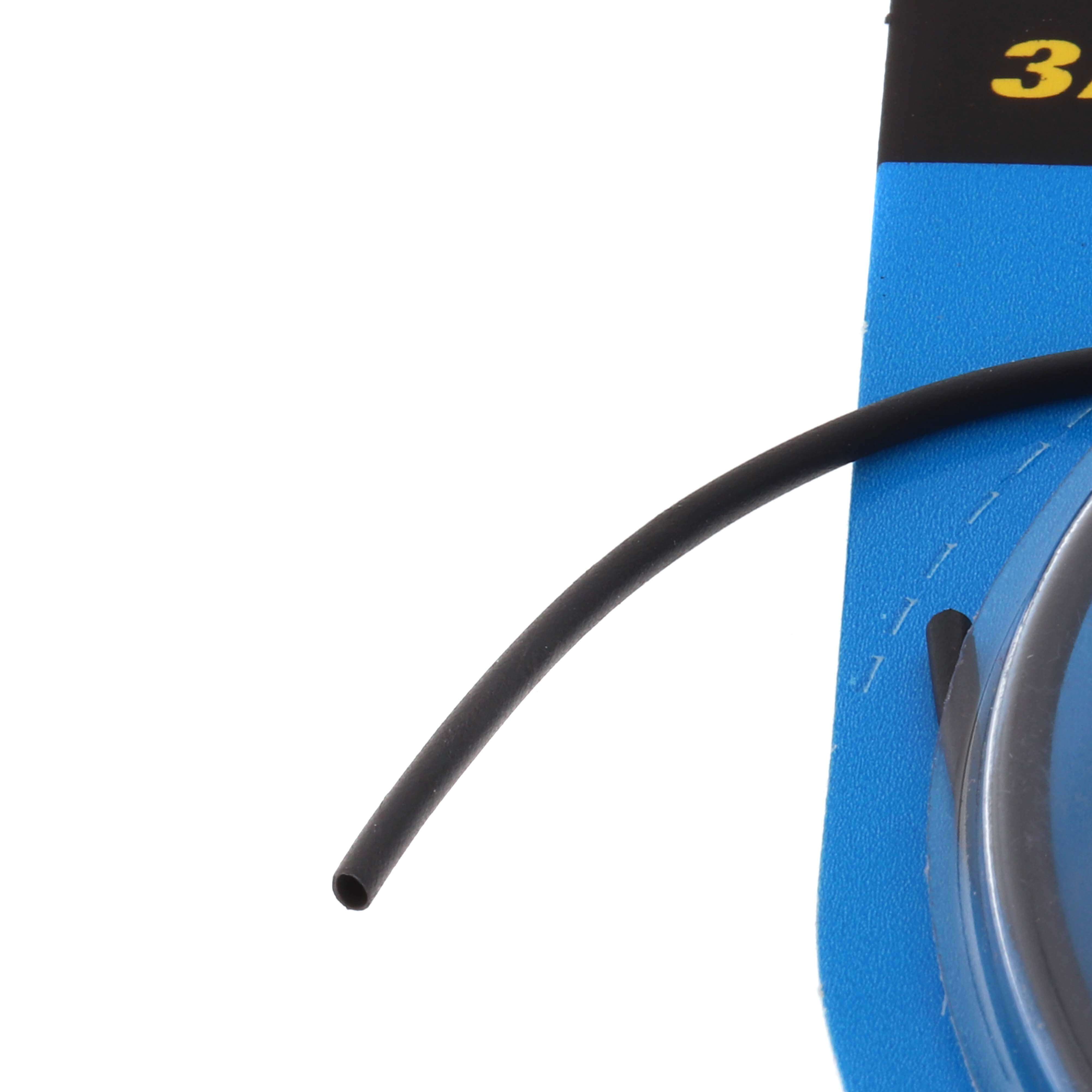

The IDEAL 46-600 heat shrinkable tube, part of the Thermo-Shrink series, is designed to electrically insulate and protect in-line components, disconnect terminals, and splices. Constructed from polyolefin material, it offers high strength and resilience. This thin-wall tubing is suitable for bundling wires in flexible, light-duty harnesses and is resistant to common fluids and solvents.

• Electrically insulates and protects in-line components
• Suitable for bundling wires in flexible, light-duty harnesses
• Flame-retardant and resistant to common fluids and solvents

Product Highlights

This heat shrink tubing meets UL 486D 125C VW-1 600V standards and is RoHS compliant and UV resistant.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 46-600
• Country of Origin: China

Technical Specifications

• Catalog Number: 46-600
• Manufacturer: Ideal Industries
• Brand: IDEAL
• Sub Brand: Thermo-Shrink®
• Country of Origin: China
• Made in USA: No
• Item Type: Thin-Wall
• Length: 4 Ft
• Thickness: 0.013 IN
• Shrink Ratio: 2:1
• Sleeve Type: Heat Shrink
• Material: Polyolefin
• Dielectric Strength: 20kV/mm
• Maximum Operating Temperature: +125°C
• Minimum Operating Temperature: -55°C
• Voltage Rating: 600 V
• Cable Size: 22 to 18 AWG
• Wall Type: Thin
• Shrink Temperature: 70 Deg C
• Minimum Expanded Diameter: 0.063 Inch
• Maximum Recovered Diameter: 0.024 Inch
• Temperature Rating: -55 to 125 Deg C
• Approval: UL 224, 486D, UL (Canada and US)
• Applicable Standard: ASTM D638/D150/D876
• Tensile Strength: 14 MPA
• Volume Resistance: 1014 Ohm CM
• Longitudinal Shrinkage: 0+/-5 Percent
• Eccentricity: 30 Percent
• Normal Size: 3/64 Inch
• Minimum Shrink Temperature: 158 °F
• UV Resistant: Yes
• Extended Length: 4 ft
• Inner Diameter: 3/64 in.
