Ideal 46-384 Heat Shrink End Cap 500-1000 Mcm

Product Description

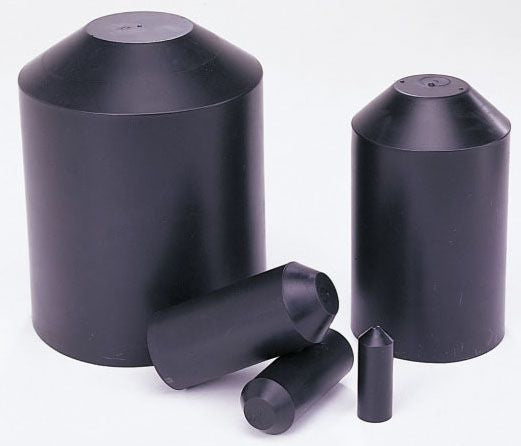

The IDEAL 46-384 is a heat shrink end cap designed to seal and insulate the cut ends of large-gauge conductors ranging from 500 to 1000 MCM. Applied with a heat gun, the cap shrinks tightly around the conductor end to create a moisture-resistant, insulated termination. This type of end cap is standard practice when dead-ending large cable runs in commercial and industrial electrical installations. Electricians use it to protect exposed conductor ends from moisture intrusion, oxidation, and accidental contact during and after installation.

The 46-384 is suited for large-conductor applications in commercial construction, industrial facilities, utility work, and infrastructure projects where 500 to 1000 MCM cable is common. Typical uses include sealing spare conductors in pull boxes, protecting dead-ended feeders, and capping cable ends during phased construction. The heat shrink construction provides a durable, long-lasting termination without the need for tape buildup or mechanical end caps.

Key Features

• Fits conductor sizes from 500 MCM to 1000 MCM
• Heat shrink construction bonds tightly to the conductor end when heated
• Seals against moisture and contaminants to reduce oxidation at the termination point
• Provides insulated protection on exposed dead-ended or spare conductors
• No tape wrap required — single-piece installation

Compatibility

Designed for use on copper or aluminum conductors sized 500 MCM through 1000 MCM in commercial and industrial electrical installations.

Installation Notes

Installation is performed by licensed electricians following applicable NEC guidelines. De-energize and lock out the circuit before handling any conductor end. Slide the cap fully over the conductor end and apply uniform heat with a heat gun, working from the closed end outward, until the cap has shrunk evenly and seated firmly. Avoid using an open flame, as uneven heat can damage the cap or leave an incomplete seal.

Technical Specifications

• Conductor Range: 500-1000 MCM
• Weight: 0.8 pounds
• UPC: 78325046384

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 46-384
