Product Description

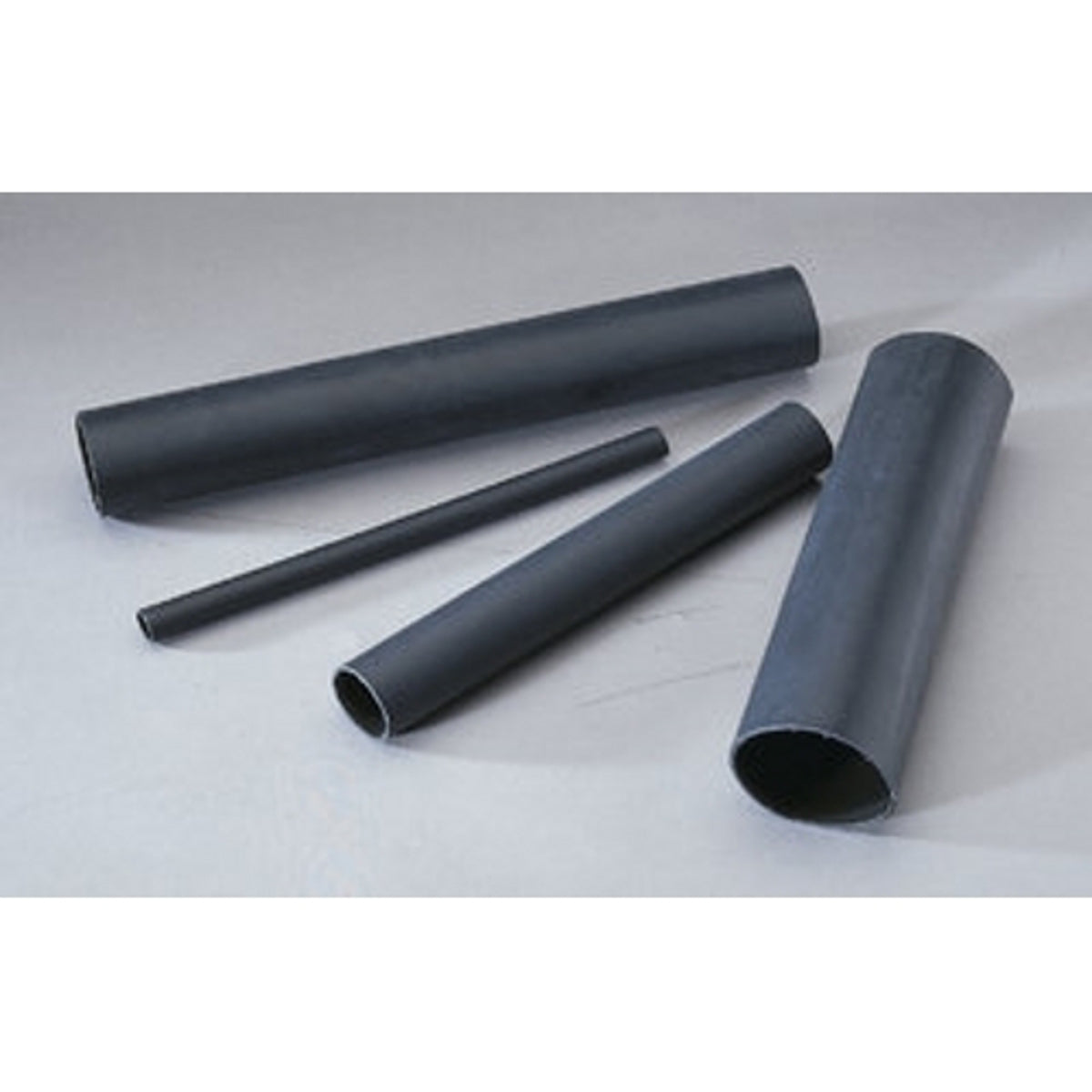

Ideal 46-372 is a heavy-wall heat shrink tubing designed for insulation and protection in electrical applications. This tubing features a standard shrink ratio of three to one and is made from irradiated cross-linked polyolefin. It is suitable for above-grade, underground, and underwater environments.
- Diameter: Expanded inner diameter is two inches, nominal recovered inner diameter is zero point six three inches.
- Temperature: Continuous operating temperature range is from negative fifty-five to one hundred ten degrees Celsius.
- Safety Compliance: Meets various standards including UL 486D, CSA C22.2 No. 198.2, and IEEE 383 Vertical Flame Test.
Product Highlights
This heat shrink tubing provides maximum flame retardancy and is rated for six hundred volts of continuous use, making it ideal for a wide range of electrical applications.
Product Information
Standard Information
-
Manufacturer: Ideal Industries
-
Brand: Ideal
Technical Specifications
-
Catalog Number: 46-372
-
Thickness: zero point one six inches
-
Length: forty-eight inches
-
Dielectric Strength: five hundred volts per mil (twenty kilovolt minimum)
-
Volume Resistivity: one thousand thirteen ohm-centimeters minimum
-
Ultimate Elongation: six hundred percent minimum
-
Low Temperature Flexibility: negative fifty-five degrees Celsius
-
Water Absorption: zero point five percent
